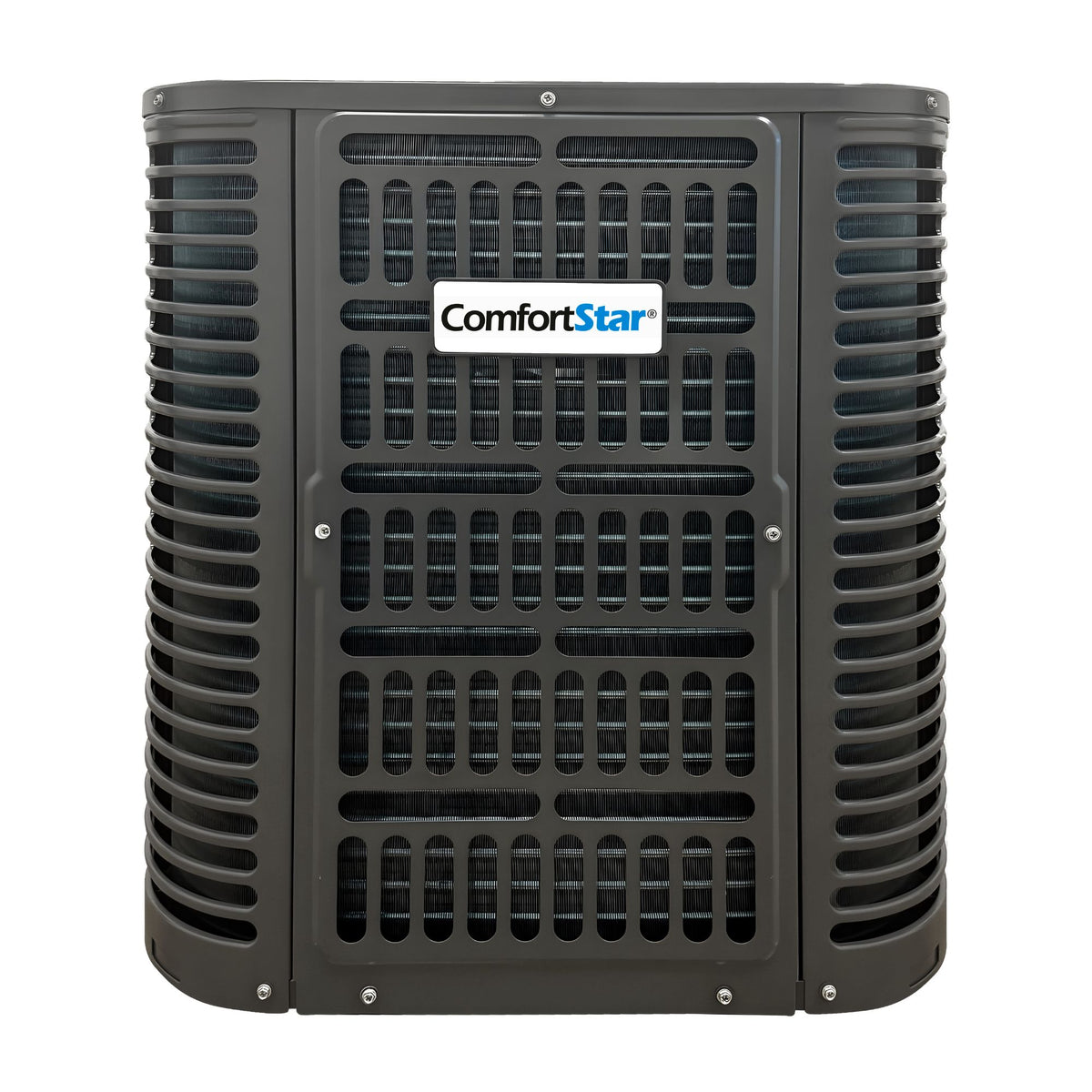

Front view of the ComfortStar 60,000 BTU BAH10 outdoor heat pump condenser with dark gray protective grille. Front view of the ComfortStar 60,000 BTU BAH10 outdoor heat pump condenser with dark gray protective grille.
r32-badge
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

60K BAH10 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

60K BAH10 Heat Pump Top Discharge Condensing Unit | Up to 14.3 SEER2

SKU: BAH10-60-15

BARCODE: BAH10-60-15

PRODUCT TYPE: Condensing Units

Product Catalog

View full details
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 29-9/64x29-9/64x32-7/8
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 2,950
Tonnage: 5
dB(A) Noise Level (Hi / Mi / Lo): 60
SEER2: 14.3
EER: 11.7
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 53,000
Cooling Capacity (BTU): 54,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 182/193

Features

- 54,000 BTU Cooling Capacity: Delivers 54,000 BTU/h of cooling at 95°F for the largest BAH10 applications.
- Strong High-Ambient Output: Maintains 36,500 BTU/h of cooling capacity at 120°F.
- 53,000 BTU Heating Capacity: Provides powerful heat-pump heating for large comfort demands.
- Wide Outdoor Operating Range: Supports cooling from 23°F to 125°F and heating from -4°F to 86°F.
- On-Off Scroll Compressor: Designed for reliable, efficient performance.
- BLDC Outdoor Fan Motor: Helps improve efficiency and extend service life.
- R32 Refrigerant: Uses R32 refrigerant with a 112.9 oz. factory charge.
- Refrigerant Leak Detection System: Helps protect the system and enhance safety.
- Refrigerant-Cooled PCB Design: Supports superior heat dissipation and long-term durability.
- Flexible Thermostat and Control Options: Compatible with 24VAC thermostats, optional wired controls, and optional Wi-Fi controls.
- Extended Installation Reach: Supports up to 246 ft. of piping and 98 ft. of elevation difference.
- 60 dB(A) Sound Pressure Level: Built for controlled outdoor operation at maximum BAH10 capacity.
