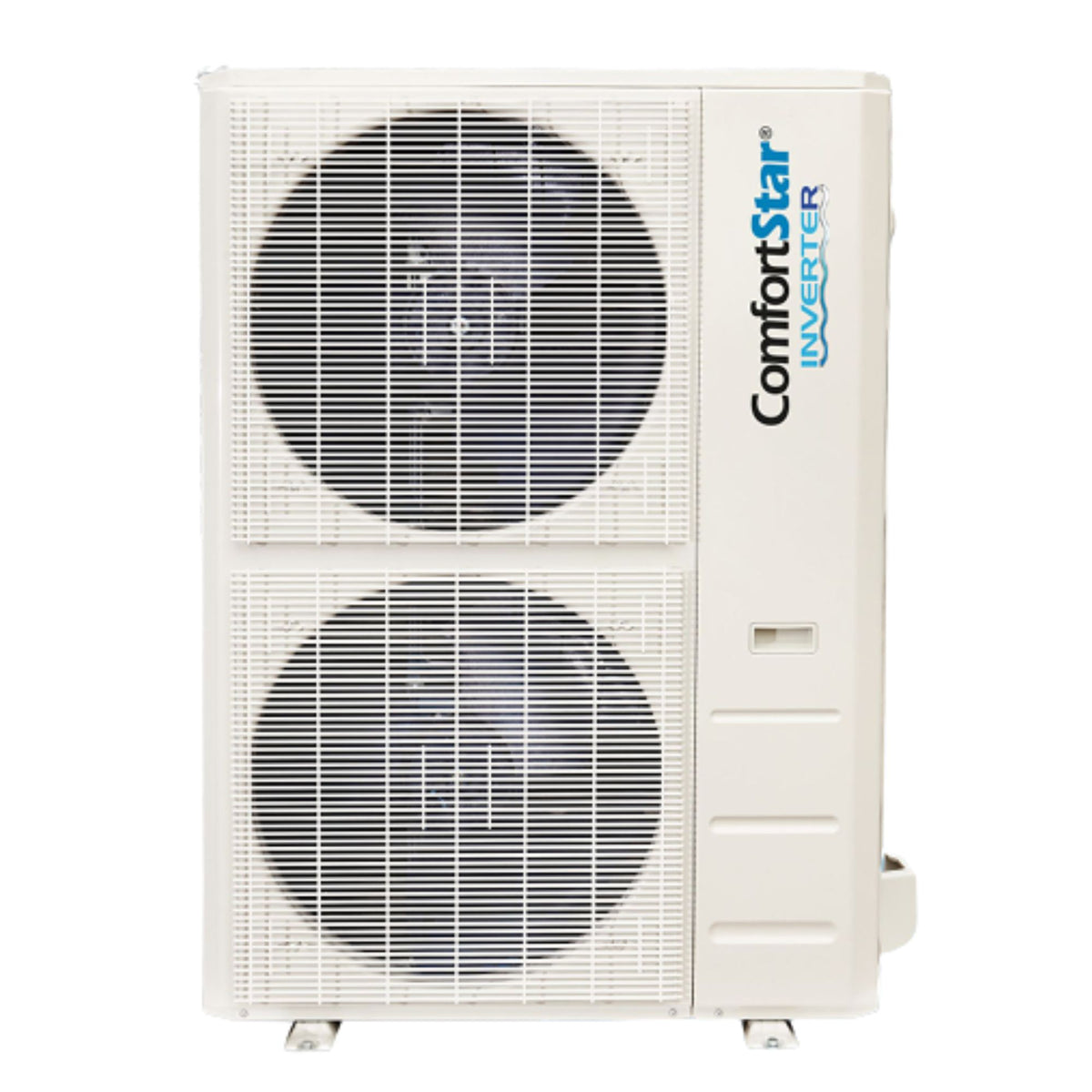

ComfortStar CPH3 60,000 BTU side-discharge heat pump condensing unit. ComfortStar CPH3 60,000 BTU side-discharge heat pump condensing unit.
r454b badge
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

60K CPH3 CONDENSING UNIT - HEAT PUMP SIDE DISCHARGE - UP TO 19 SEER2

60K CPH3 CONDENSING UNIT - HEAT PUMP SIDE DISCHARGE - UP TO 19 SEER2

SKU: CPH3-60CD(O)

BARCODE: CPH3-60CD(O)

PRODUCT TYPE: Condensing Units

Free Lift Gate

Expedited Shipping

System Gross Weight: 275.13 (lbs.)



Click Here to View the Product Catalog



View full details
Refrigerant Type: R454B
Unit Size - Inches (W x D x H): 37.48x16.34x52.48
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 2,648.7
Tonnage: 5
dB(A) Noise Level (Hi / Mi / Lo): 64.5
SEER2: 19
EER: 12
Operating Mode: Heating and Cooling
Heat Capacity (BTU): 56,000
Cooling Capacity (BTU): 54,000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 242.95/275.13

Features

• 54,000 BTU Cooling Capacity
• 56,000 BTU Heating Capacity
• Side-Discharge Heat Pump Condensing Unit
• 208/230V, 60Hz, Single-Phase Power Supply
• R454B Refrigerant
• Heating Operation Down to -22°F
• 24V / 485 Communication
• Electronic Expansion Valve (EXV)
• Requires a Compatible Matched Indoor Unit
