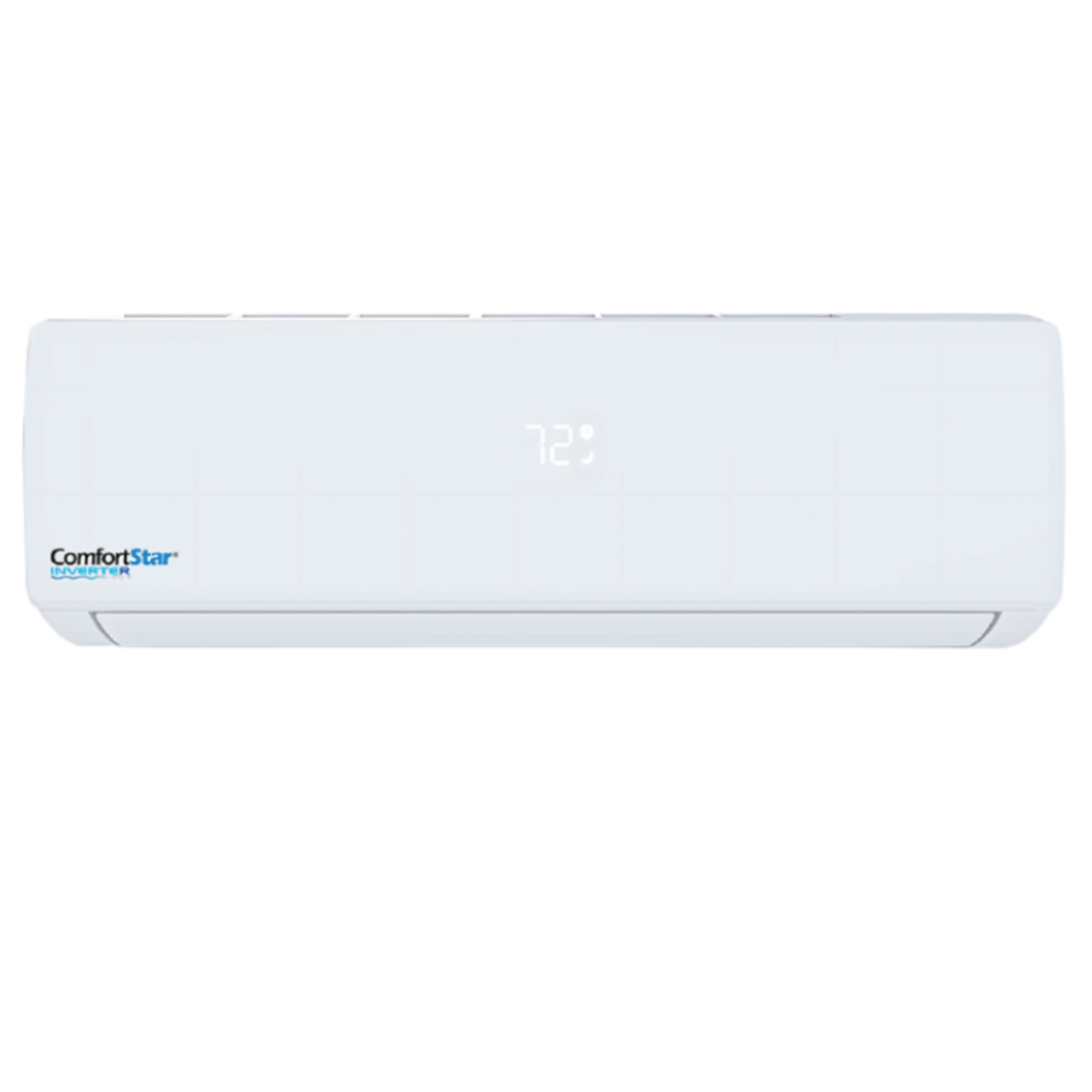

9K CH20-32 HIGHWALL UNIT - FOR C32-MZ MULTIZONE

9K CH20-32 HIGHWALL UNIT - FOR C32-MZ MULTIZONE

SKU: CH20-09CD-32(I)

BARCODE: CH20-09CD-32(I)

PRODUCT TYPE: Highwall Units

Free Lift Gate

Expedited Shipping

View full details
Refrigerant Type: R32
Unit Size - Inches (W x D x H): 31.93*11.5*7.99
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 312/282/265
Tonnage: 0.75
dB(A) Noise Level (Hi / Mi / Lo): 39/34/30
SEER2: Refer to Outdoor C32-MZ Multi-zone Unit
EER: Refer to Outdoor C32-MZ Multi-zone Unit
Operating Mode:
Heat Capacity (BTU): 9000
Cooling Capacity (BTU): 9000
Placement: Indoor Highwall Unit
Indoor Unit Net/Gross Weight (lbs.): 18.7/24.2

Features

The ComfortStar CH20-09CD-32(I) is a 9,000 BTU high-wall indoor unit designed for compatible C32-MZ multi-zone systems. It provides cooling, heating, dehumidification, and adjustable airflow for individualized comfort in a selected zone. Please, see the Combination Table to confirm compatible outdoor units and system configurations.

FEATURES:
- Efficient Comfort for Smaller Rooms: Delivers 9,000 BTU of cooling and heating capacity, ideal for bedrooms, home offices, and other compact spaces.
- Powerful Turbo Cooling: Quickly brings your room to a comfortable temperature when you need fast relief.
- Independent Dehumidification: Removes up to 2.32 pints of moisture per hour to help create a drier, more comfortable indoor environment.
- Quiet Operation: Operates as low as 28 dB(A) in Mute mode for quieter everyday comfort.
- Energy-Saving ECO Mode: Helps maintain a comfortable setting while reducing unnecessary energy use.
- Smart Sleep Mode: Automatically adjusts operation through the night for more comfortable rest.
- Automatic Mode: Adjusts system operation automatically to help maintain your selected temperature.
- Auto Restart: Restores previous settings after a power interruption.
- Louver Position Memory: Remembers your preferred airflow direction for consistent comfort.
- Self-Diagnostic System: Helps identify potential issues for faster troubleshooting.
- Refrigerant Leak Detection: Adds an extra layer of system protection and safety.
- Fahrenheit or Celsius Display: Select the temperature scale you prefer.
