COMFORTSTAR

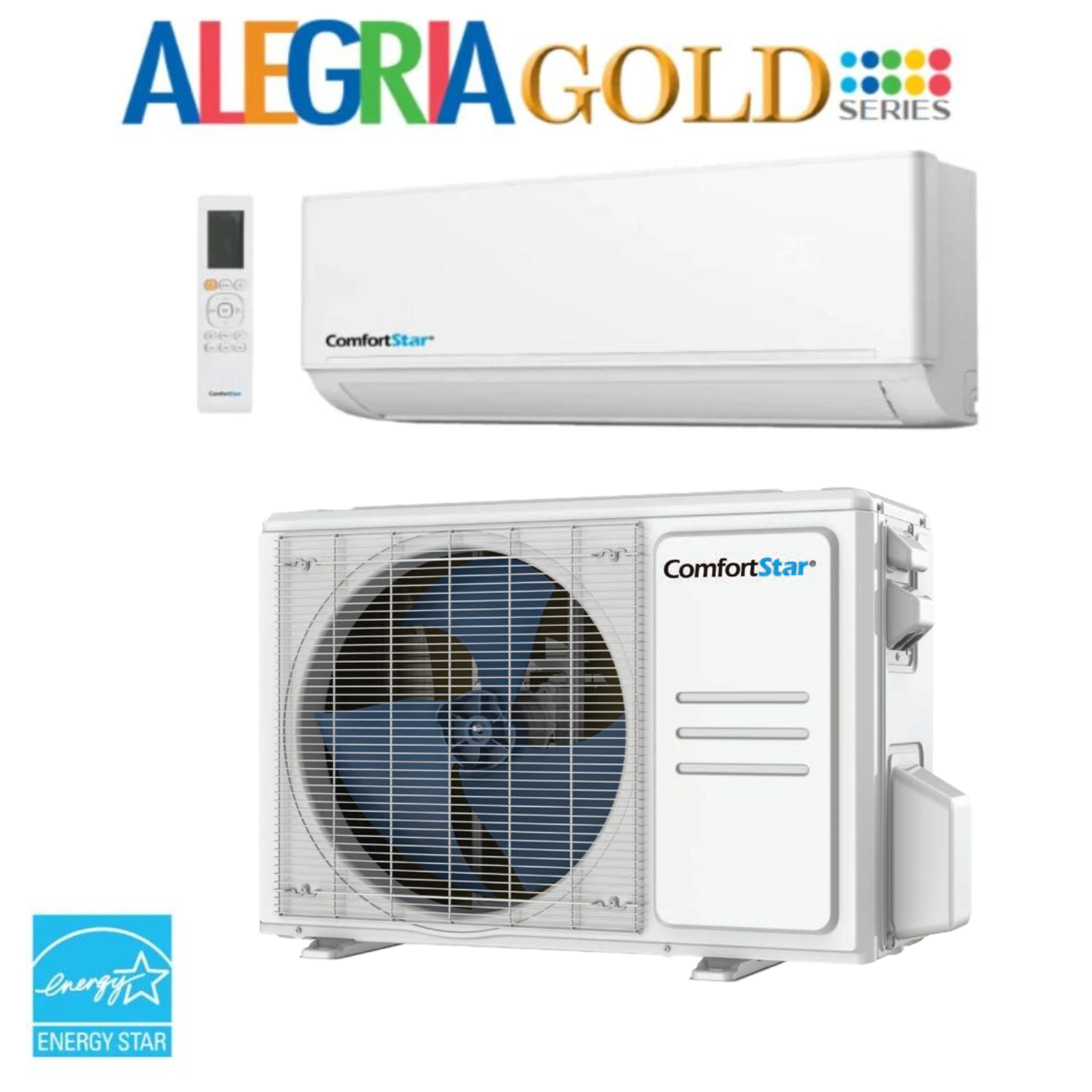

9K COOLING + HEATING - 115V ENERGY STAR WALL MOUNTED – MINI-SPLIT SYSTEM – 21.5 SEER2

SKU: CGS09CA

BARCODE: CGS09CA(O) + CGS09CA(I)

PRODUCT TYPE: Highwall Units

Product variants

Expedited Shipping

Owners and Installation Manual

Performance Data

Service Manual

CGS System Submittals

CGS09CA

View full details

SEER2: 21.5

EER2: 12.5

HSPF2-4: 9.1

HSPF2-5: 7.0

Max. Allowable Piping Length (ft): 82

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 33

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 1/4"- 3/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: 5°F

Indoor Unit Net/Gross Weight (lbs.): 17.64/22.71

Outdoor Unit Net/Gross Weight (lbs.): 57.76/63.49

Features

• Auto-restart
• Timer (24H)
• Turbo
• Auto Swing
• Sleep mode (7 hour off)
• Refrigerant Leak Detection
• By Pass Function
(Emergency operation)
• LED Display
• Manual Power Control on Indoor unit
• Low Ambient Heating and Cooling
• Louver Position Memory
• Dry Mode
• Cold Catalyst Filter
• High Density Filter
• 2 Way Draining
• GOLD Fin

Specifications

Unit Size - Inches (W x D x H):

Indoor - 28.70x7.87x11.50
Outdoor - 30.12x11.93x21.85

Voltage: 115V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 238.82/170.00/137.06
Outdoor - 1294

Tonnage: .75

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 37.5/28/20
Outdoor - 55

Heat Capacity (BTU): 10000

Cooling Capacity (BTU): 9000

Placement: Residential and Commercial Applications

Breaker Size (A): 20

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
