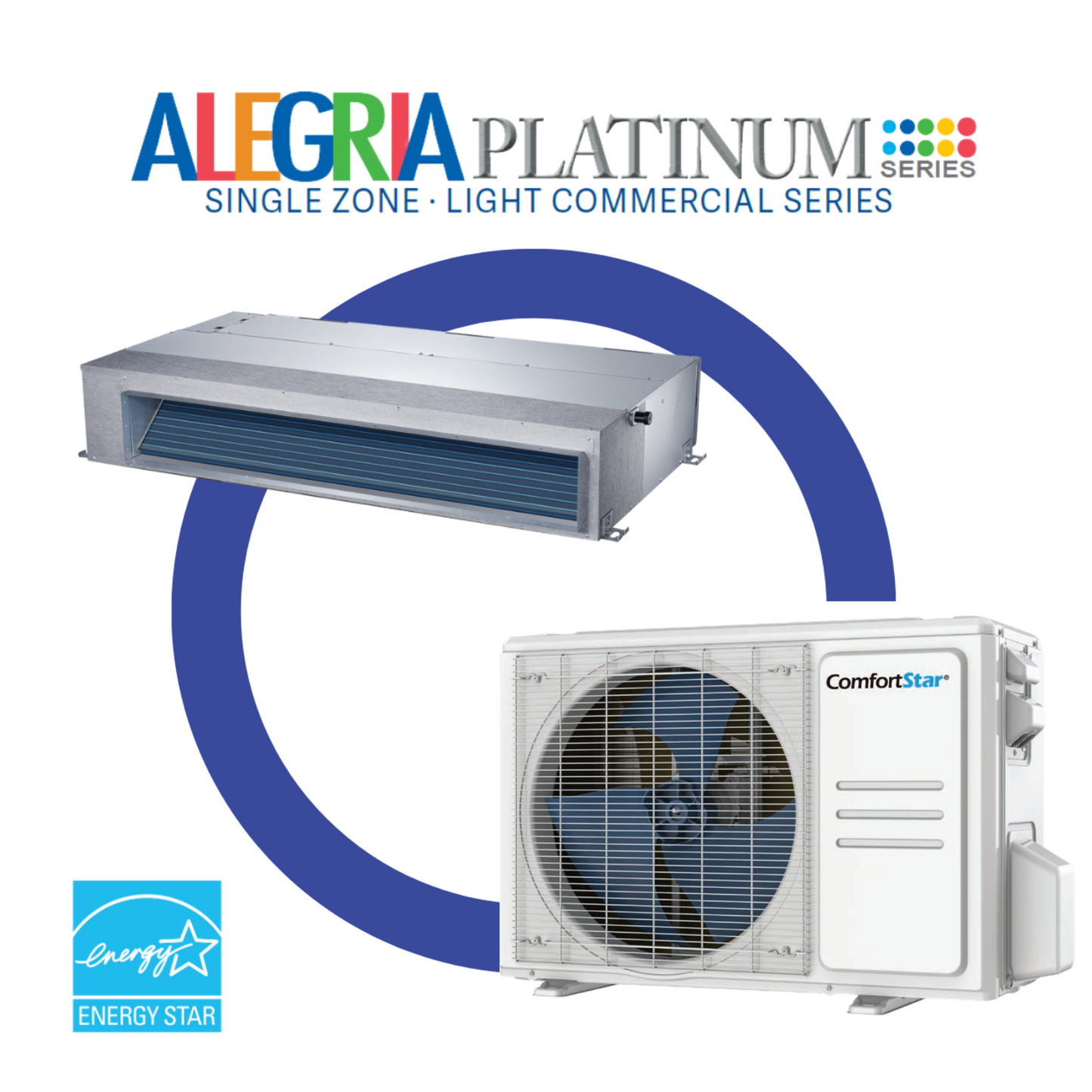

9K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL FAN COIL SYSTEM – 19.2 SEER2

SKU: CZPCD-CPAB-09

BARCODE: CZP09CD(O) + CPA-09B

PRODUCT TYPE: Fan Coils

Product variants

Tax included.

Expedited Shipping

System Gross Weight: 117.3 (lbs.)

Quantity

Service Manual

CPA – Service Manual

Owners Manual & Installation Manual

CPA – Owners & Installation Manual

CPA + CZP System Submittal

CPA-09B-CZP09CD(O)

View full details

SEER2: 19.2

EER2: 12.5

HSPF2-4: 10.2

HSPF2-5: 8.0

Max. Allowable Piping Length (ft): 82

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 33

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 1/4"- 3/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 37.5/48.3

Outdoor Unit Net/Gross Weight (lbs.): 63.71/69.00

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor Fan Coil
• Compact Design
• Quiet Operation
• Wired Control (standard)
• Available Fresh Air Intake

Specifications

Unit Size - Inches (W x D x H):

Indoor - 27.56x17.72x7.87
Outdoor - 30.12x11.93x21.85

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 352.94/282.35/176.47
Outdoor - 1294.1

Tonnage: 0.75

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 33.5/28.5/27
Outdoor - 53

Heat Capacity (BTU): 10000

Cooling Capacity (BTU): 9000

Placement: Light Commercial Applications

Breaker Size (A): 10

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
