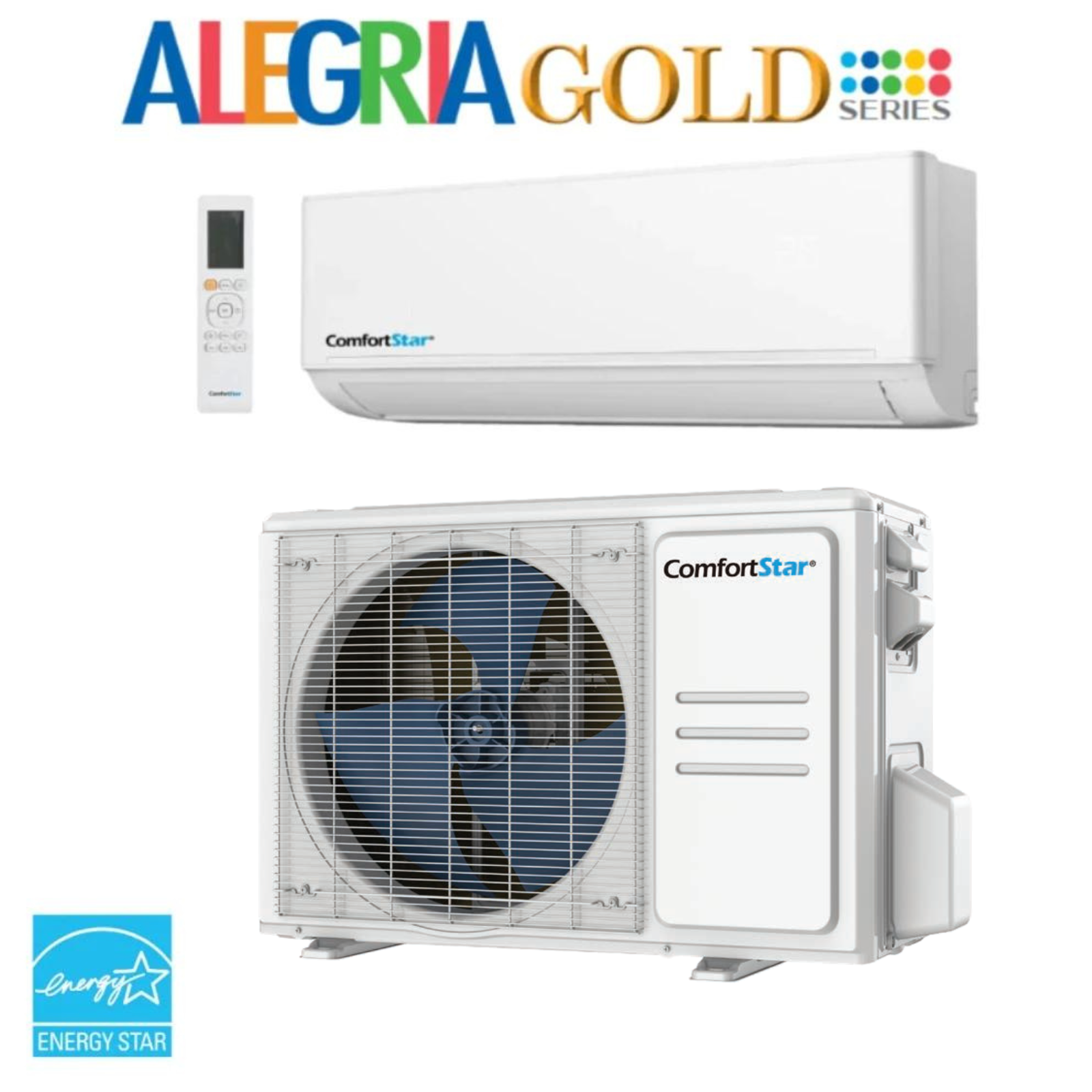

9K COOLING + HEATING - 208/230V ENERGY STAR WALL MOUNTED – MINI-SPLIT SYSTEM – 21.7 SEER2

9K COOLING + HEATING - 208/230V ENERGY STAR WALL MOUNTED – MINI-SPLIT SYSTEM – 21.7 SEER2

SKU: CGS09CD

BARCODE: CGS09CD(O) + CGS09CD(I)

PRODUCT TYPE: Highwall Units

View full details
Refrigerant Type: R410a
SEER2: 21.7
EER2: 12.6
HSPF2-4: 9.4
HSPF2-5: 7.2
Max. Allowable Piping Length (ft): 82
Min. Allowable Piping Length (ft): 9.8
Max. Allowable Elevation Differences (ft): 33
Min. Power Supply Wire Size (AWG): 12*3
Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded
Piping Size: 1/4"- 3/8"
Operating Mode: Heating and Cooling
Outdoor Ambient Temperature: 5°F
Indoor Unit Net/Gross Weight (lbs.): 18.52/24.03
Outdoor Unit Net/Gross Weight (lbs.): 62.17/67.68

Features

LOW AMBIENT: Capable of producing comfortable heating and cooling to outdoor ambient temperatures as low as 5°F.
MANUAL POWER SWITCH: Power unit ON/OFF using button located at the evaporator.
INTERACTIVE DISPLAY SHOWS: – Error codes based on system failure.
– Service codes if your filter needs cleaning.
– Error code if refrigerant leak is detected.
– When unit goes into auto defrost.
SELF-DIAGNOSIS: Unit will shut down and go into protection mode if it detects abnormalities. The display will show an error code.
BYPASS MODE: Unit will continue to operate if a non-critical component fails, such as a sensor.
2-WAY DRAINING OPTION: Ability to place drain hose on left or right hand side of evaporator allows for flexible installation.
3 DIRECTIONAL AIRFLOW: Air flow is directed so that it reaches more surface area including the corners of the room.
MUTE OPERATION: Silence from the Remote Control.
FOLLOW ME FUNCTION: Remote Control has a sensor built in. In this mode, the unit will sense the temperature at the Remote Control instead of at the indoor unit for the set temperature.
CONTROLS: Wired Controls and Wi-Fi Control – (optional).

Specifications

Unit Size - Inches (W x D x H):

Indoor - 28.70x7.87x11.50
Outdoor - 30.12x11.93x21.85

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 246.47/176.47/141.18
Outdoor - 1294

Tonnage: .75

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 37/28/20
Outdoor - 55

Heat Capacity (BTU): 10000

Cooling Capacity (BTU): 9000

Placement: Residential and Commercial Applications

Breaker Size (A): 15

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
