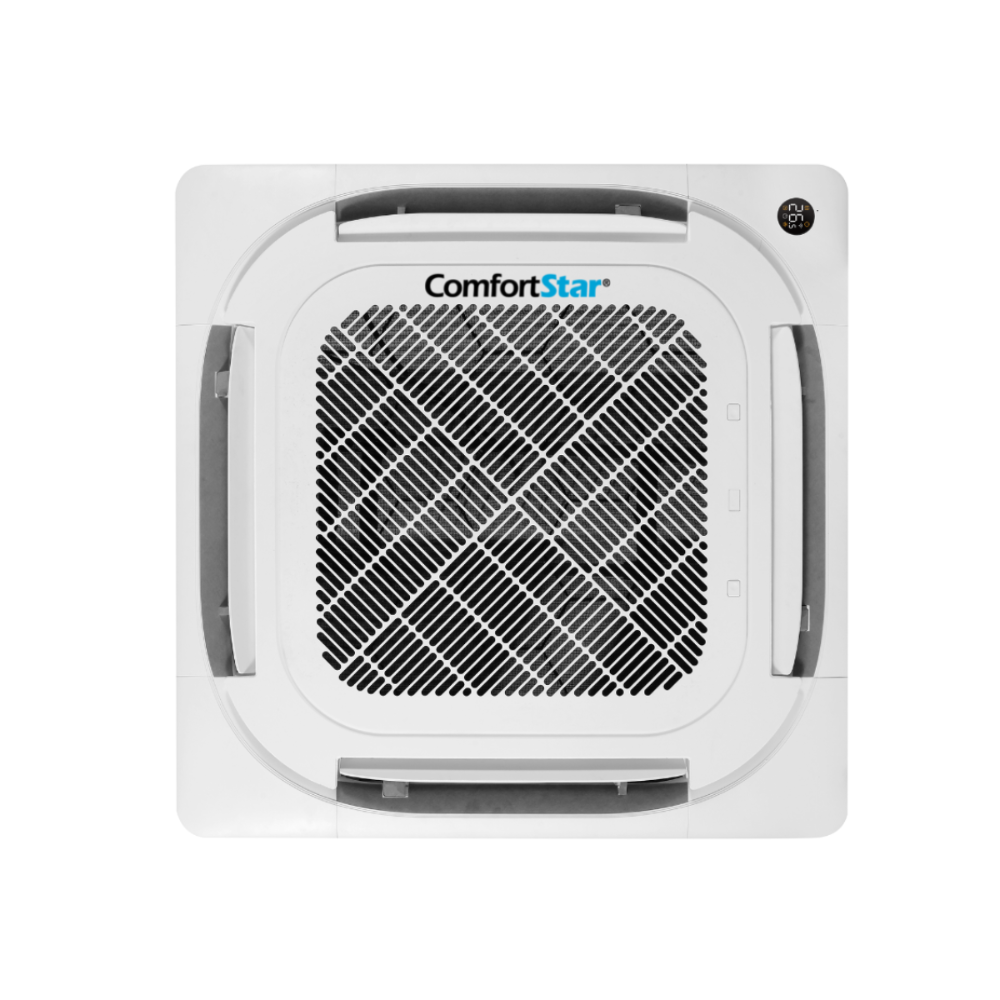

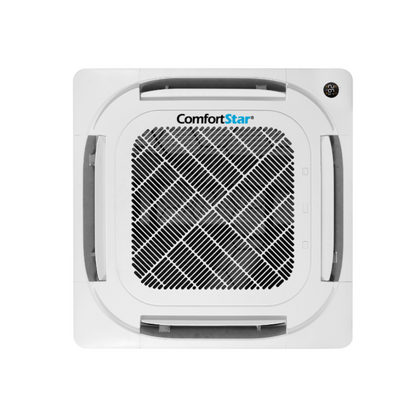

SKU: TPA-09
PRODUCT TYPE: Cassettes
Refrigerant Type:
R410a
Unit Size - Inches (W x D x H):
22.44x22.44x10.24
Voltage:
208-230V
Air Flow - CFM (Hi / Mi / Lo):
352.94/305.88/270.59
Tonnage:
0.75
dB(A) Noise Level (Hi / Mi / Lo):
39.5/36/32.5
SEER2:
Refer to Outdoor Multi-zone Unit Selected
EER:
Refer to Outdoor Multi-zone Unit Selected
Operating Mode:
Heat Capacity (BTU):
10000
Cooling Capacity (BTU):
9000
Placement:
Indoor and Flex-Mount Cassette
Indoor Unit Net/Gross Weight (lbs.):
31.97/38.14
Features
Features
TPA SERIES CASSETTE TYPE • Compact Design • Concealed Ceiling Unit • Quiet Operation • 360 Air Discharge • Wireless Remote Control (standard) • Wired Wall Remote (optional) • Reserved Hole for Fresh Air Intake • Integrated Condensate Pump (29” head)
