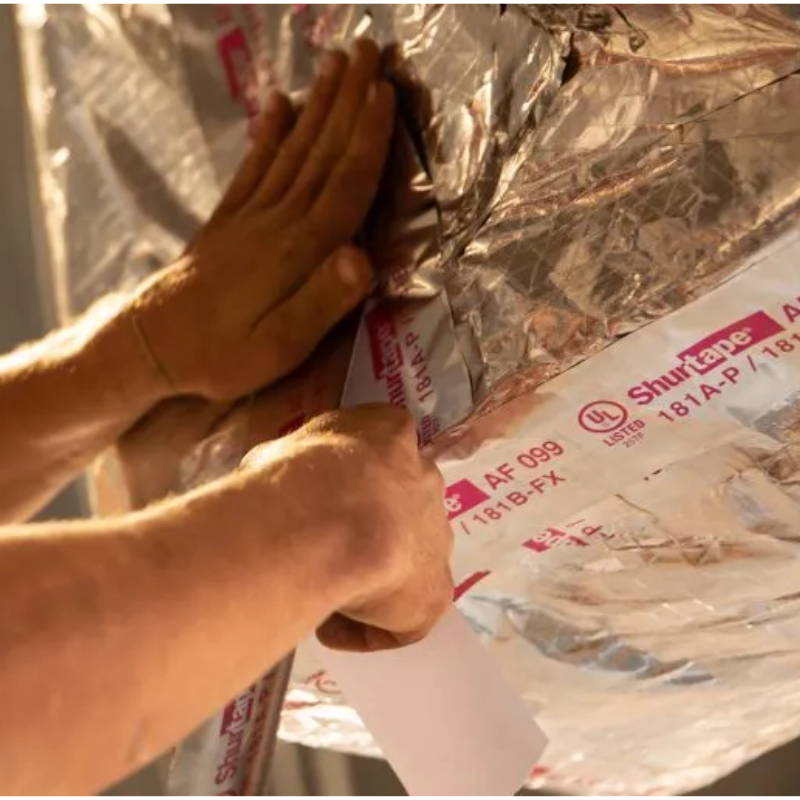

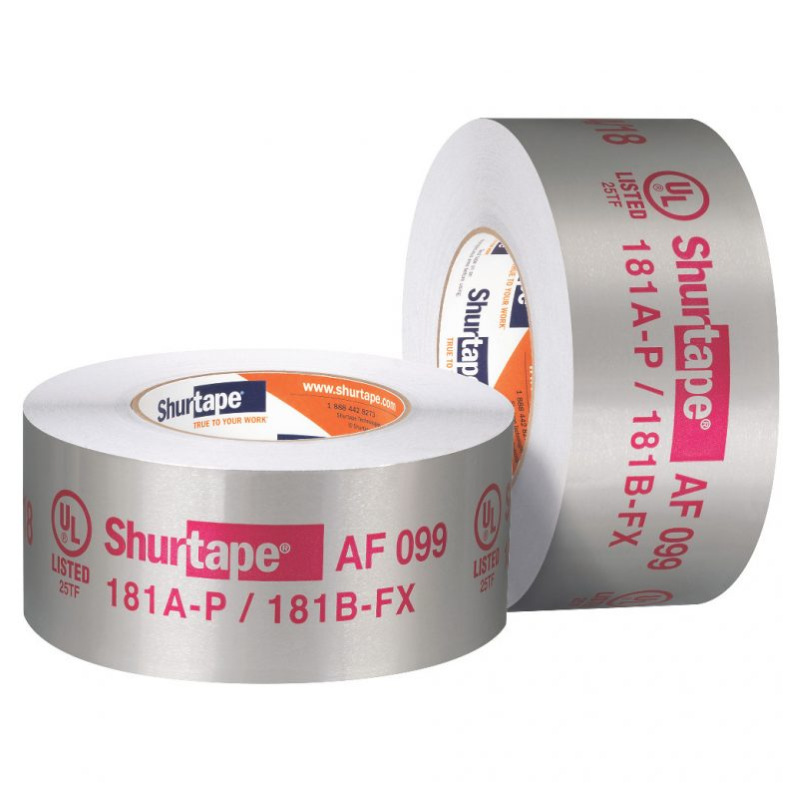

Aluminum foil HVAC tape for joining and sealing joints, connections and seams on rigid fiberglass ductboard and flexible air duct, and as a UL 181A-P listed product, can also be used in place of mechanical fasteners on rigid ductboard. UL 181A-P/B-FX Listed and printed, AF 099 delivers full system closure by forming airtight bonds on joints and seams in temperatures ranging from -20 F to 260 F and in humid conditions.
Features & Applications
UL 181A-P/B-FX listed and printed aluminum foil tape
Linered
Airtight performance on rigid fiberglass ductboard and flexible air duct
Flexible and easy to use
Superior stability during extreme fluctuations in temperature
Construction
Backing: 2 mil, dead-soft aluminum foil
Adhesive: Acrylic-based adhesive
Liner: Non-contaminating, siliconized, flat, white, paper release liner
Lengths Available: 60.1 yd
Widths Available: 2.5 in, 2.83 in
Properties & Technical Data
Product Nomenclature: AF 099
Property Standard Metric
Adhesion to Stainless Steel 70 oz/in width 7.66 N/10 mm
Elongation 10% 10%
Service Temperature Range -20 F to 260 F -29 C to 127 C
Tensile 33 lbs/in width 50.0 N/10 mm
Thickness - With Liner 7.9 mils 0.20 mm
Thickness - Without Liner 4.1 mils 0.10 mm
Applicable Standards
UL 181A-P
UL 181B-FX
UL Listed
FSI 25/SDI 50
Tested in accordance with UL 723
