HONEYWELL

DEHUMIDISTAT - 24/120/240VAC - 20 to 80% RH

DEHUMIDISTAT - 24/120/240VAC - 20 to 80% RH

SKU: H46C1166

PRODUCT TYPE: Dehumidifier Controls

Tax included.

Expedited Shipping

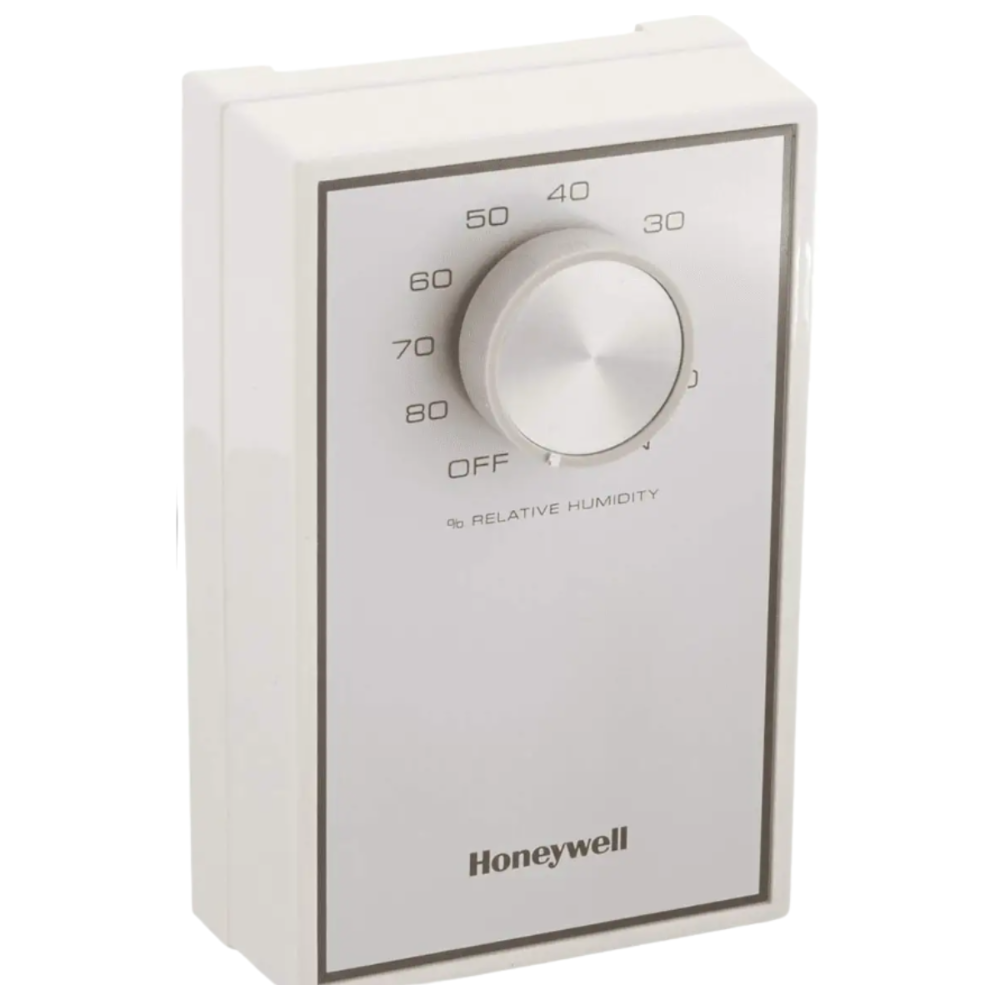

The Honeywell H46C 1166 Wall-Mounted Humidistat is typically used in a ducted setup of the Santa Fe, Ultra-Aire, Quest, and Hi-E Dry dehumidifiers. The optional humidistat is setup like a thermostat for an air conditioner—it's wired to the unit and mounted to a wall in a separate space to monitor and control the humidity.

    Brochure

    Installation Manual

    Submittals

    View full details

    Features & Specifications

    This Honeywell dehumidifier controller is used with portable and central unit dehumidifiers to maintain relative humidity. Features a SPST, snap-acting switch designed for line voltage circuits and 2 lead wires for switch box mounting.
    • Provides automatic control of a humidifier or dehumidifier for dehumidification in air conditioning systems.
    • Positive ON-OFF settings permit manual operation of controlled equipment.
    • Impact-resistant, molded plastic cover mounts on wall.
    • Fully enclosed, dust free, SPST, snap-acting switch.
    • Sensing element of thin, moisture sensitive nylon ribbon provides reliable operation even when ambient temperature conditions change.
    • Option to monitor and control the humidity in a space separate from the dehumidifier itself.
    • Is easily wired for precise and convenient control of humidity level (professional installation is recommended).

    Switch Action: Closes on Rise, Opens on Fall
    Humidity Range: 20 to 80%
    Temperature Range (F): 50°F to 125°F
    Voltage: 120v 24v 240v
    Mount: Wall
    Color: White
    Height: 4-3/4"
    Width: 2-1/8"
    Depth (Inches): 2-1/8"
    Switch Type: SPST
    Humidity Differential: 4% to 6%

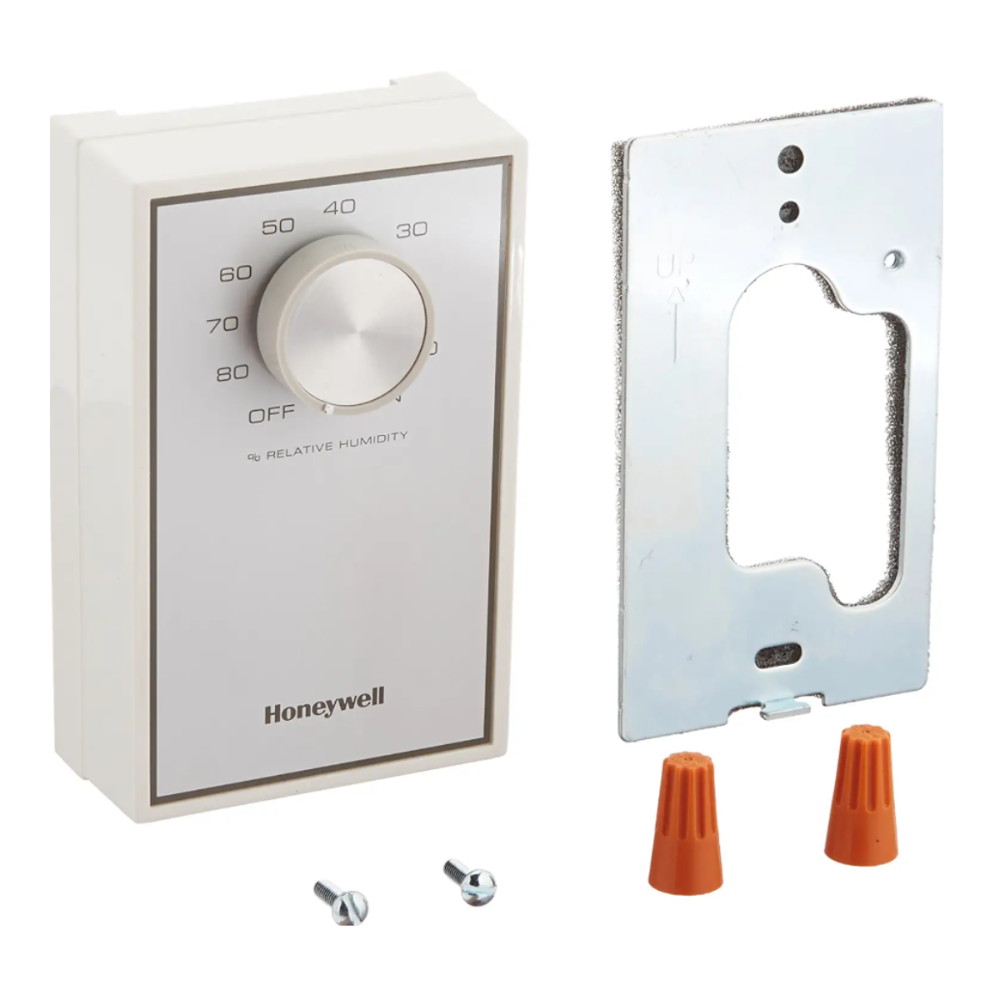

    Includes: White Plastic Cover and Metal Adapter Plate for Vertical Switch Box Mounting, Wiring Diagram
