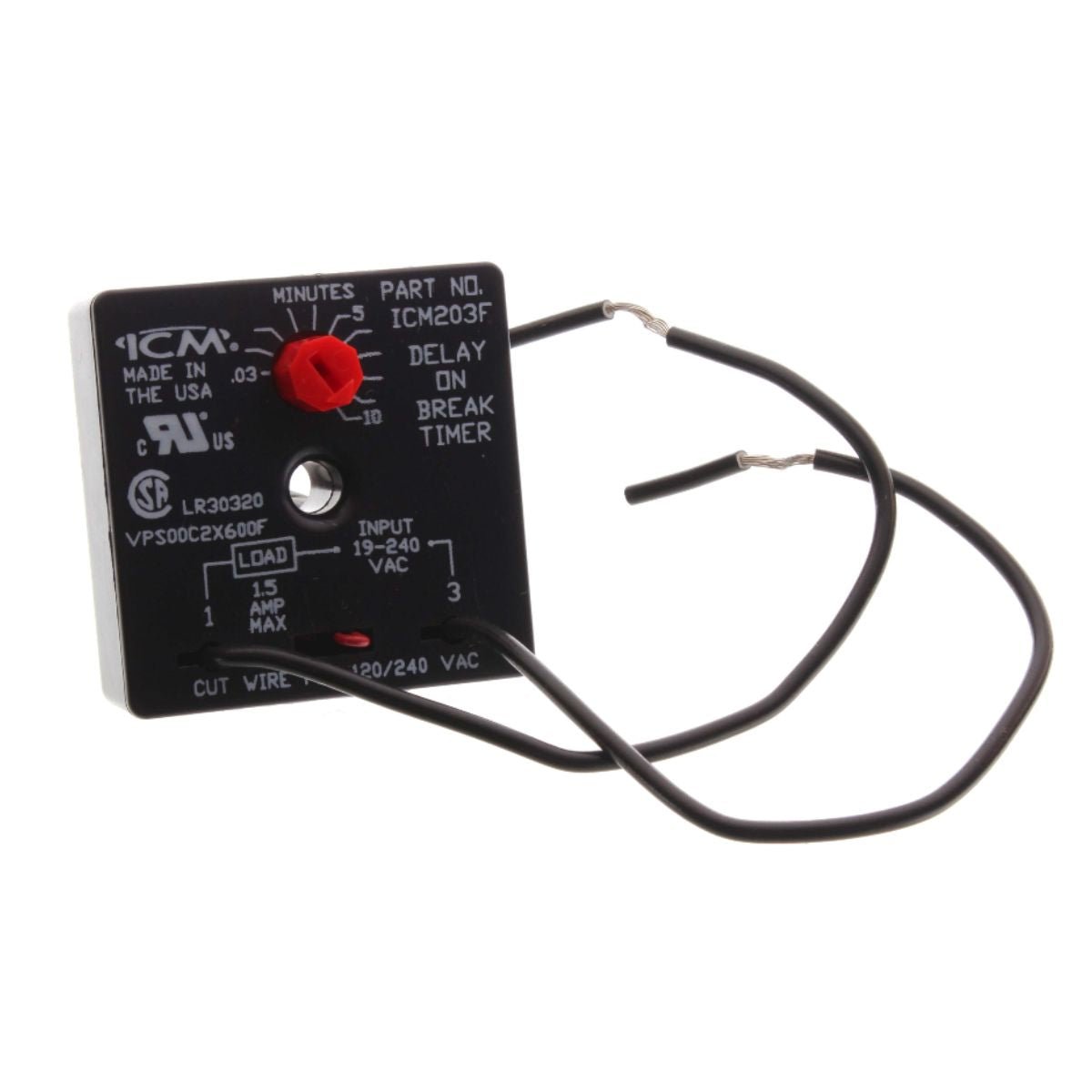

DELAY-ON-BREAK TIMER - 6" WIRE LEADS

The ICM203FB Delay on Break Timers ("anti-short cycle", "ON delay on break") helps to protect air conditioning, refrigeration and heat pump equipment from damage which may be caused by the rapid short cycling of compressors.

Features
Universal voltage operation
Higher 1.5 amp power rating
Compressor lockout-anti-short cycle timer
.03-10 minute (1.8-600 seconds) knob adjustable delay
Helps protect compressor from damage caused by rapid short cycling
Simple 2 wire hookup

SPECIFICATIONS

Time Delay- .3-10 Min Knob Adjustable
Voltage- 18-240 VAC
Amperage- 1.5 Amps
Amp Inrush- 15
Frequency- 50-60 Hz
Voltage Drop- 3.5 V Typical, 4.5 V max @ 1.5 amps
Holding Current- 40 mA
Size- 2" x 2"
