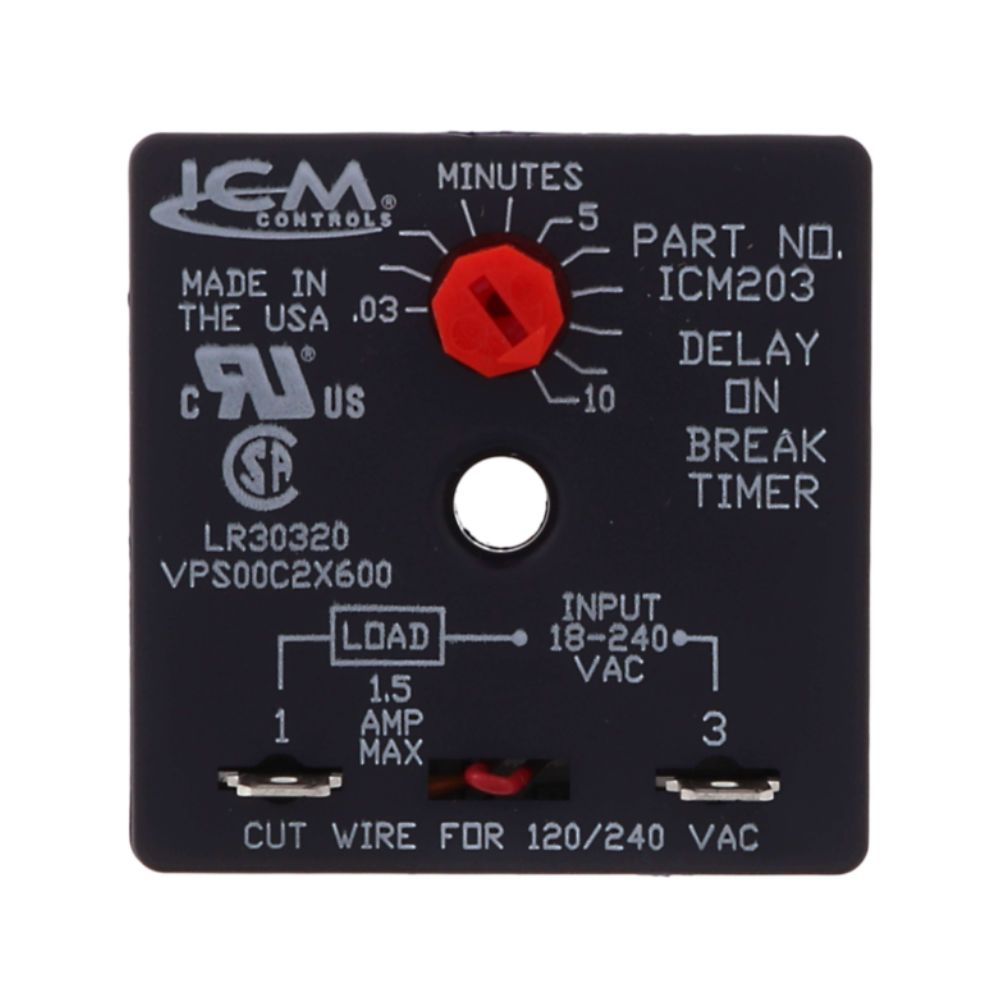

DELAY ON BREAK TIMER - 18-240 VAC - ADJUST 3-10MIN DELAY

DELAY ON BREAK TIMER - 18-240 VAC - ADJUST 3-10MIN DELAY

SKU: ICM203B

PRODUCT TYPE: Time Delays

Expedited Shipping

View full details

Features & Specifications

elay on Break Timers ("anti-short cycle", "ON delay on break") helps to protect air conditioning, refrigeration and heat pump equipment from damage which may be caused by the rapid short cycling of compressors.

Mode of Operation - Upon application power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.

Features:
Universal voltage operation
Higher 1.5 amp power rating
Compressor lockout-anti-short cycle timer
.03-10 minute (1.8-600 seconds) knob adjustable delay
Helps protect compressor from damage caused by rapid short cycling
Simple 2 wire hookup
