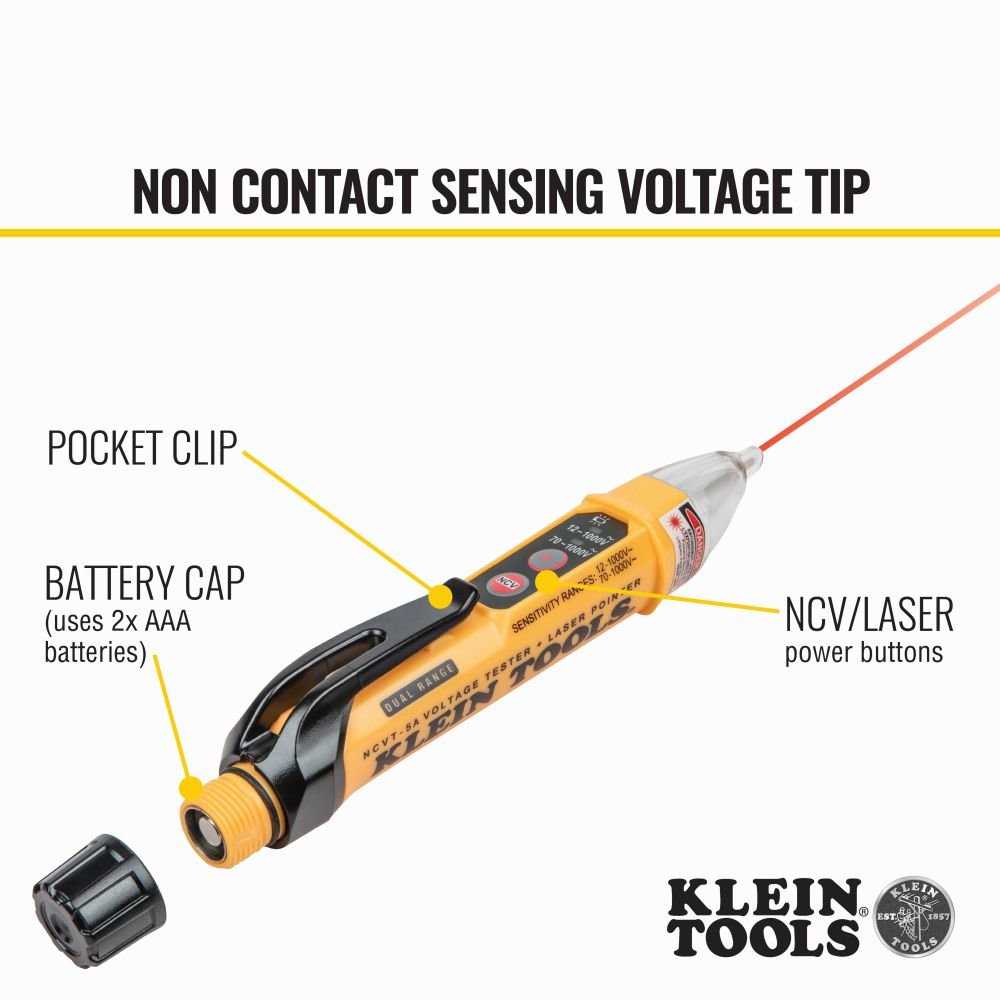

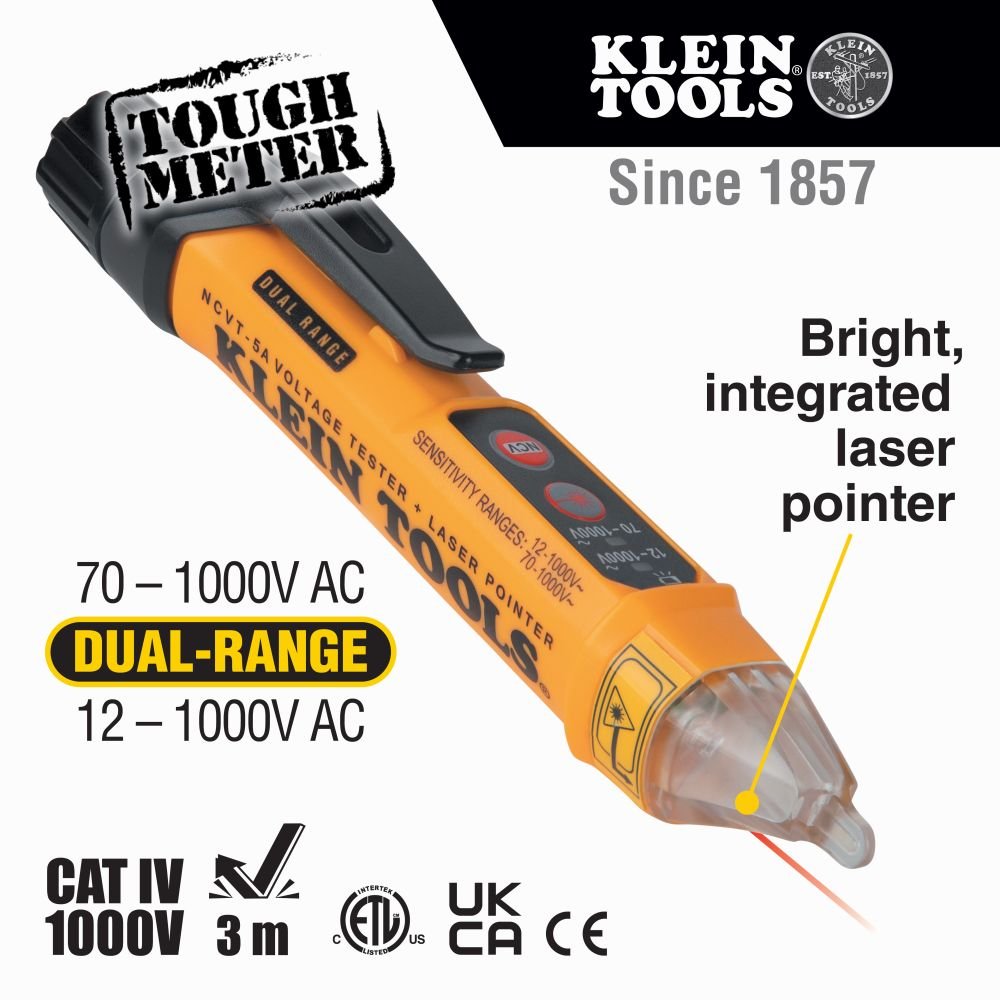

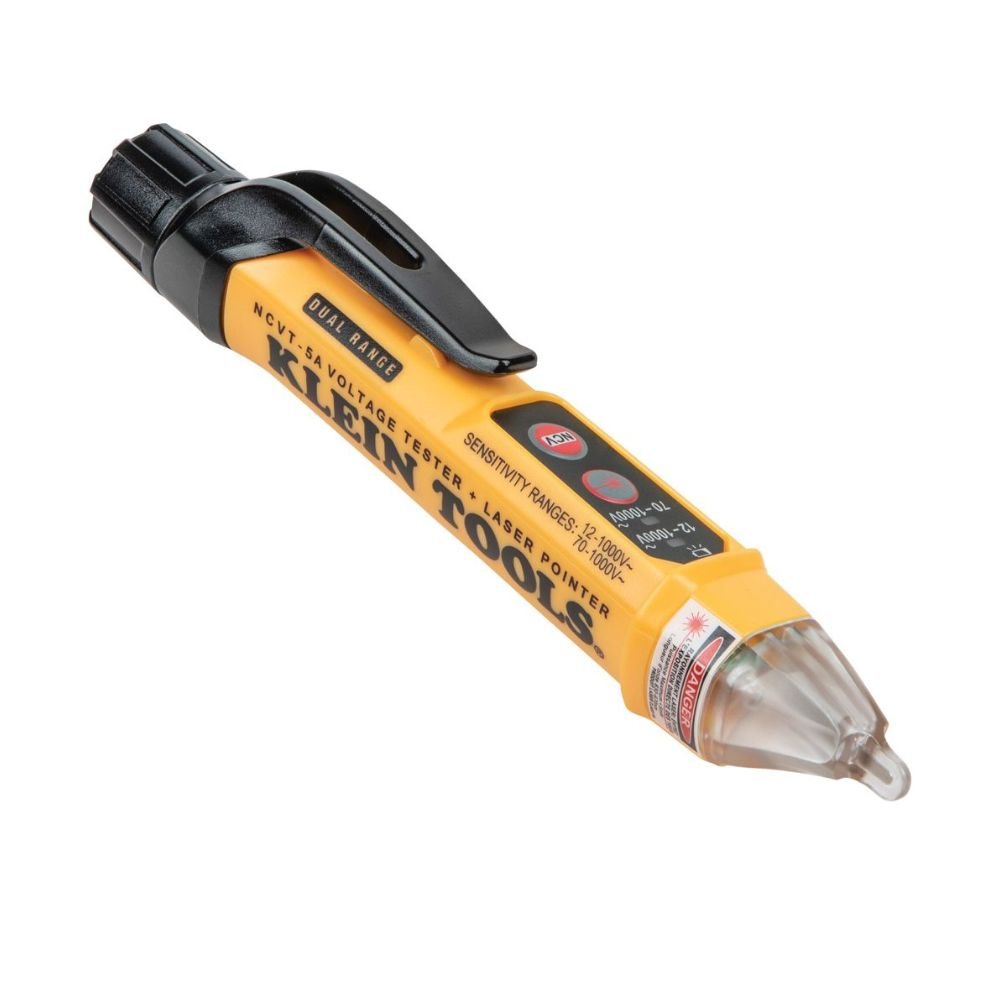

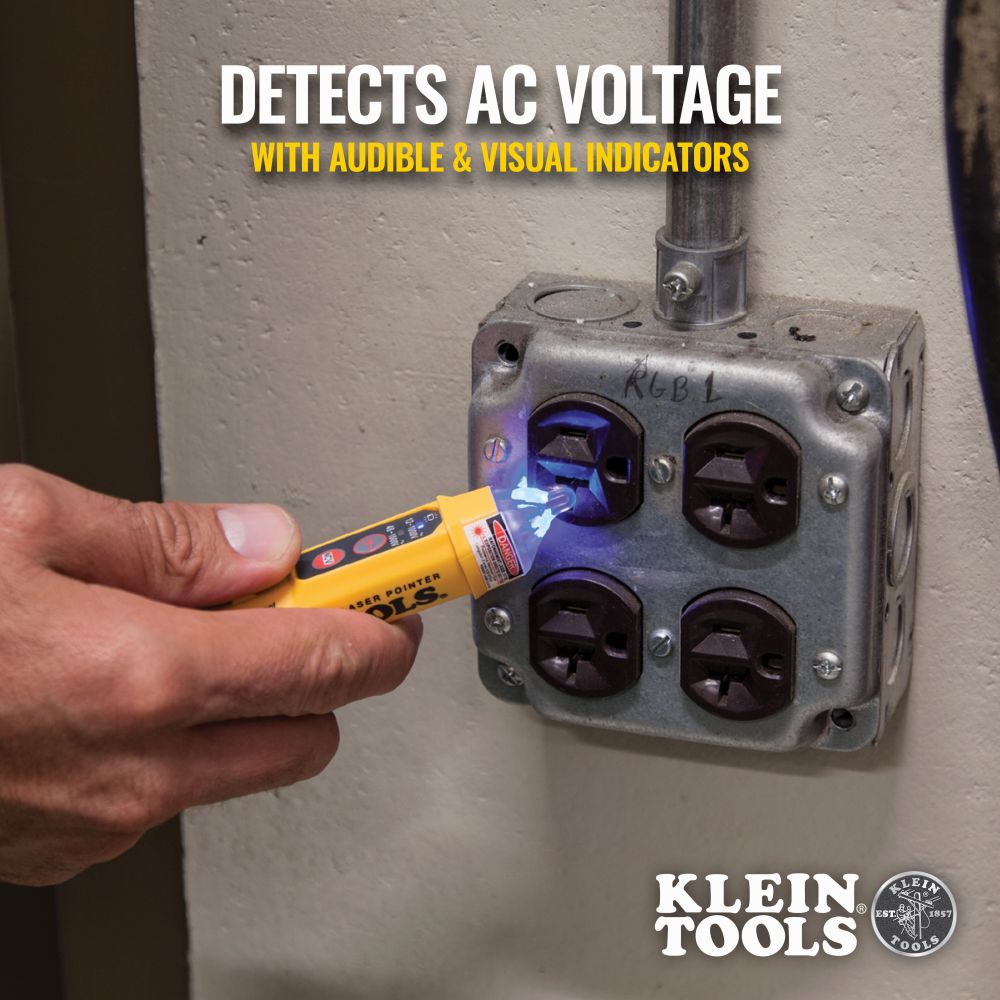

The Klein Tools NCVT-5A is a dual-range non-contact voltage tester (NCVT) with integrated laser pointer. The tester can be set to detect voltage from 70 to 1000V AC (Mode 1) or from 12 to 1000V AC (Mode 2). High pitched audible alerts beep at greater frequency as higher voltage is sensed, or proximity to the voltage source gets closer. The laser pointer can function independent of or simultaneously with the NCVT. CAT IV 1000V safety rating.
Type: Non-Contact Voltage Tester
Application: Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000 VAC or from 70-1000V AC
Special Features: Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985
Material: Plastic and Electronic Assemblies
Drop Protection: 9.8' (3 m)
Voltage: 12 to 1000 VAC
Frequency: 50 to 500 Hz
Pollution Degree: 2
Standard: CAT IV 1000V; Laser: Class IIIa, 630-670nm, Max Power <5mW
Included: Batteries
Batteries: 2 x AAA
Battery Life: Laser On: 31 hr; NCV On with Visual and Audible Alerts: 25 hr
Overall Length: 6'' (15.2 cm)
Overall Height: 1.16'' (2.9 cm)
Overall Width: 0.96'' (2.4 cm)
Weight: 1.5 oz (43 g)
