DUAL RANGE NON-CONTACT VOLTAGE TESTER WITH FLASHLIGHT, 12 - 1000V AC
DUAL RANGE NON-CONTACT VOLTAGE TESTER WITH FLASHLIGHT, 12 - 1000V AC
SKU: NCVT3P
PRODUCT TYPE: Electrical Testers
Features & Specifications
Features & Specifications

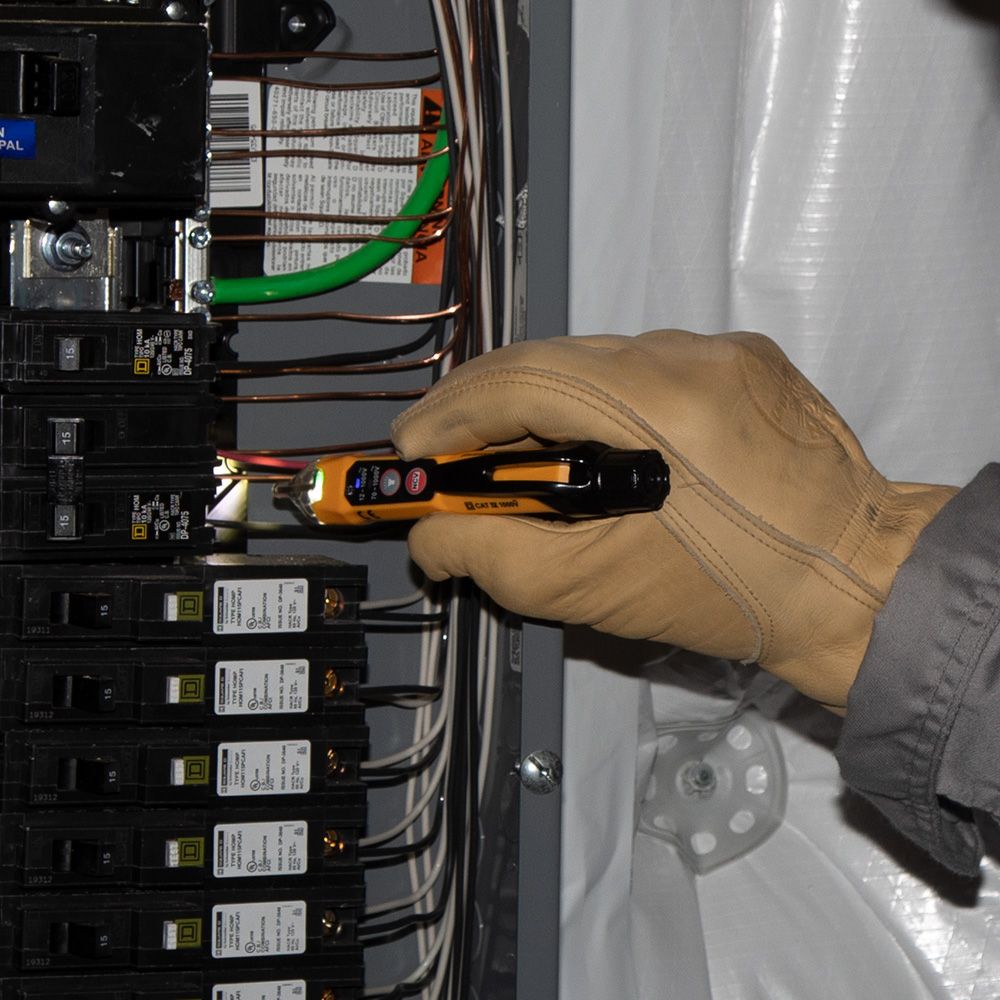

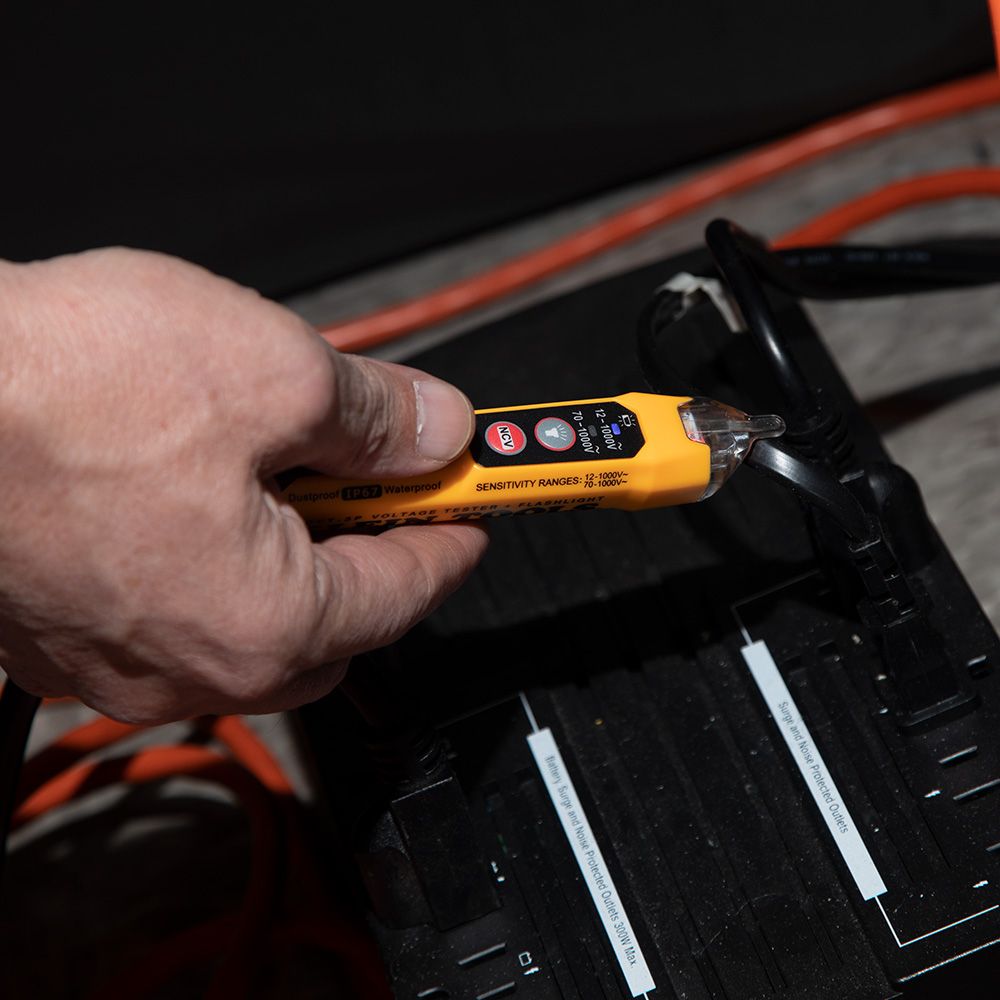

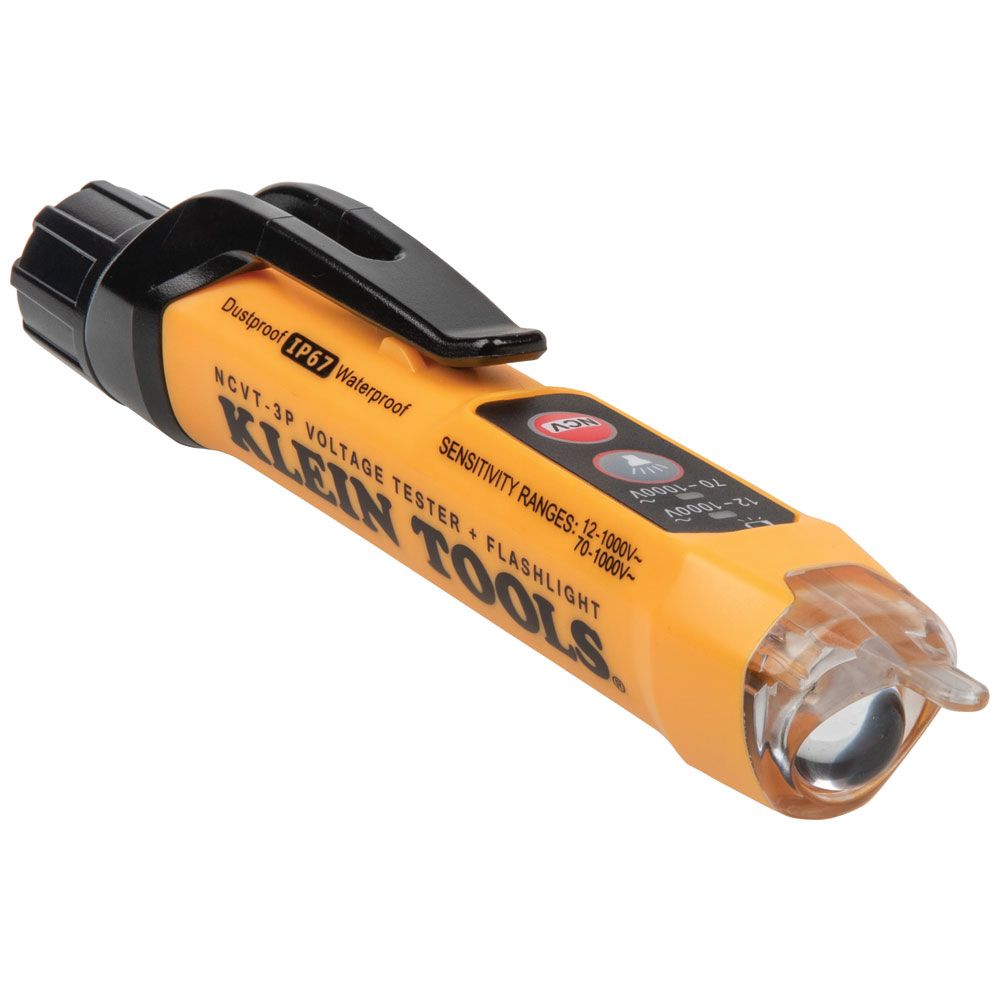

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
Type: Dual Range with Flashlight
Application: Non-Contact Detection and Testing of AC Voltage

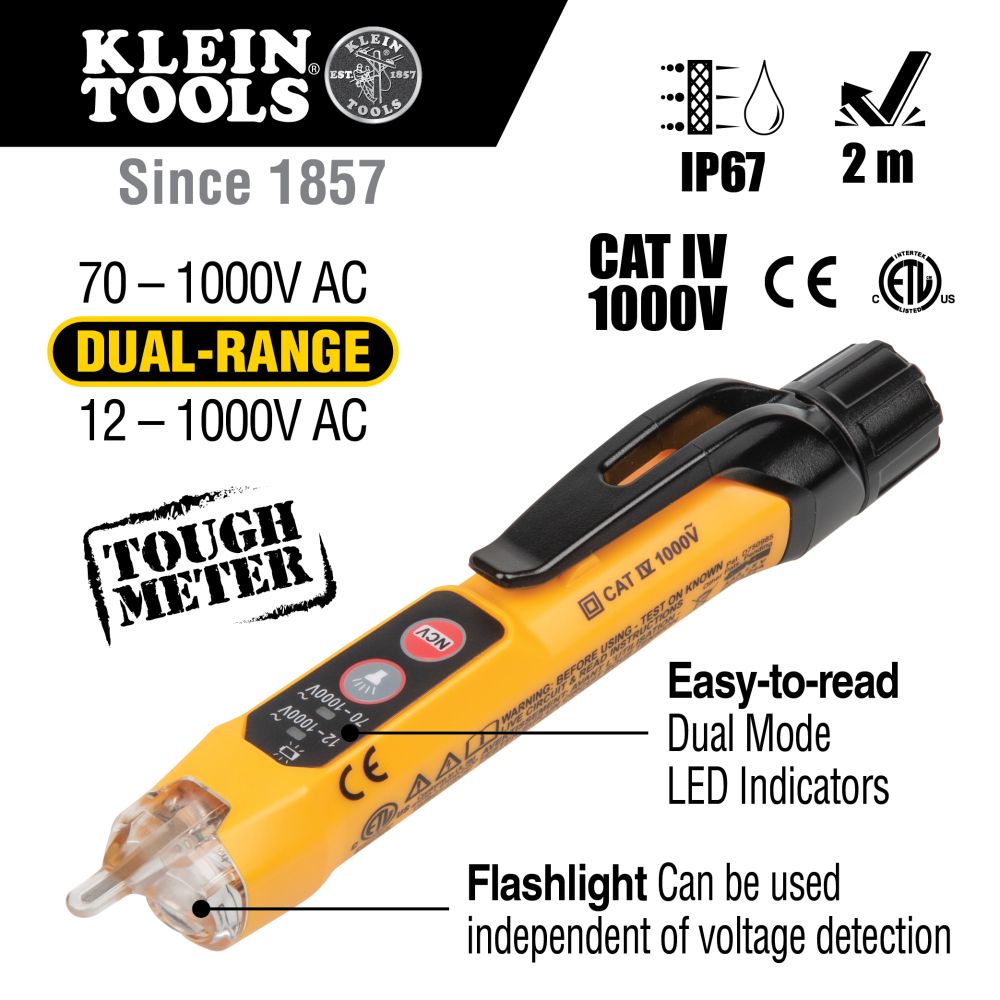

Special Features: Two Distinctive Modes: 70 to 1000V AC and 12 to 1000V AC; Flashlight
Material: Polycarbonate
Drop Protection: 6.6' (2 m)
Voltage: 12 - 1000V AC
Frequency: 50 - 500 Hz
Pollution Degree: 2
Ingress Protection: IP67: Dustproof and Waterproof
Standard: CAT IV 1000V
Included: Batteries
Batteries: 2 x AAA
Battery Life: 125 hr
Overall Length: 5.70'' (14.5 cm)
Overall Height: 0.93'' (2.4 cm)
Overall Width: 1.09'' (2.8 cm)
Weight: 1.9 oz (51.0 g)
UPC: 092644693236
- Voltage Tester provides non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
- Detects voltage with simultaneous visual and audible voltage indicators

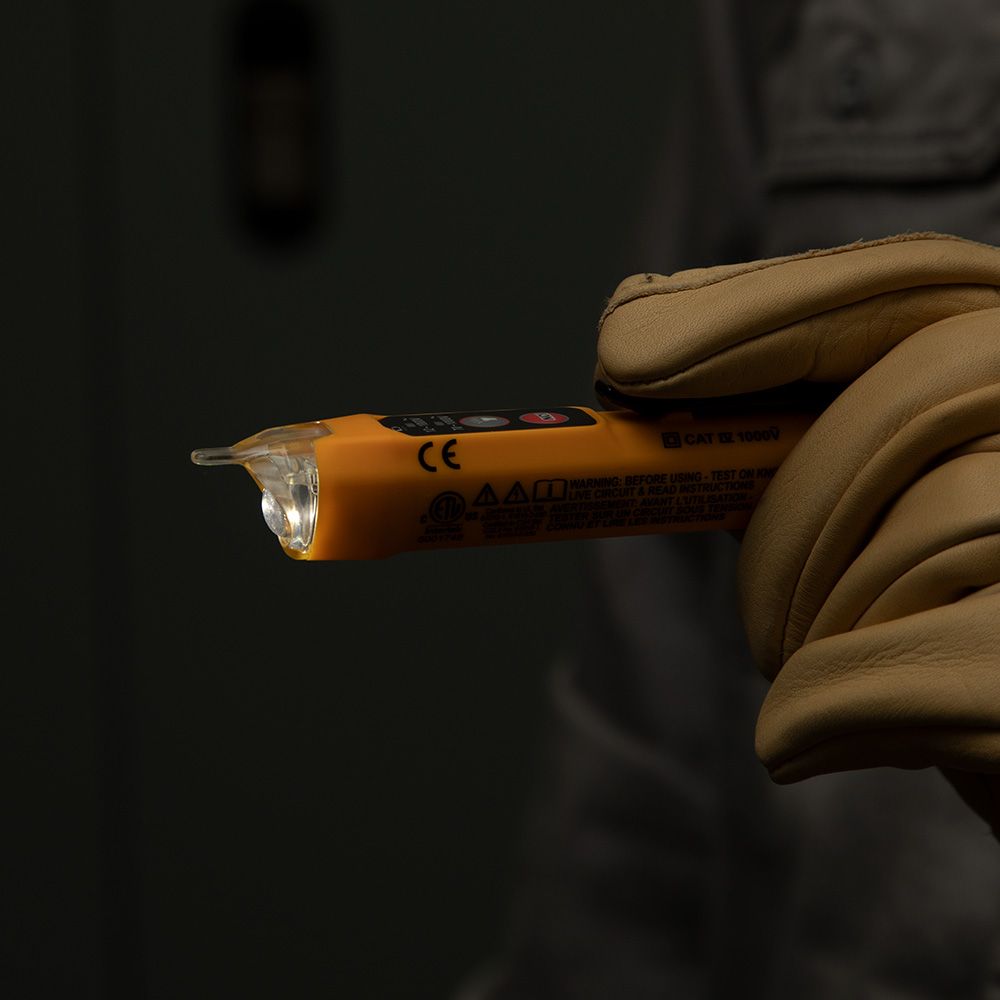

Bright flashlight illuminates work area and may be used independent of voltage detection function
- Green light indicates no voltage
- Lightweight, compact tool with pocket clip provides convenient storage and quick access
- Auto power-off feature conserves and extends battery life
- CAT IV 1000V rating provides expanded operation and protection

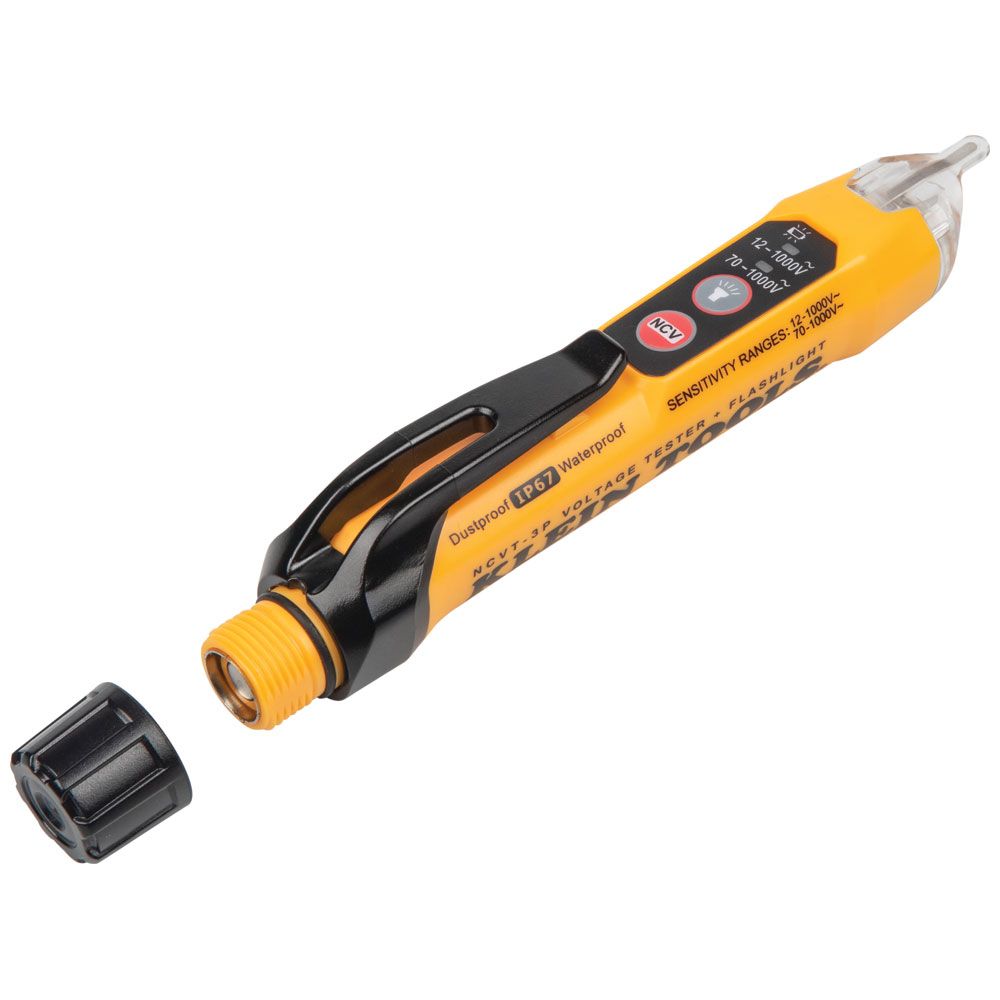

- Screw-thread battery cap with O-ring ensures protection against dust and water ingress
- 6.6-Foot (2 m) drop protection
- IP67: Dustproof and waterproof
- Conforms to CE requirements
- US Patent 10,073,142, D750,985 and other patents pending
