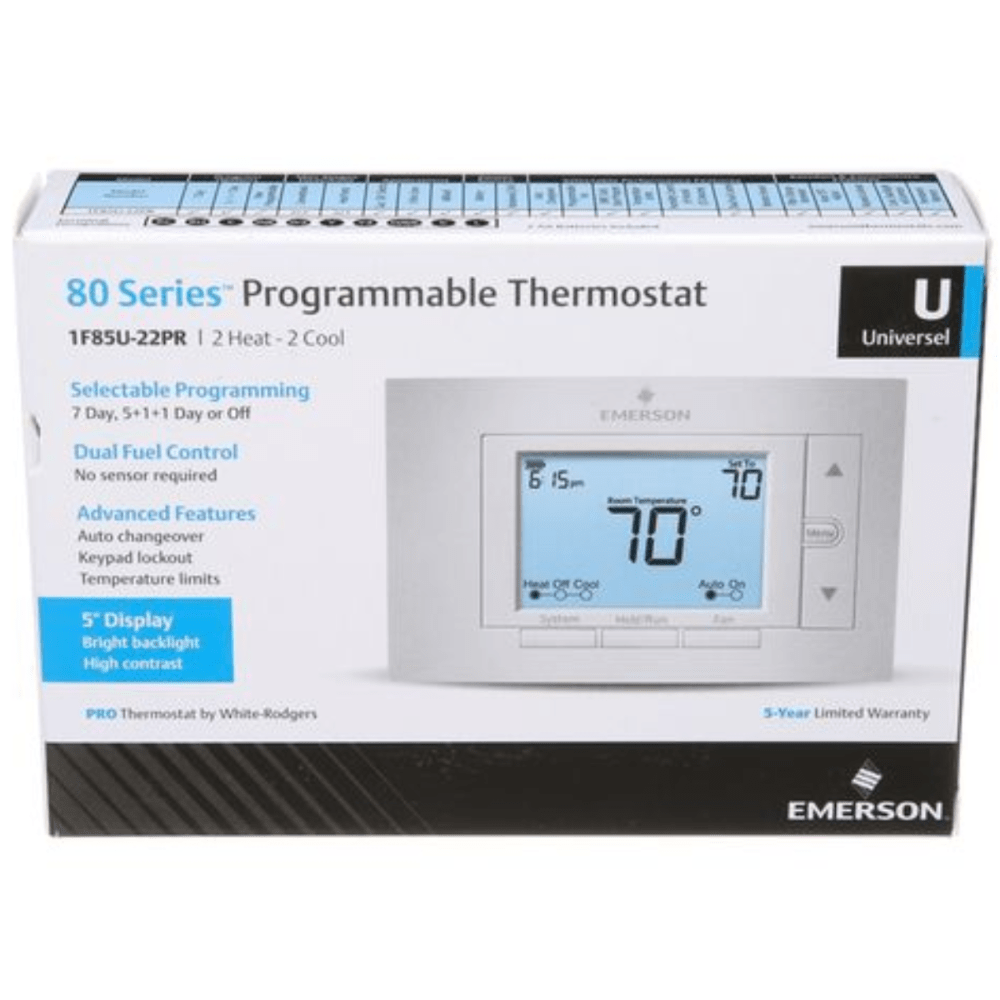

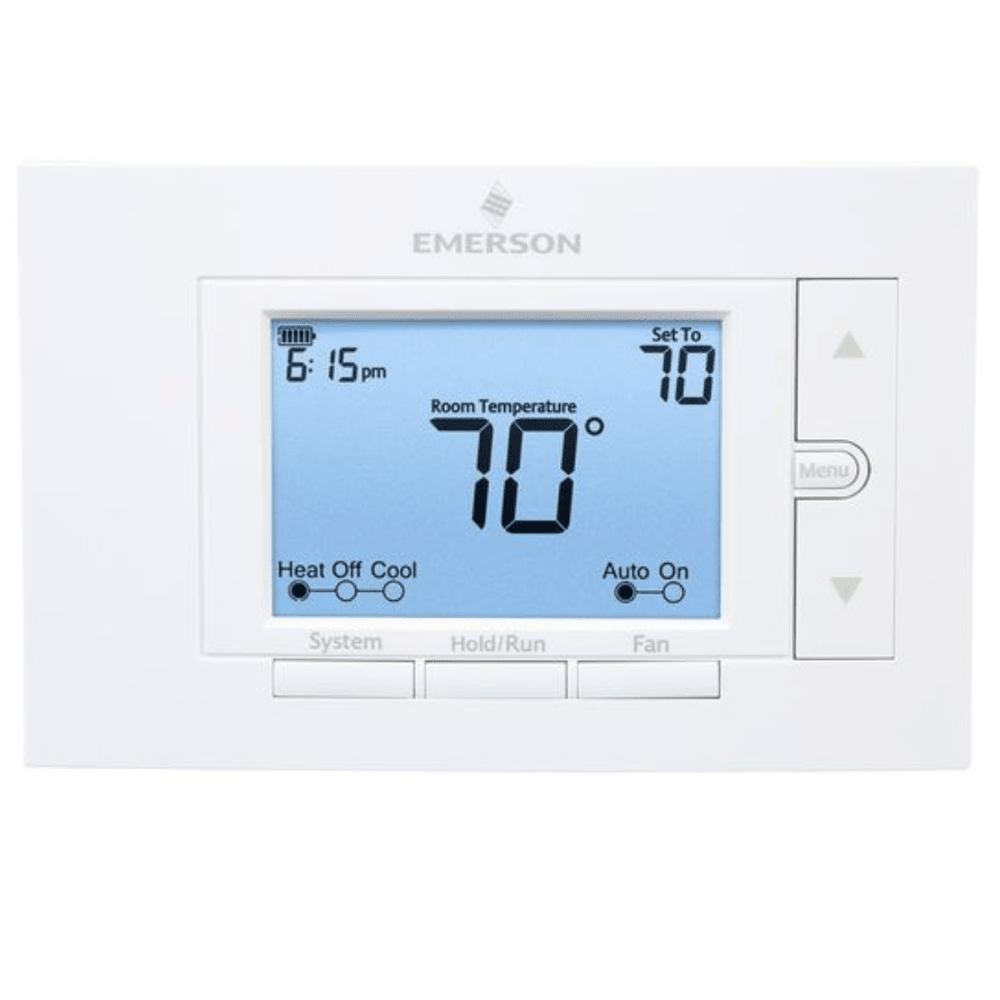

DUAL STAGE 5" DISPLAY CONVENTIONAL 7-DAY PROGRAMMABLE THERMOSTAT 2 HEAT/2 COOL
DUAL STAGE 5" DISPLAY CONVENTIONAL 7-DAY PROGRAMMABLE THERMOSTAT 2 HEAT/2 COOL
SKU: 1F85U-22PR
PRODUCT TYPE: Programmable Thermostats
Features & Specifications
Features & Specifications
✔ Large display, bright backlight, high contrast screen
✔ Easy to install with built-in level, simple set-up menu and separate subbase
✔ Selectable programming, choice of 7 Day, 5+1+1 Day, 5+2 Day, or Non-Programmable is standard
✔ Dual fuel control, no outdoor sensor required, standard on all staging models
✔ Auto changeover on all universal models
✔ Keypad lockout and adjustable heat/cool temperature limits
✔ 5 year limited warranty for professionals
Specifications
Program Options: Programmable - 7 Day, 5+1+1 Day or Non-Programmable
Program Periods Per Day Options: 4, 2, None
Stages: Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
Style: Horizontal
Typical Applications: Gas/Oil/Electric
3-Wire Zone Valve Connections: Yes
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Humidity Control: RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L
Heat Pump Dual Fuel Control: Yes, No Sensor Required
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
Remote Sensor Options: None
Power Source: Battery, Hardwire
Auto Changeover (Heat/Cool): Yes
Fan Option: Auto, On
Filter Change Reminder: Yes
Energy Mgt. Recovery/Early Start: Yes
Keypad Lockout: Total
Set-Point Temperature Limits: Yes
Display Type: 5 square in.
Backlight: Key Press or Continuous with Common Wire
Voltage: 20-30 Vac, NEC Class II 50/60Hz
Battery Power Rating: mV to 30 Vac
Amp Rating: Staging Models: 1.5 A per terminal, 2.5 A maximum all terminals combined; Single Stage Models: 1.0 A per terminal, 1.5 A maximum all terminals combined
