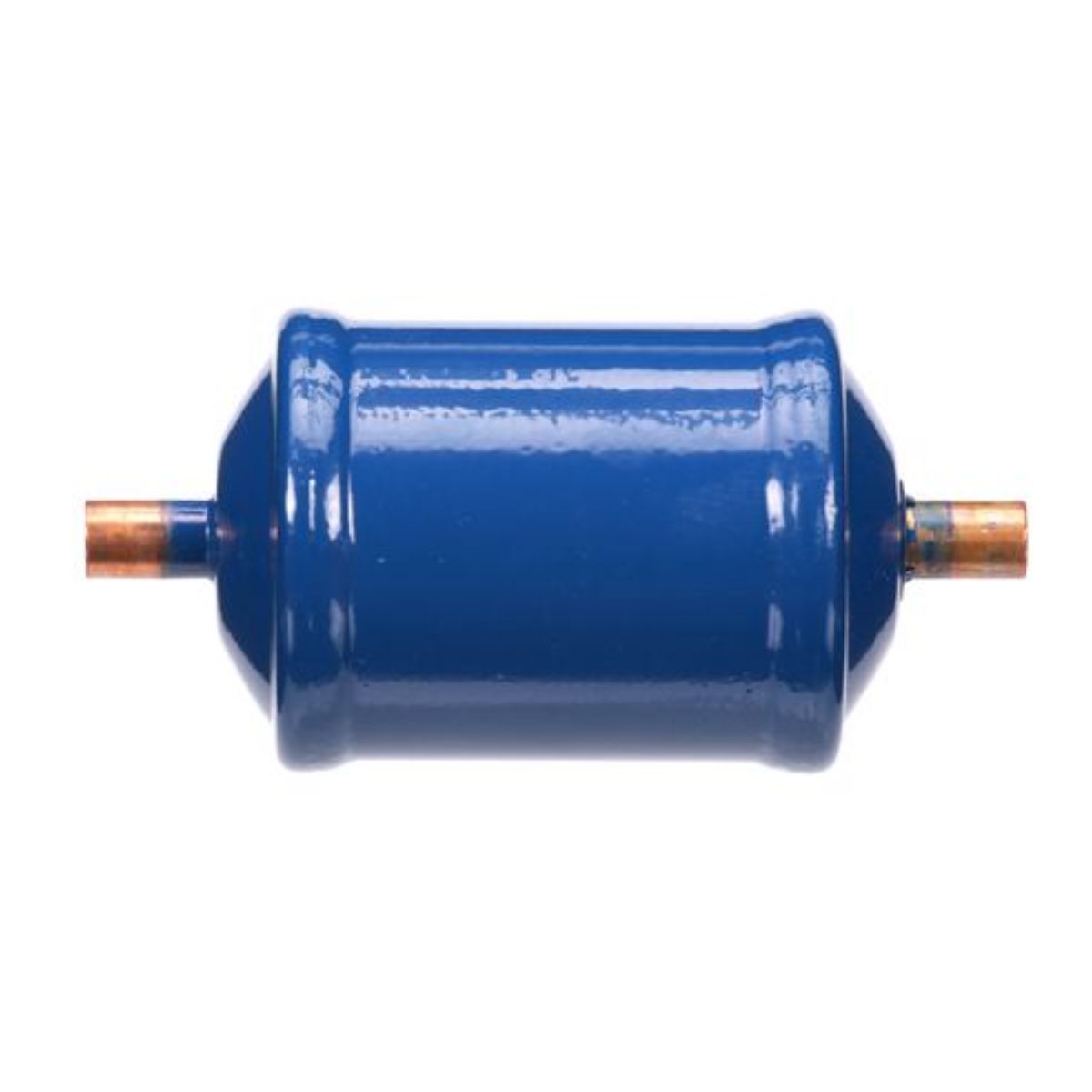

EK 083S - 3/8" ODF - EK SERIES LIQUID LINE FILTER DRIER

The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.

Features
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Solid copper connections
- Corrosion resistant epoxy powder paint finish
- Approved for POE oils with Copeland™ compressors
- Shock resistant steel shell construction

Unit Size - 8 Cubic inches
Inlet Connection Size - 3/8” ODF
Outlet Connection Size - 3/8 in. ODF
Access Type - None
Desiccant Blend - Blend optimized for high water capacity and acid capacity
Filtration - 20 microns
Maximum Working Pressure - 680 psig
Approvals - UL/CUL File Number SA3124
