EMERSON

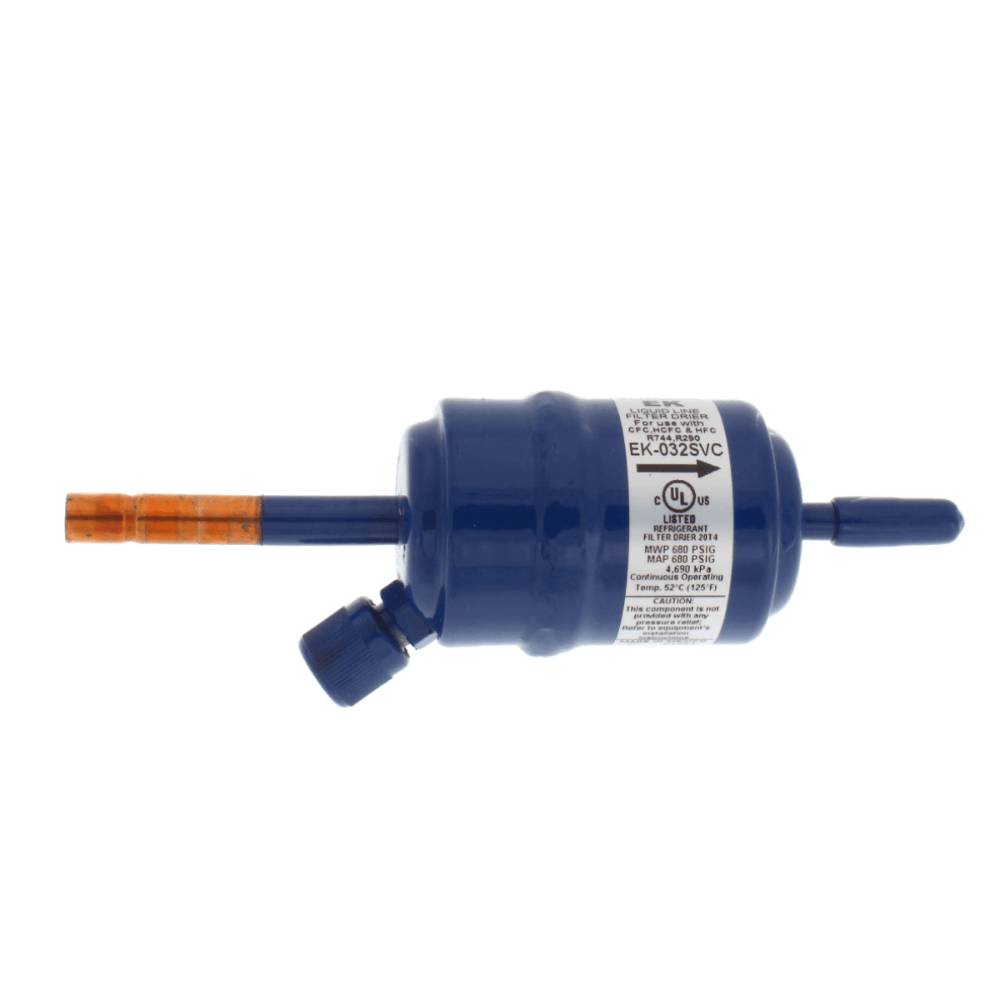

EK032SVCAP SERIES CAP TUBE FILTER DRIER (3 CUBIC INCHES) - 1/4" ODF
EK032SVCAP SERIES CAP TUBE FILTER DRIER (3 CUBIC INCHES) - 1/4" ODF
SKU: 063208
PRODUCT TYPE: Filter Driers
Features & Specifications
Features & Specifications
1/4" ODF EK032SVCAP-Series Cap Tube Filter Drier
The EK Cap Tube filter drier is designed for food-service refrigeration systems.
Schrader valve on the inlet side acts as a maintenance and charging port.
Outlet is designed to accept capillary tubing without the need for crimping.
Extended solid copper 1/4 ODF connection inlet by cap tube.
Incorporates all the internal features of the premium EK.
Desiccant blend - optimized for high water capacity and acid capacity
Filtration: 20 microns
Maximum working pressure: 680 psig
Connection Type: Solder x Solder
Finish: Epoxy Powder Coated
Material: Steel Micron
Rating: 20 micron
Model: EK 032 SV CAP
Pressure Rating: 680 psig
Series: EK
Size: 1/4 Inch
Type: Cap Tube
Volume: 3 cu-Inch
