Features & Specifications

Expandable. Dependable. Practically indispensable.

The Perfect Fit for HVACR.

- Works with any accessory head
- Non-contact voltage
- 400 AAC with included clamp
- Temperature up to 1000°F
- Convenient lead storage
- Safe one-handed testing

Based on the success of our original stick meter line, the HS33 was designed to measure even more HVAC/R parameters including temperature with quick compensation via a k-type thermocouple plug, a diode test and a built-in non-contact voltage (NCV) tester. The updated ergonomic shape fits firmly and naturally in your hand while testing. A magnetic hanger, along with the detachable test leads and alligator clip probe tips, allow you to remote test and perform other tests hands-free. This is the stick meter schools prefer for their HVAC/R students. It s got all the basics and more. VAC, VDC, AAC, ADC, temperature, capacitance (MFD) and a host of other built-in safety features.

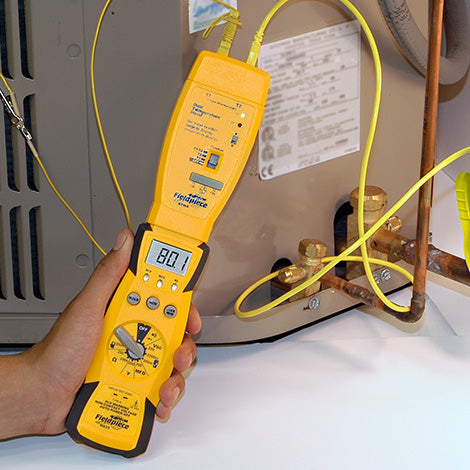

The HS meter series is unlike any other found in HVAC/R. We incorporate a number of safety features, both those you can and can't see, into our meters. In addition, the HS series accepts modular test instrument accessory heads. The HS33 is the first evolution of the stick meter concept. While the function of the meter is similar to the original stick meter line, we ve updated it since its introduction to include a number of features that make the HVAC/R technicians job easier, better and safer.

Non-contact Voltage
With the red NCV tab on the tip of the meter close to an AC voltage, press and hold the NCV button. The NCV LED will light with an analog feel and the beeper will beep. The closer you get to AC voltage, the louder the beep. The NCV function is sensitive enough to detect 24VAC on thermostats. The non-contact voltage feature can be used in conjunction with one probe tip to find which wire is live. With meter set to OFF, place probe tip in red plug as shown below. Hold down NCV while touching each wire, a noticeably louder buzz will sound when you ve touched a live wire.

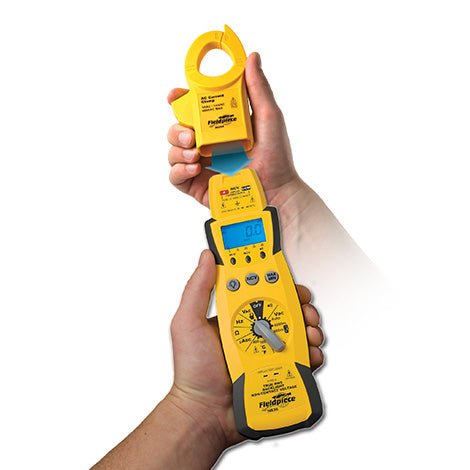

Using the included amp clamp accessory, model ACH4, on the 200 mVAC range allows you to read 0-400 amps directly on your meter with 0.1 resolution. Use it with the detachable test leads to remote the amp clamp and test with the blower door closed for more accurate readings.

For motor-start and motor-run capacitors. Disconnect the capacitor from power first. Short the terminals to discharge the capacitor. Disconnect any resistors that might be between the terminals of the capacitor.

High Voltage and Continuity Indicators
In any VAC/VDC range, when you touch a voltage greater than 30V, the beeper will beep and the red Hi-V LED will signal you. BE CAREFUL! The continuity beeper and green LED tell you if the circuit you re testing is open or closed.

MIN / MAX and Data HOLD
Press MIN/MAX once to begin recording MIN and MAX. Press MIN/MAX to select current reading s MIN or MAX. Hold down for 2 seconds to exit MIN/MAX function. Press HOLD to hold data.

Silicone Leads with Detachable Probe Tips
Because the wire insulation is silicone the leads will stay flexible in cold weather and will not melt if bumped by a soldering iron. When testing electrical circuits with two hands, there is a risk that a careless mistake may complete a circuit through your body and potentially cause death or injury. Detachable probes tips and the modular design of the HS33 allow you to plug V lead tip into the top of the meter, connect an alligator lead tip to COM and ground, and perform a one-hand test more easily than most any meter on the market.

And More:
Rugged ABS case with rubberized bumpers.
Built-in magnetic hanger allows you to test with one hand or no-hands.
Built-in lead storage.
Ergonomic shape fits naturally in your hand.
Auto power-off (APO) to conserve battery life.

Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
Overrange: "OL" mark indication.
Auto power off: 60 minutes.
Operating environment: 32 to 122°F (0 to 50°C) at <70% R.H.
Storage temperature: -4 to 140°F (-20 to 60°C), 0 to 80% R.H. with battery removed.
Accuracy: Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity.
Temperature Coefficient: 0.1×(specified accuracy) per °F/°C. (32 to 64°F (0 to 18°C), 82 to 122°F (28 to 50°C)).
Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
Battery life: 300 hours typical with alkaline.
Accessories: One pair test leads, one pair alligator clips, k-type thermocouple (HS33), 9V battery (installed), and operating instructions.
Safety: UL, CE, Cat III 600V, UL3111, IEC/EN61010-1, C-Tick certified.

Diode Test
Test current: ~1.0mA
Accuracy: ±(1.5% rdg + 3 dgts)
Open circuit volts: 3.0VDC typical
Overload protection: 500VDC or AC rms

Audible indication: Less than 100O
Response time: 100ms
Green LED will be on continuously.
Overload protection: 500VDC or AC rms

Range: 200µF
Resolution: 0.1µF
Accuracy: ±(3% rdg + 5 dgts)
Overload protection: 500VDC or AC rms

DC Volts
Ranges: 200mV, 2000mV, 20V(HS32), 200V
Resolution: 0.1mV
Accuracy: ±(0.5% rdg + 1 dgt)
Input impedance: 560kO on V inputs, 10MO on mV input
Overload protection: 600VDC or AC rms, 500VDC/350VAC rms 15 sec on 200mV range
Transient protection: 6kV for 10µ sec

AC Volts (50Hz - 500Hz)
Ranges: 200mV, 200V, 600V
Resolution: 0.1mV
Accuracy: ±(1.2% rdg + 3 dgts) ±(2.0% rdg + 5 dgts) on 600V range
Input impedance: 560kO on V input, 10MO on mV input
Overload protection: 600V DC or AC rms
Transient protection: 6kV for 10µ sec

Ranges: 200O, 200kO
Resolution: 0.1O
Accuracy: ±(1.0% rdg + 4 dgts)
Open circuit volts: 0.3VDC typical, (3.0VDC on 200O range)
Overload protection: 500VDC or AC rms

Range: -30 to 200°F (-34 to 93°C)
Resolution: 0.1°F/°C
Accuracy: ±1°F, 32 to 120°F (0 to 48°C), ±1% + 1.5°F, -4 to 200°F (-20 to 93°C), ±2% + 3°F, -30 to -4°F (-34 to -20°C).
Sensor type: K-type thermocouple
Overload protection: 60 VDC or 30 VAC rms

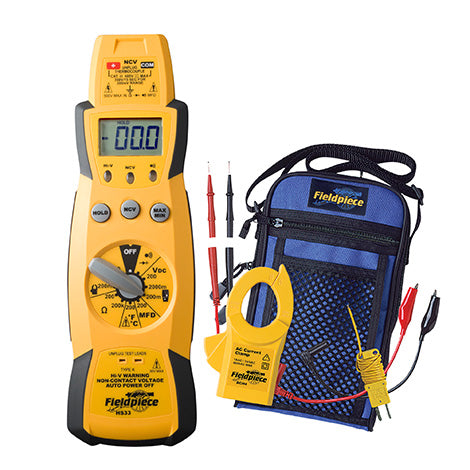

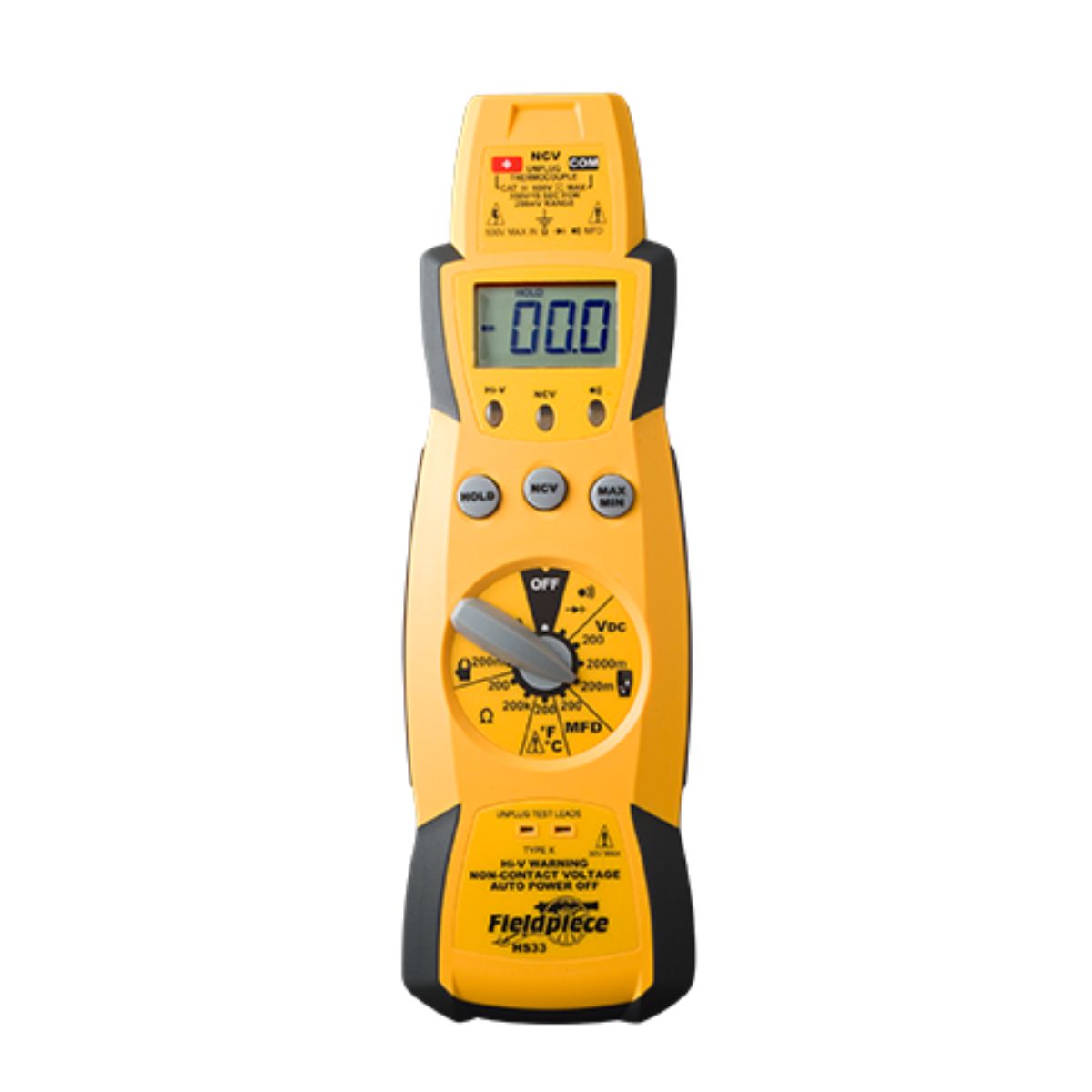

Expandable Manual Ranging Stick Multimeter for HVAC/R - HS33
400A Amp Clamp Accessory - ACH4
Deluxe Silicone Test Leads - ADLS2
Short Alligator Lead Extensions - ASA2
Deluxe Meter Case - ANC1
9-Volt battery (installed)
Operator’s manual
