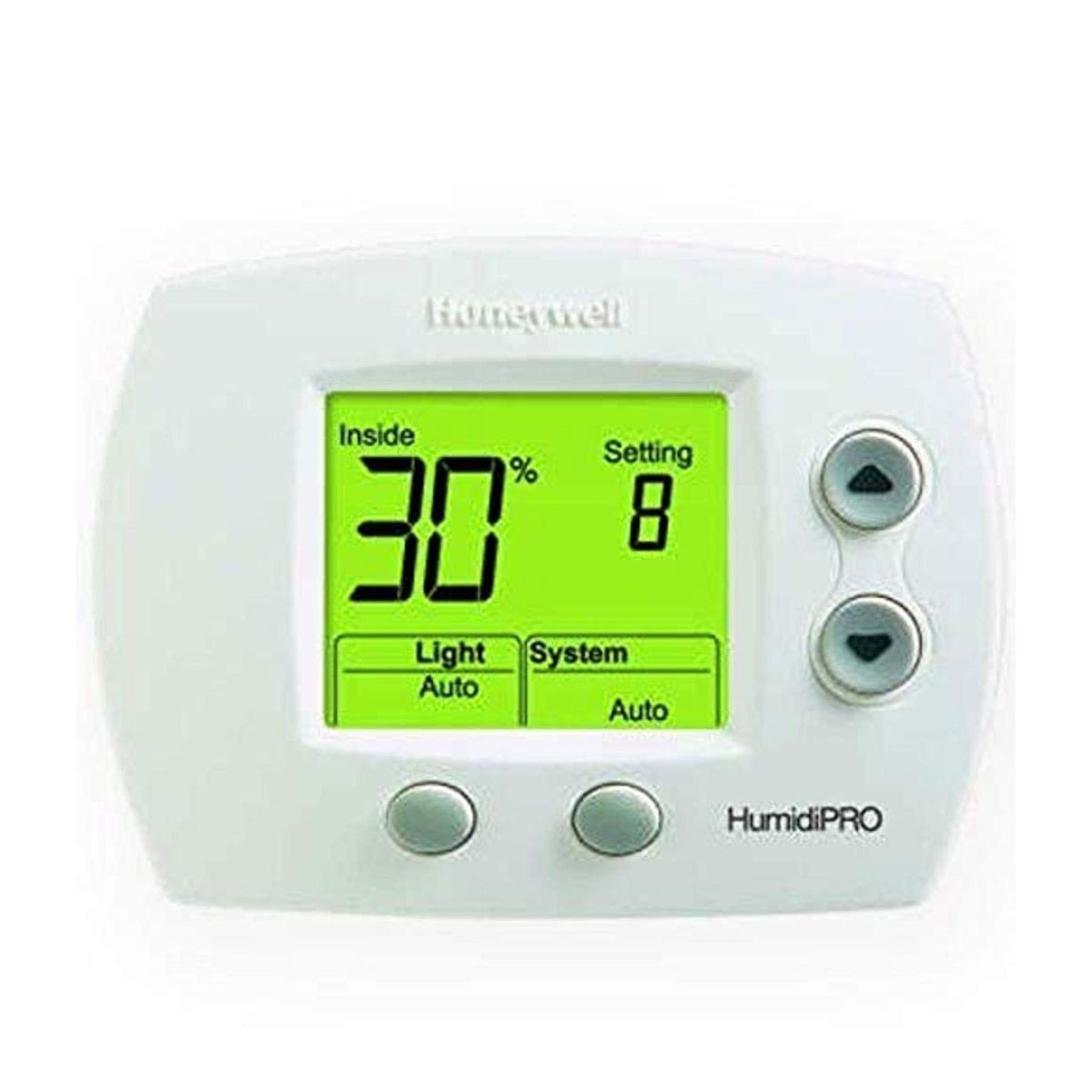

This simple, digital humidification/dehumidification control will automatically adjust settings for changes in outdoor temperature to ensure no condensation will appear on windows. The H6062A1000 controller can be installed remotely on a wall that’s not near windows, doors, or bathrooms. It’s recommended that you install the unit through a wall on the return side of the home’s HVAC ductwork.
Ambient Temperature 32° to 120°F
Mounting N/A
Amperage 0.1 A, 2 VA
Frequency 50 Hz; 60 Hz
Supply Voltage 18 to 30 VAC
Humidity Accuracy +/- 5% RH
Humidistat Type N/A
Electrical Ratings N/A
Warranty 5 years
Differential 4% to 6% RH
Voltage 24 Vac
Display Size 1.32 in
Switch Action N/A
Temperature Range -20°F to 120°F (-29 to 49°C)
Color Premier White
Operating Humidity Range Manual Mode: 10% to 90% RH% (Adjustable) / Auto Mode: 10% to 60% RH% (35% Default)
Short Cycle Protection 0 – 5 minutes; adjustable in 1 minutes increments
- Automatic humidification with included outdoor sensor
- Manual humidification and dehumidification control
- Dehumidifier compressor protection
- Simple, intuitive programming
- RH% and outdoor temperature calibration
- Adjustable high and low range stops (10% – 90%)
- Automatically detects presence of outdoor sensor to set control to Automatic or Manual Mode
