SKU: JL3PC
PRODUCT TYPE: Thermocouples
Features & Specifications
Features & Specifications
Powered by Rapid Rail™ Sensor Technology.
Powerful 1000′ wireless range w/no transmitter required
Needle nose to fit in tight spaces
Stabilizes in 3 seconds with +/- 1° F accuracy
1000′ wireless range
Water resistant
Communicates with Job Link App and Wireless Manifolds (SM380V/SM480V)

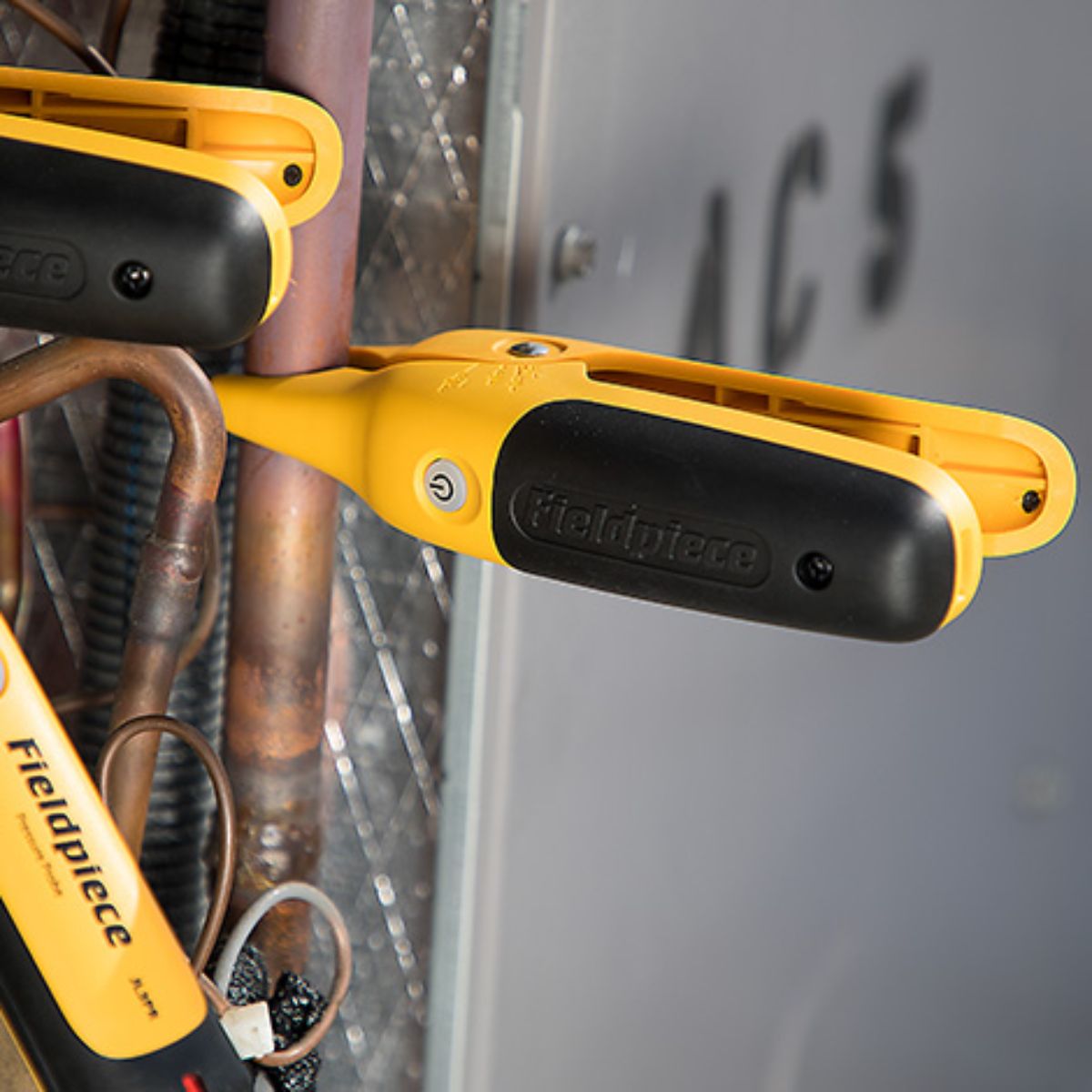

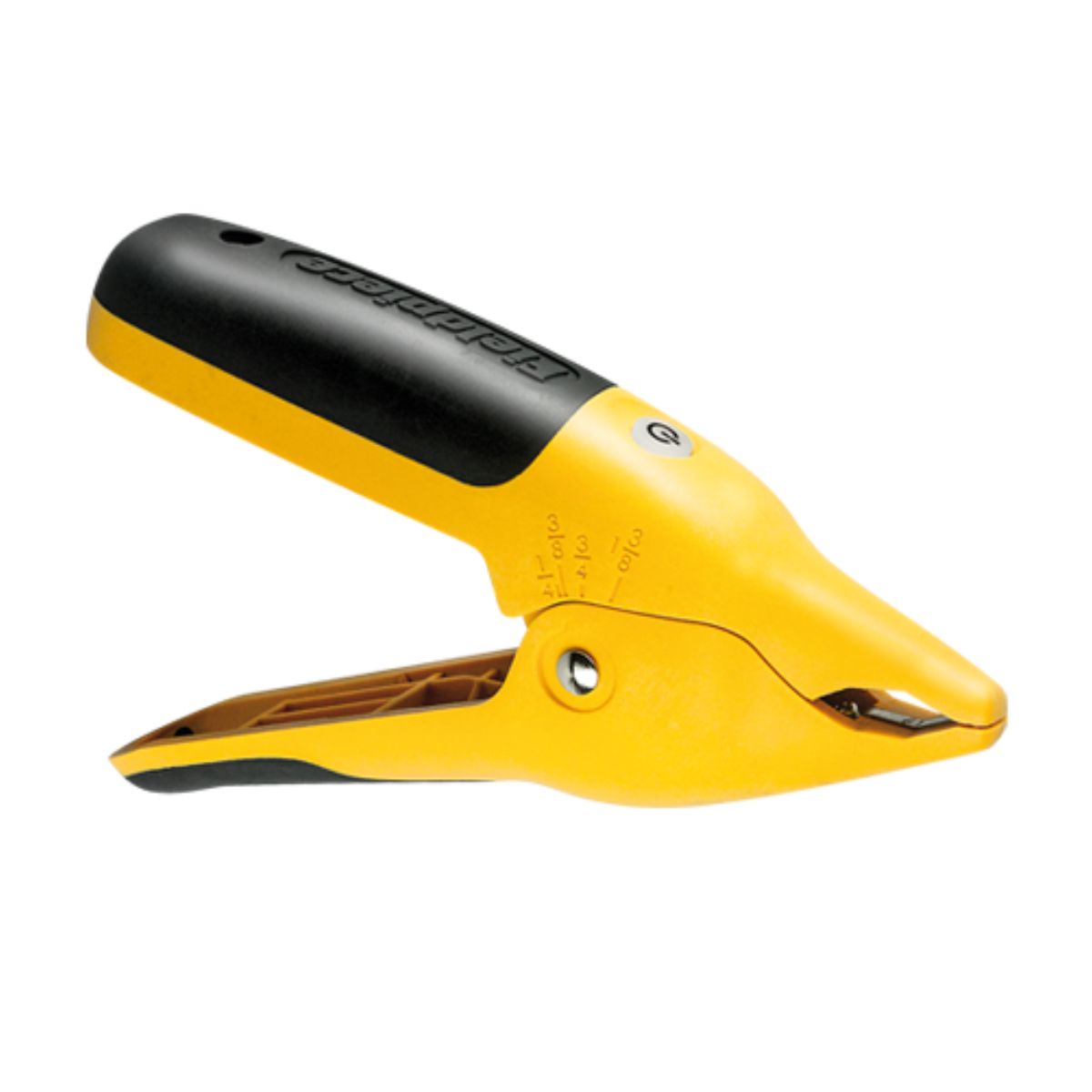

Job Link® System Pipe Clamp Probe – Lightening Fast and Extremely Accurate
The JL3PC pipe temperature wireless clamps feature patent pending Rapid Rail™ Sensor Technology that uses electrically conductive pipe to complete the circuit so readings stabilize in 3 seconds and are not affected by ambient air. One beep with a slow green blinking light indicates a closed circuit. If the pipe is corroded the circuit will be open and will not read temperature. The clamp will indicate the open loop with a double beep and rapid blinking light. Simply clean the pipe to enable the circuit to be closed and allow fast readings with +/- 1° F accuracy.
LED and beep indicate accurate connection
Ambient air conditions do not affect measurements
Narrow jaw connects in tight spaces
Water resistant
1000′ Wireless Range

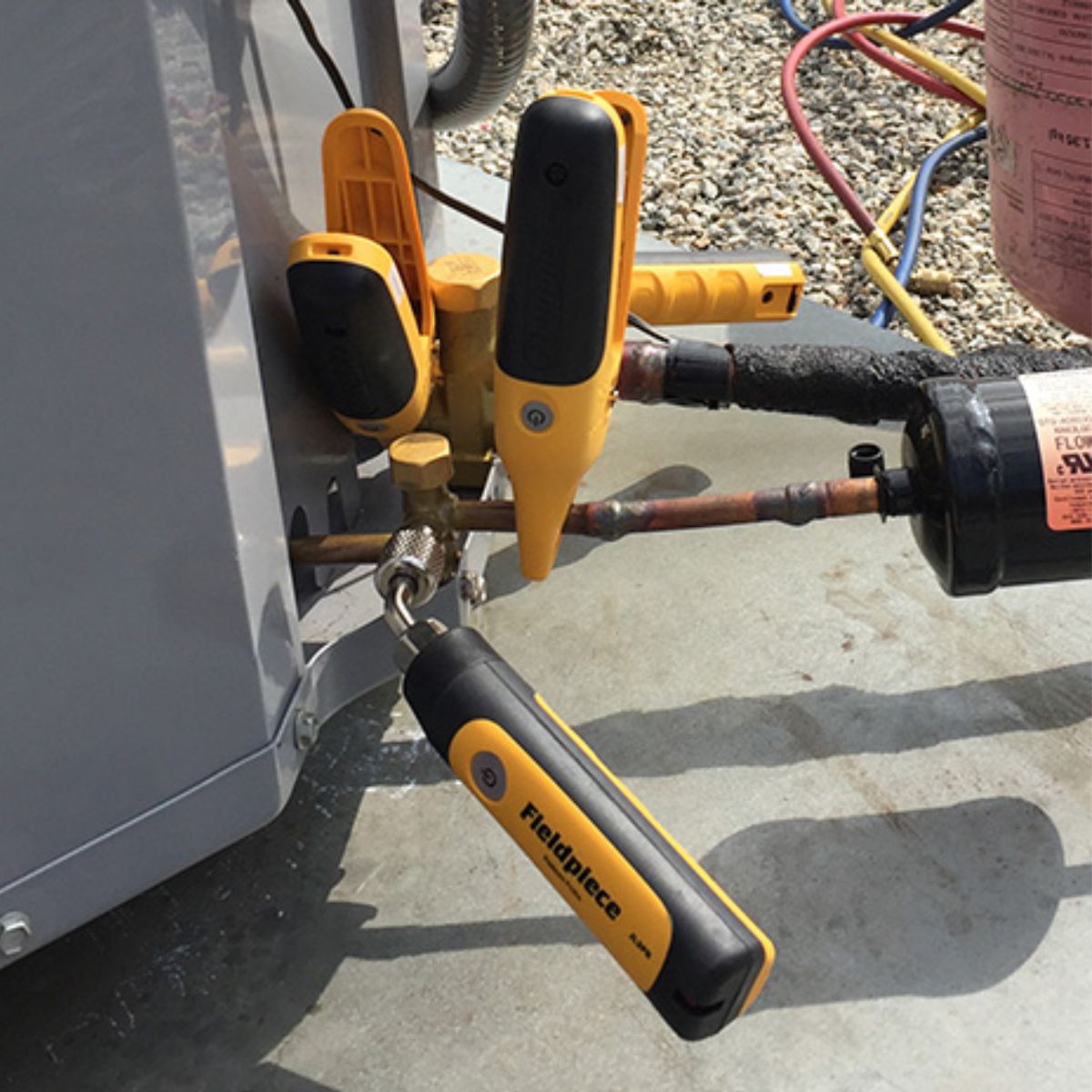

Connect pipe clamps directly to the Job Link app, or connect directly to the new SM380V or SM480V refrigerant manifolds. There is no JL2 transmitter required for either application.
Probes are sold as individuals on it kits: Job Link® System Probes Charge Kit, or Job Link® System Charge and Air Kit.
Includes:
Job Link Premium Pipe Clamp Probe
2 x AAA Batteries
Emery Cloth for Cleaning Pipes
Operator’s Manual
1 Year Limited Warranty
Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0
Pipe Contact Surface Compatibility: Electrically conductive
Pipe Size Compatibility: 1/4" to 1 3/8" (6.4mm to 34.9mm) OD
Sensor Type: Rapid Rail thermocouple (nickel chromium / nickel aluminum)
Measurement Feedback: Beeper and LED
Measurement Range: -50°F to 257°F (-46°C to 125°C)
Stabilization Time: 3 seconds typical
Accuracy: ±1.0°F (±0.6°C) (meets California's Title 24 requirements)
Battery Type: 2 x AAA, NEDA 24A, IEC LR03
Battery Life: 150 hours typical alkaline (LED blinks red when battery replacement is needed)
Auto Power Off: 2 hours (APO can be disabled)
Wireless Range: 350 feet (107 meters) line of sight
Radio Frequency: 2.4 GHz
Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
Storage Temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed)
Temperature Coefficient: 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C)
Weight: 0.33 lbs (150 g)
Water Resistant: Designed to IP55
Patent: Pending
