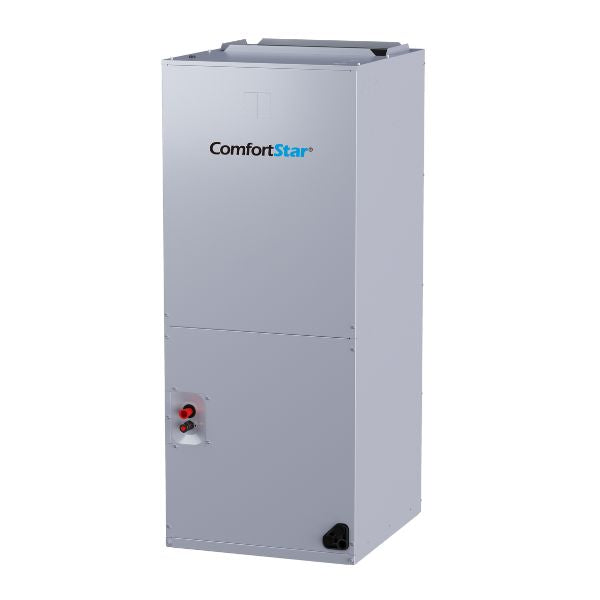

24K LCM5 MULTI-POSITION AIR HANDLER - UP TO 15.2 SEER2
24K LCM5 MULTI-POSITION AIR HANDLER - UP TO 15.2 SEER2
SKU: LCM5-24-15
PRODUCT TYPE: Air Handlers
Refrigerant Type:
R410a
Unit Size - Inches (W x D x H):
18-1/8x20-1/2x41-3/8
Voltage:
208-230v
Air Flow - CFM (Hi / Mi / Lo):
750/940/1320
Tonnage:
2
dB(A) Noise Level (Hi / Mi / Lo):
49
SEER2:
Up to 15.2
EER:
Up to 12
Operating Mode:
Cooling Only
Heat Capacity (BTU):
Field Installed Heater Kits are Optional: 5/ 7.5/ 10/ 15/ 20KW
Cooling Capacity (BTU):
24000
Placement:
Indoor Multi-Position Air Handler Unit
Outdoor Unit Net/Gross Weight (lbs.):
101
Features
Features
• Factory sealed cabinet helps achieve 2% or less on leakage rate.
• Horizontal and vertical condensate pans are standard.
• Blower wheel and coil can easily slide out for easier maintenance.
• Field Installed Heater Kits are OPTIONAL: 5/ 7.5/ 10/ 15/ 20KW.
• Multi-speed, constant torque, ECM blower motor.
• 2-stage fan control.
• AHRI/ETL Certified.
• Mobile Home Certification.
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside.LCM5 COMBINATIONS
