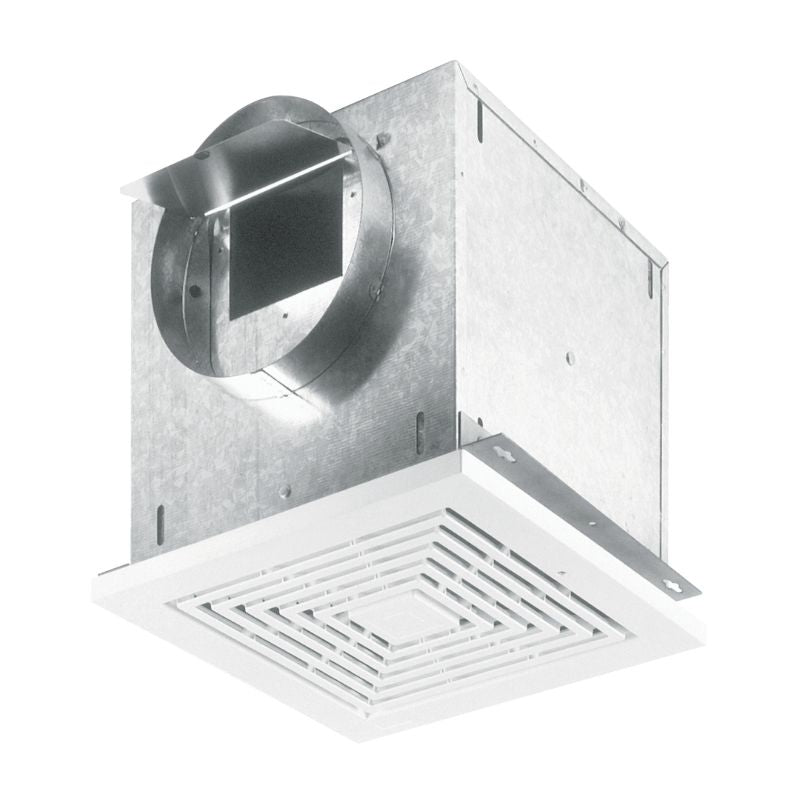

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Overview document for vertical ducting data.
Features:
157 CFM, 1.5 Sones (AMCA), horizontal ducting
Can be ducted horizontally or vertically (160 CFM, 1.6 Sones with vertical ducting). In-line ducting available with separate adapter
6" round duct connector
Low profile, white polymer grille
Single, impact-resistant centrifugal blower wheel
20 gauge galvanized steel housing
UL Listed for use over bathtubs and showers when connected to a GFCI branch circuit
Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)

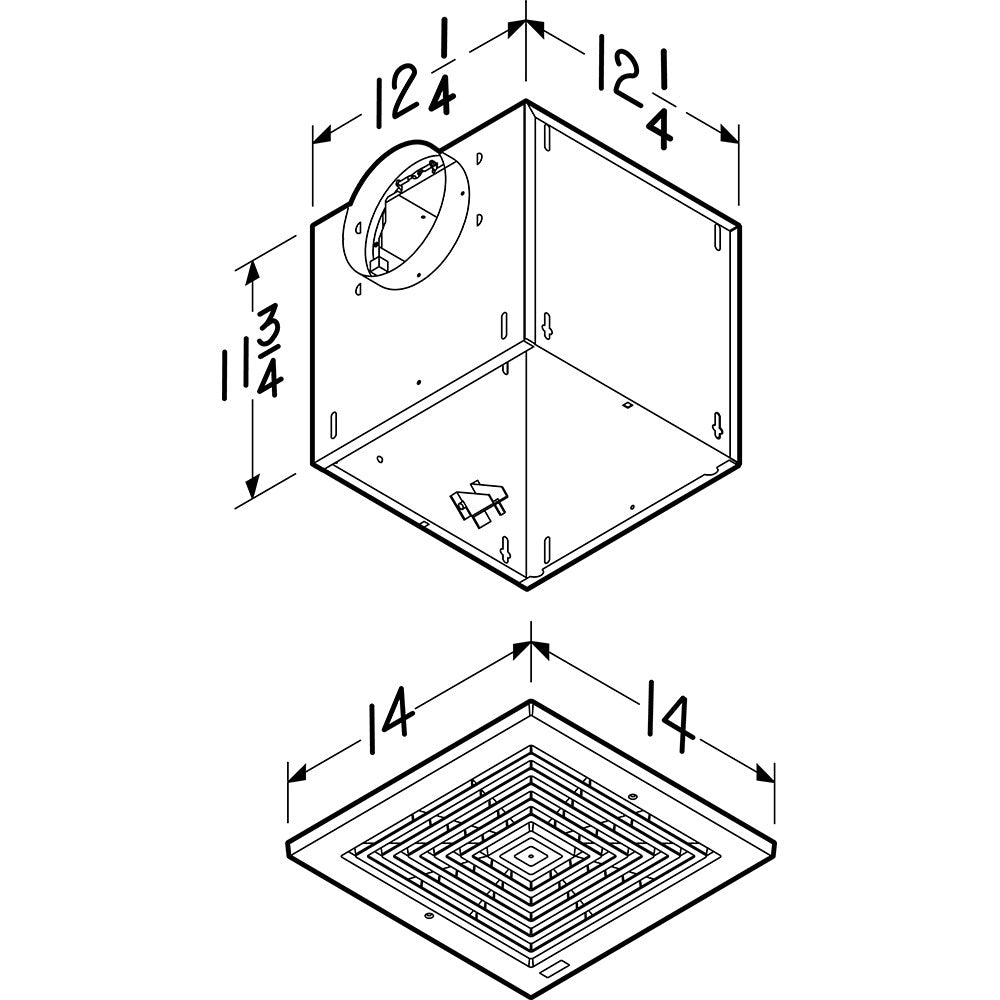

Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"
Grille Dimension: 14" x 14"
