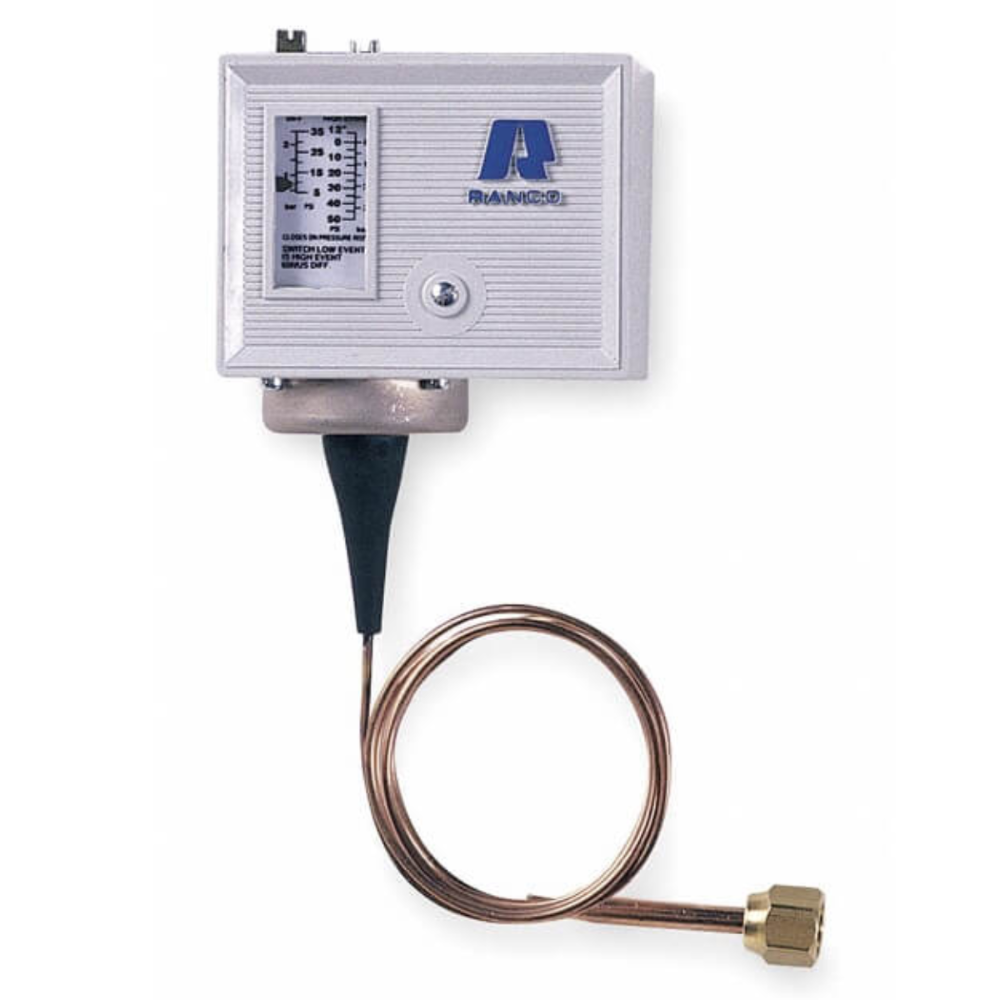

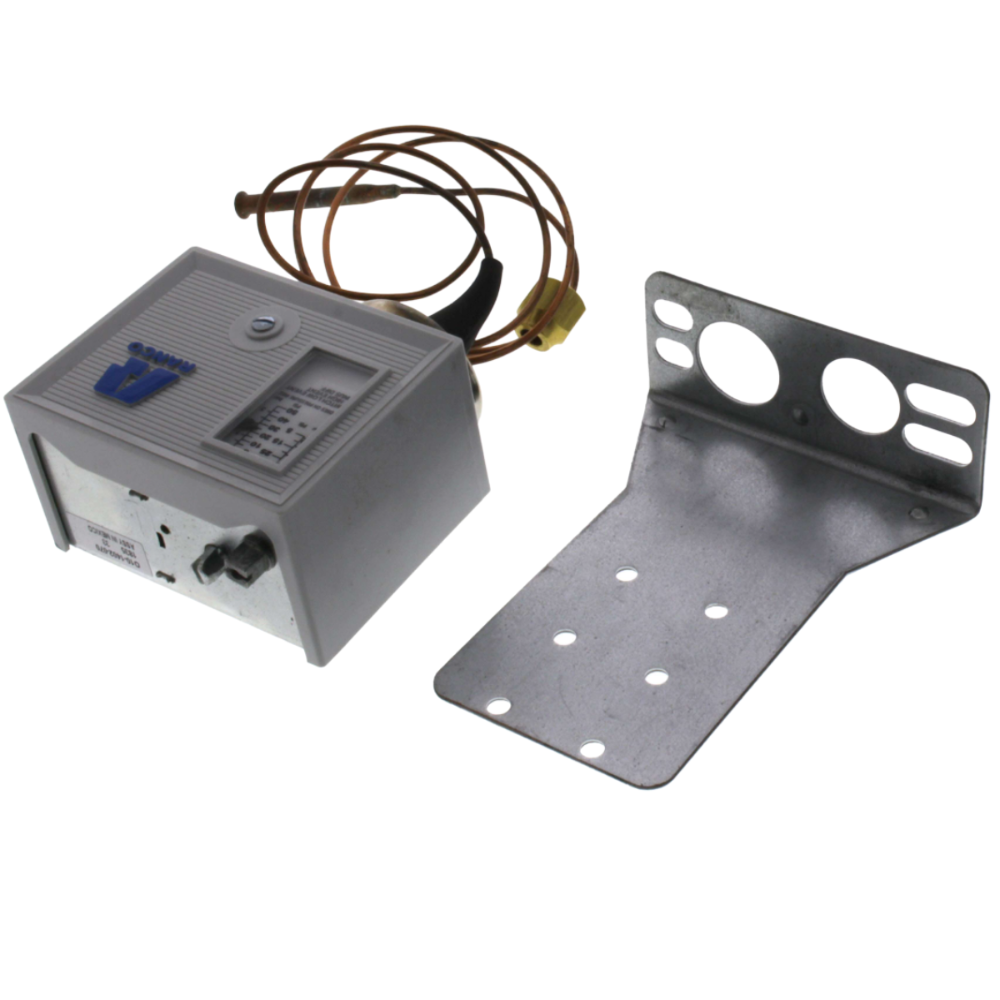

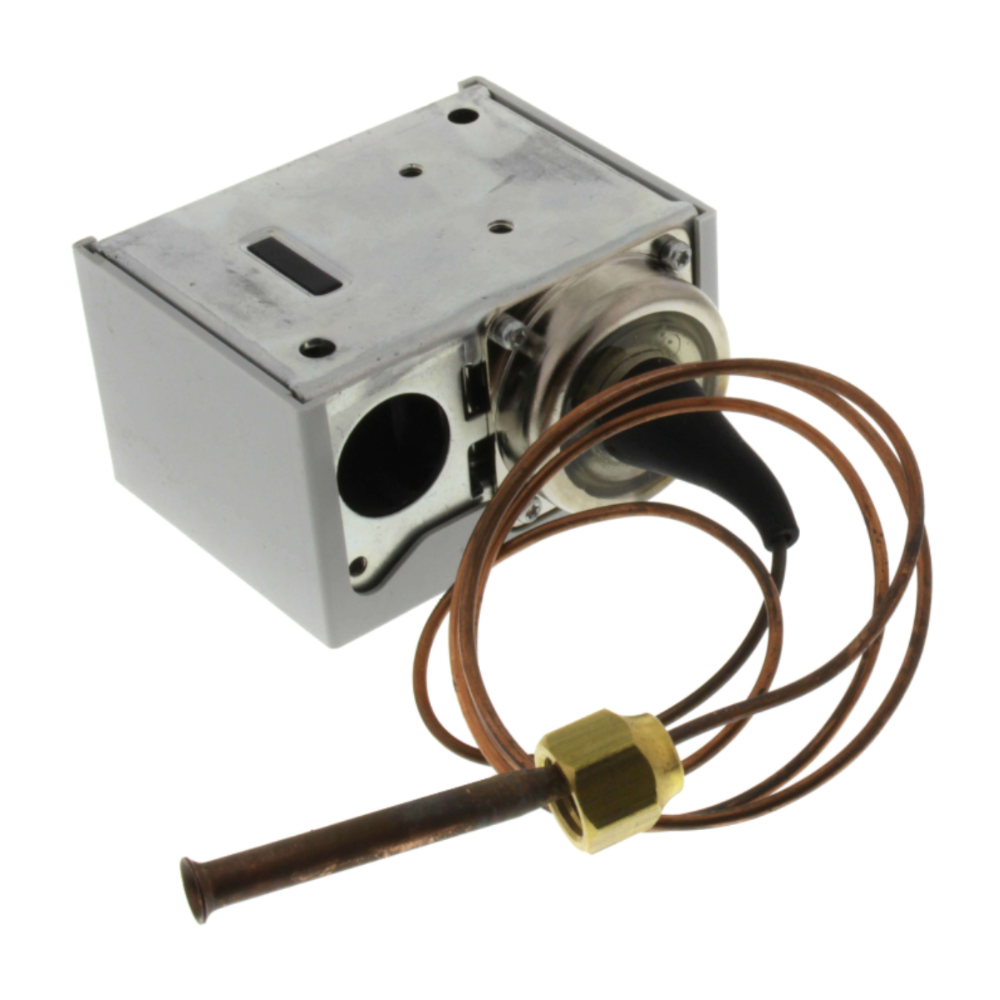

LOW PRESSURE REFRIGERATION CONTROL - 10/150 PSI

O16-166
O Series Pressure Controls
The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

✔ Controls available for most refrigerant types
✔ High-amp rated switch (SPST) design (O10-1402/O10-1483)
✔ Super Cap® capillary vibration protection system
✔ Non-conductive front cover with captive screw
✔ Adjustable differential and range
✔ Easy-to-read scale plate
✔ Vibration cone (absorbs and reduces vibration away from brazed joint)
✔ Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
✔ The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A

Series Application Low Pressure Controls
Capillary Length 36"
Reset Auto
Switch SPDT
Differential 10 to 40 PSI (1 to 3 bar)
Pressure Connection 1/4" SAE flare nut
Pressure Range 50 to 150 PSI (3.5 to 10 bar)
