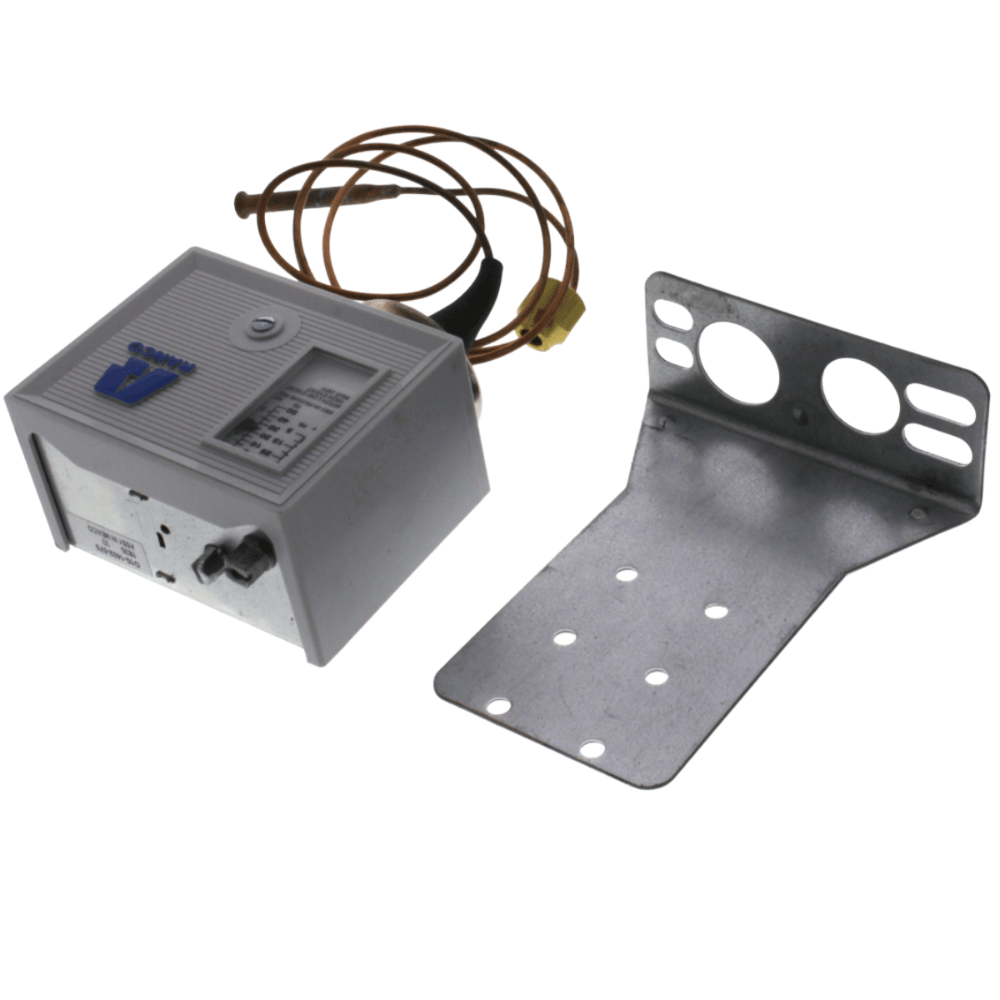

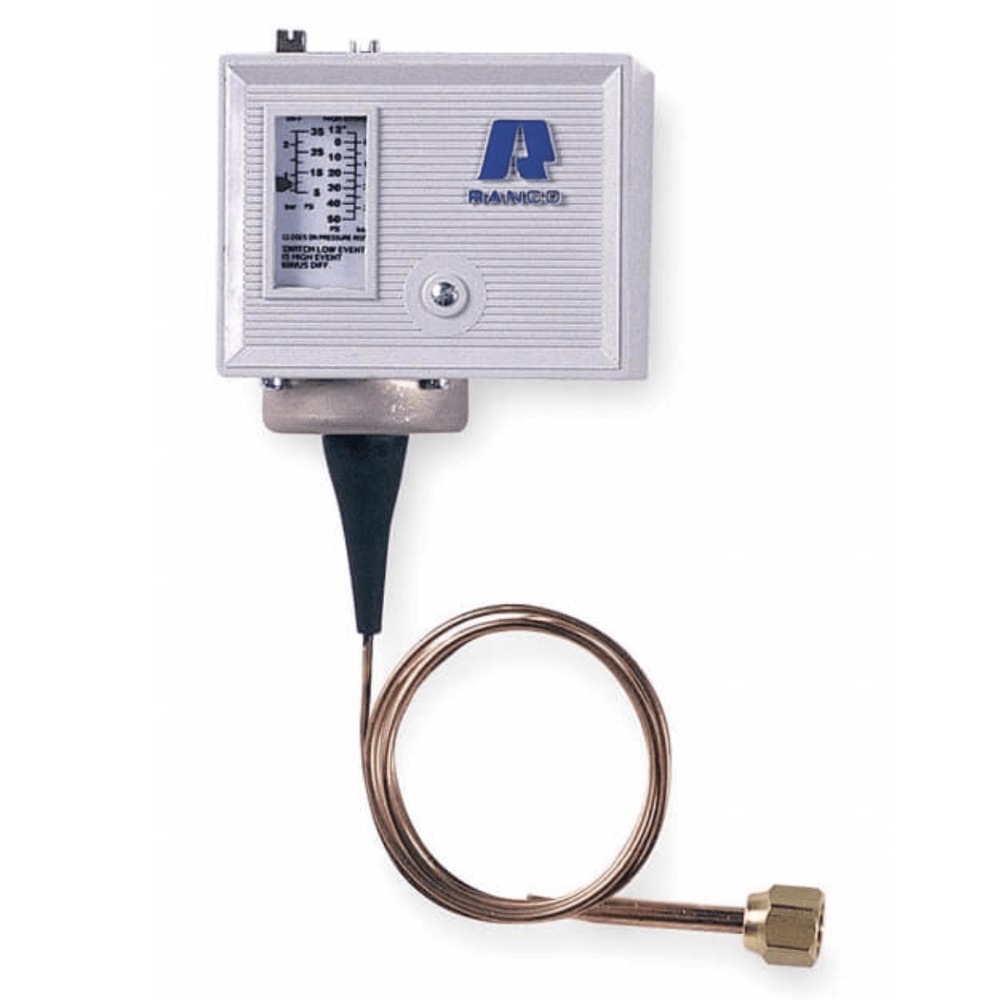

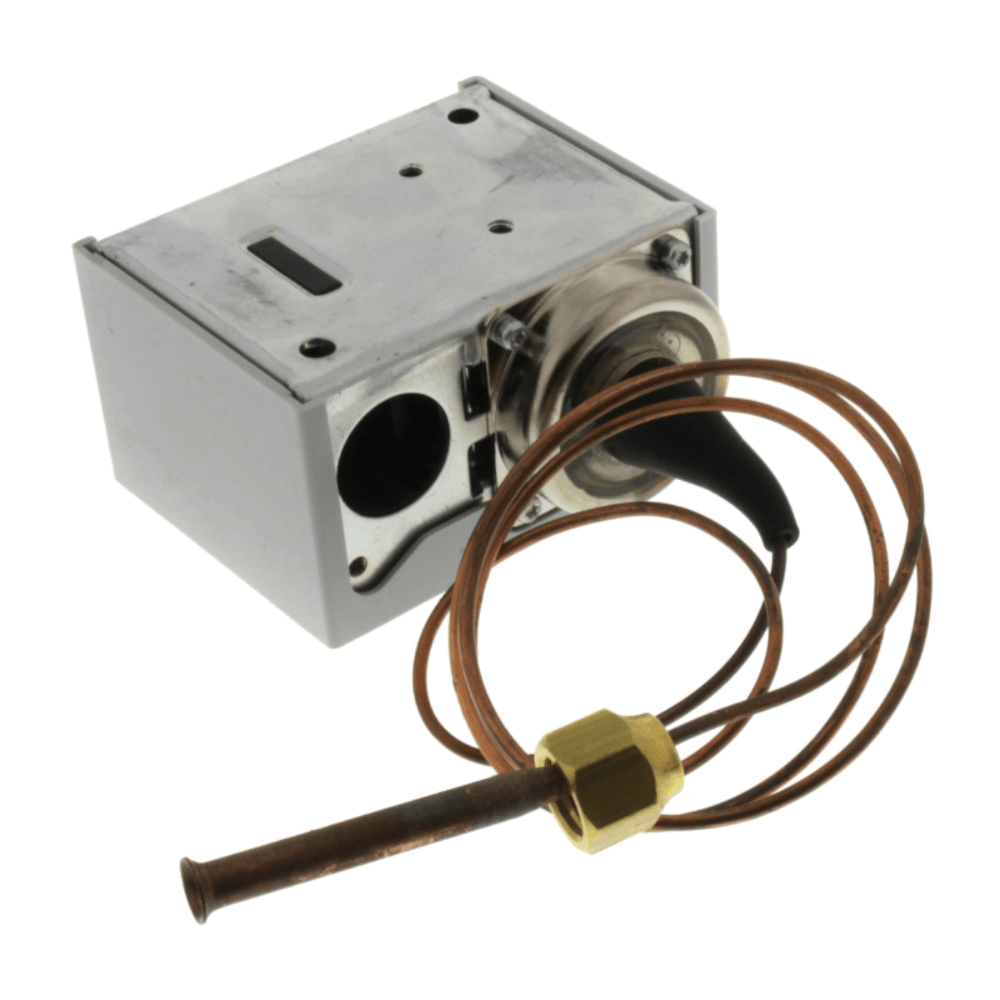

LOW PRESSURE REFRIGERATION CONTROL W/ 12" - 50 PSI - SPST-OPENS LOW

O Series Pressure Controls
The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Series Application - Low Pressure Controls
Capillary Length - 36" (0.9m)
Reset - Auto
Switch - SPST-Opens Low
Differential - 5 to 35 PSI (0.3 to 2.4 bar)
Pressure Connection - 1/4" SAE flare nut
Pressure Range - 12" Hg to 50 PSI (0.4 to 3.5 bar)

✔ Controls available for most refrigerant types
✔ High-amp rated switch (SPST) design (O10-1402/O10-1483).
✔ Super Cap® capillary vibration protection system.
✔ Non-conductive front cover with captive screw.
✔ Adjustable differential and range.
✔ Easy-to-read scale plate.
✔ Vibration cone (absorbs and reduces vibration away from brazed joint).
✔ Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration).

The O16-624 control has additional features:
Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
