MINI-SPLIT SAFE-T-SWITCH

The SS610E Safe-T-Switch Electronic Condensate Overflow Switch is specially designed for use in standard wall mount Mini Split systems.

Safe-T-Switch SS610E for DMSS for installation directly on primary drain pan or clipped to coils above primary drain pan. For ductless mini-splits.

- Sensor connects to indoor units.
- Onboard LED indicator can be mounted to side of unit.
- Univolt input 110-230 Vac.
- IMC Code:307.2.3.1 Water-level monitoring devices.

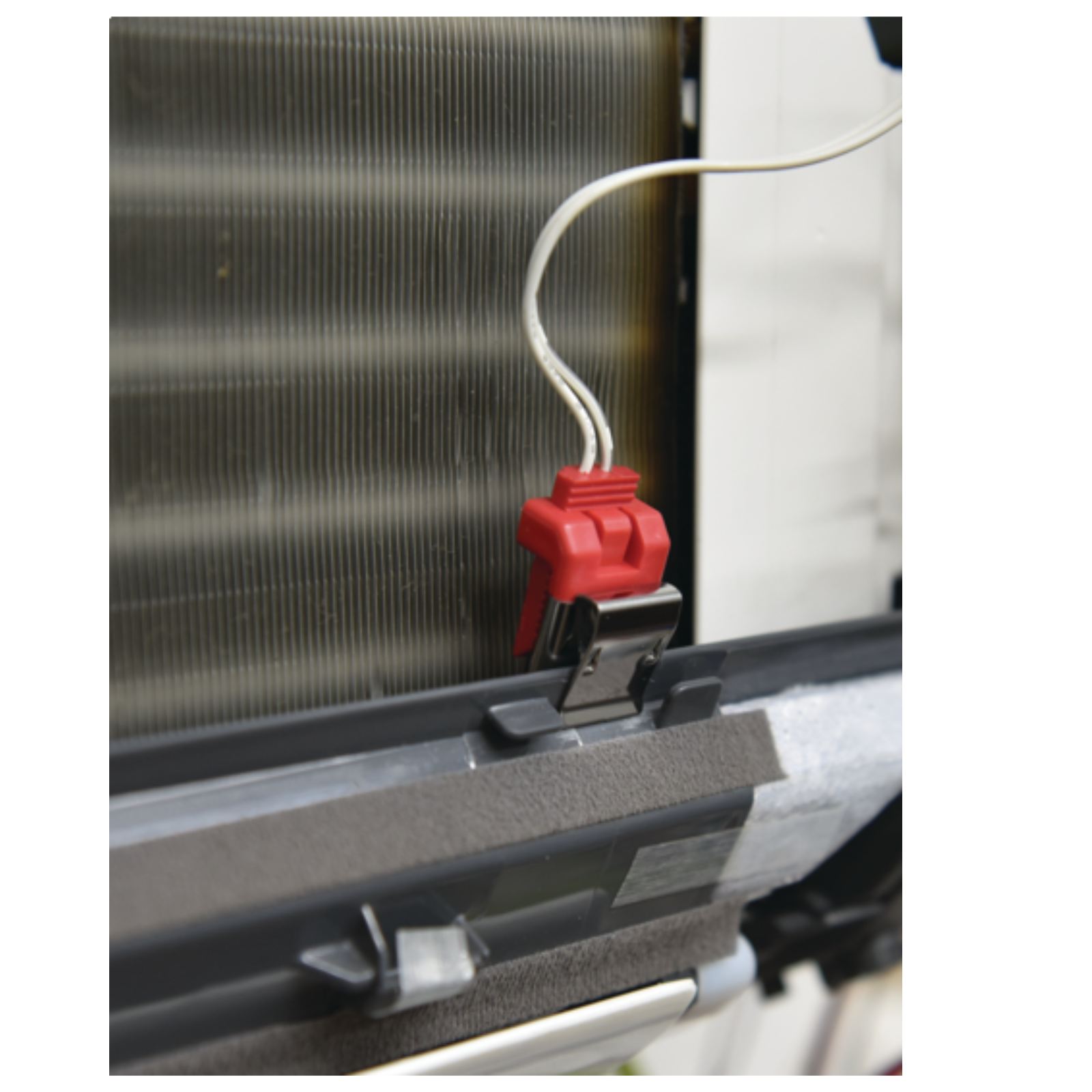

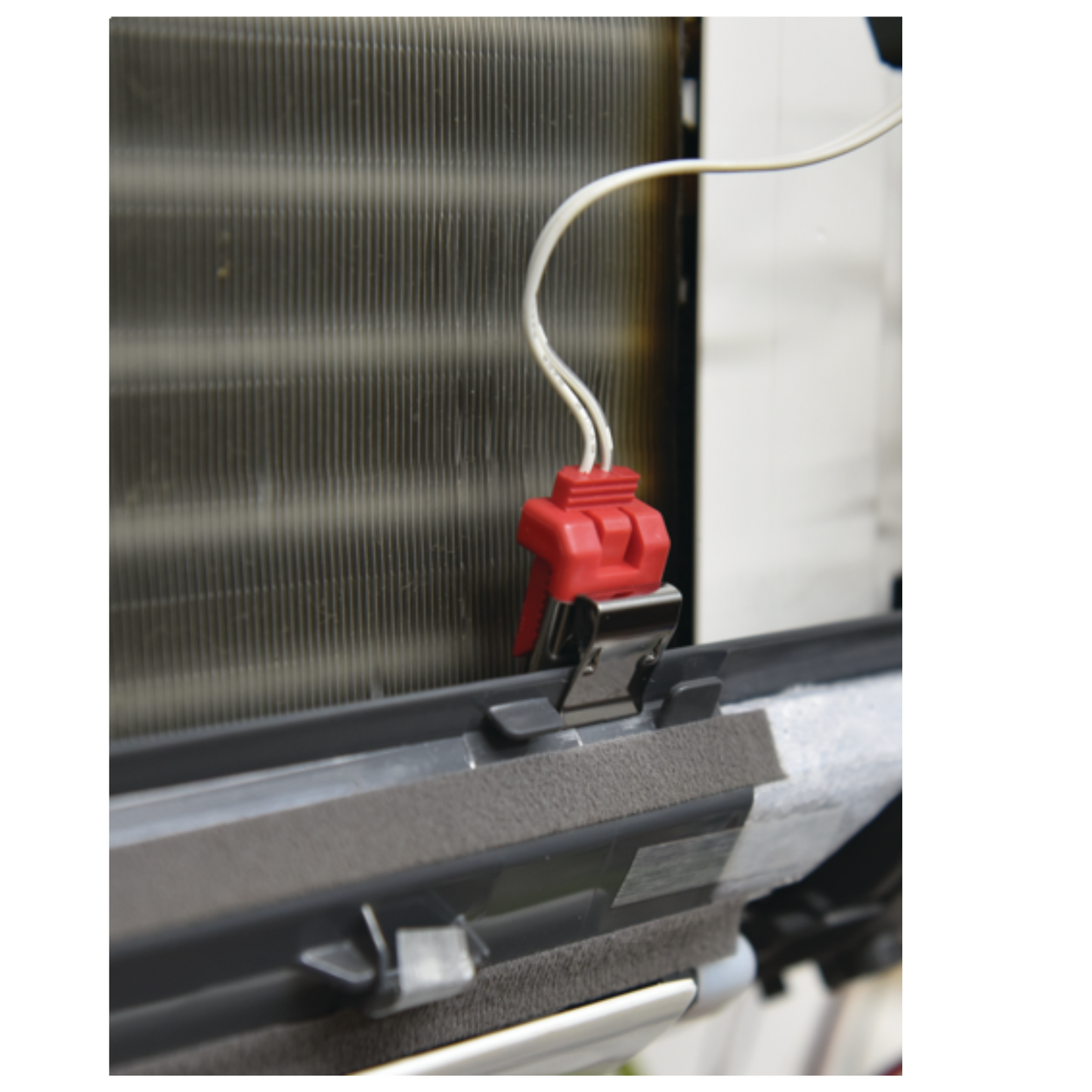

Its small Sensor can easily fit in the confined internal spaces of most units. It can also be installed directly in the Drain Pan or clipped to the unit’s Coils. SS610E’s CPU unit is housed in an attractive casing that can be mounted directly to the side of the unit. It uses power from A/C unit so no batteries are required.

The Electronic Condensate Overflow Switch contains low power consuming, state-of the-art microelectronics. SS610E’s logic circuit continuously samples the probes for water. If water is detected, the circuit determines if the condition is transient or permanent. If permanent, the system will be shutdown. The power will automatically turn back on when the water subsides. Onboard LED’s indicate the condition of the unit.
