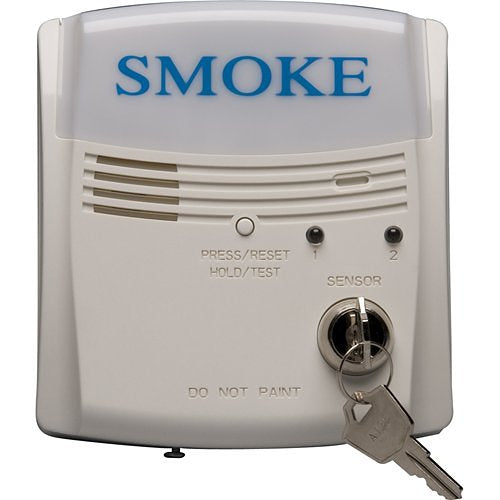

MULTI SIGNALING DUCT ACCESSORY

RTS2-AOS is a multi-signaling accessory, with strobe, designed to work with InnovairFlex 4-wire conventional duct smoke detectors. AOS stands for Add On Strobe.


Technical Specifications:
Dimensions: 4.8"W x 5.3"H x 1.6"D (12.2cm W x 11.9 cm H x 3.8 cm D)
Weight: 0.35 lb. (160 g)
Operating Voltage: 20-29 VDC
Power Requirements: Standby: 3.0 mA max., Trouble: 16.0 mA max, Alarm w/o strobe: 30 mA max, Alarm with strobe: 55 mA max
Connections: Strip terminal, 14 AWG to 22 AWG wire
Wiring Distance: 1000 Feet From Duct Smoke Detector
Sounder: 85 dBA at ten feet
Temperature: 14F to 140F (-10C to 60C)
Humidity: 95% relative humidity; non-condensing
