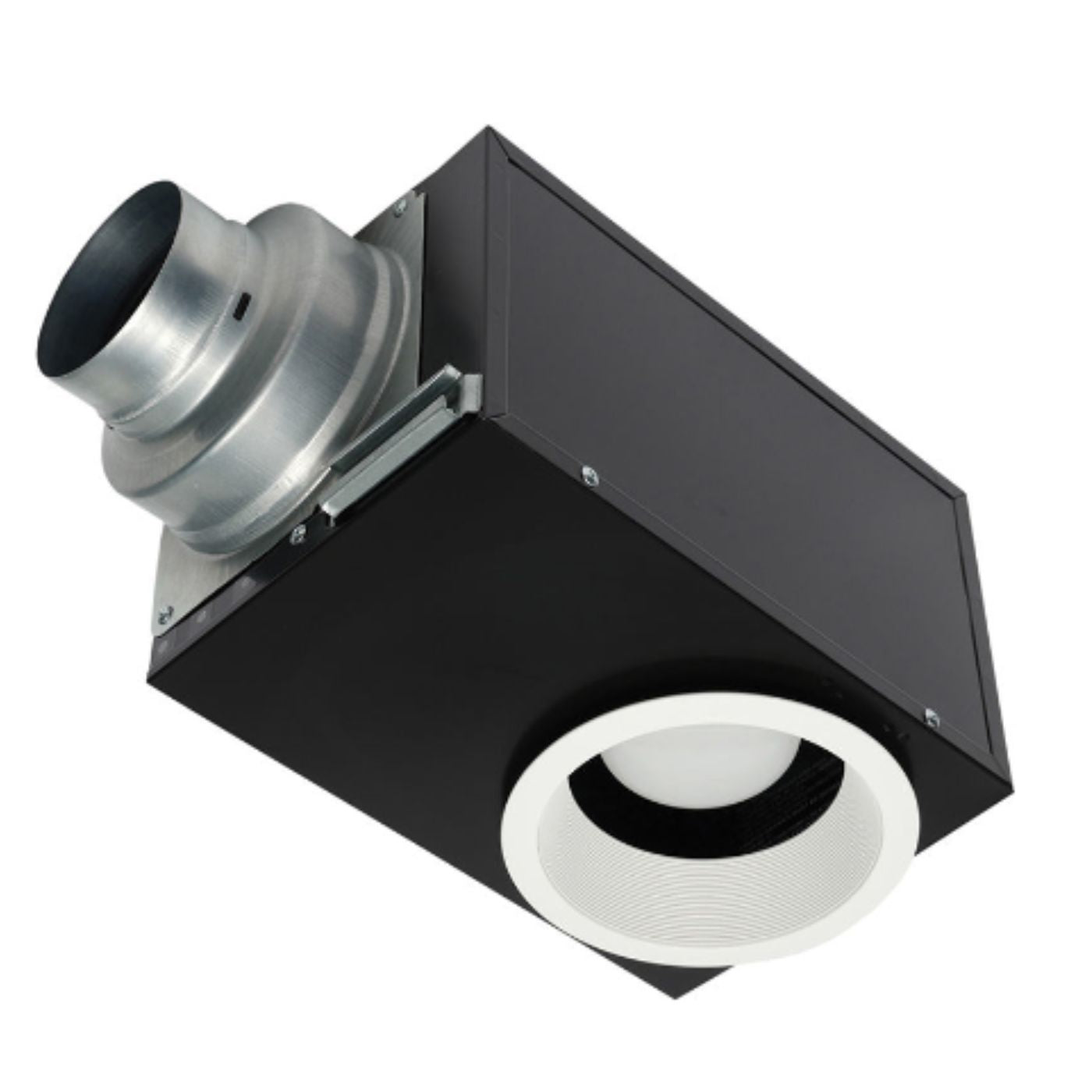

WhisperRecessed LED incorporates a powerful, yet quiet 80 CFM fan behind an elegant recessed LED light. Includes a dimmable 8W, ENERGY STAR® 2.0 certified GU24 base LED lamp, beautiful lighting with 6" aperture and advanced luminaire design. Can be used to comply with the latest codes and standards.
- Architectural grade recessed fan/LED light
- Ideal for use in bathrooms, living rooms or laundry rooms
- Quiet and powerful 80 CFM ventilation hidden above the ceiling
- (1) replaceable 8W, ENERGY STAR® 2.0 certified GU24 base LED lamp
- Beautiful lighting with 6" aperture and advanced luminaire design
Additional info *Can be used to comply with CALGreen when controlled by the Panasonic Condensation Sensor Plus. NOTE: 0.25" w.g. = Installed Performance
Advanced Features Single Speed
Air Volume (CFM) 80, 66
Air Volume Exhaust (CFM) 80 @ 0.1" SP, 66 @ 0.25" SP
Blower Wheel Type Sirocco
CALGreen Yes*
California Title 24 Compliant Yes
CFM 80
Color Rendering Index 92
Color Temperature (Kelvin) 2,700
Construction Type single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling
Current (Amps) 0.15
Ventilation Design Approach Continuous Ventilation. Spot Ventilation
Duct Diameter 4" & 6"
Energy Efficiency (CFM/Watt) 4.4
ENERGY STAR® Certified Yes
Fan Type Fan/Light - LED
Gross Weight (lbs) 10.4
Housing Collar Opening (Inches) 6-1/2" Round
Industry Residential. Light Commercial
Lamp Model # (Green Creative) 8BR30DIM927/GU24
Lamp Watts 1 x 11
Lumens (lm) 720
Lumens Per Watt (LPW) 90
MAX. Current (Amps) 0.19
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) AC
Mounting Options Ceiling Mount (UL). Tub/Shower (UL)
Noise (Sones) 80 @ 0.1" SP = 1.0, 66 @ 0.25" SP = 0.8
Power Consumption (Watts) 18.5
Power Rating (V/Hz) 120/60
Product Family Name WhisperRecessed LED
Rated Life (hours) 25,000
Speed (RPM) 1342 1480 1342
Static Pressure in inches w.g. 0.1, .25
Thermal Fuse Protection Yes
Trim Outer Diameter (Inches) 7-1/4" Round
Type of Lamp Socket GU24
Type of Motor Bearing Ball
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes
