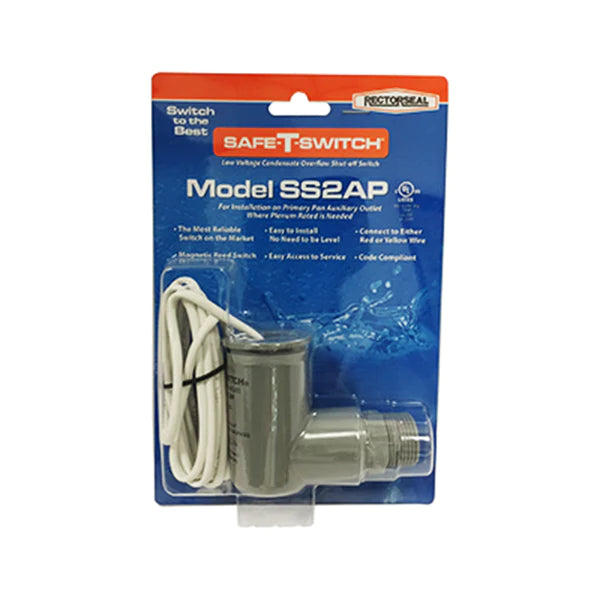

PLENUM RATED SAFE-T-SWITCH

The SS2AP is Plenum Rated and Listed to UL-2043.
Using the 3/4 Inch Adapter, It can be Installed on the Auxiliary Outlet of the Primary Drain Pan.
The Magnetic Reed Switch Allows it to be Installed Off-Center and Still Function Correctly.
Connect to Either Red or Yellow Wire.

Specifications
Item: Condensate Overflow Switch.
Used On Item: Air Conditioner.
Applicable Standard: UL (Canada and US), UL 508, UL. 2043.
Voltage Rating 24 Volt AC.
Current Rating 1.25 Amp Switching Capacity.
Includes 3/4 Inch Slip x 3/4 Inch Threaded 80 CPVC Adapter, 1 Inch x 3/4 Inch Slip Elbow, 72 Inch 18 AWG CMP Lead Wire, Electrically Potted Switch/Cap Assembly
