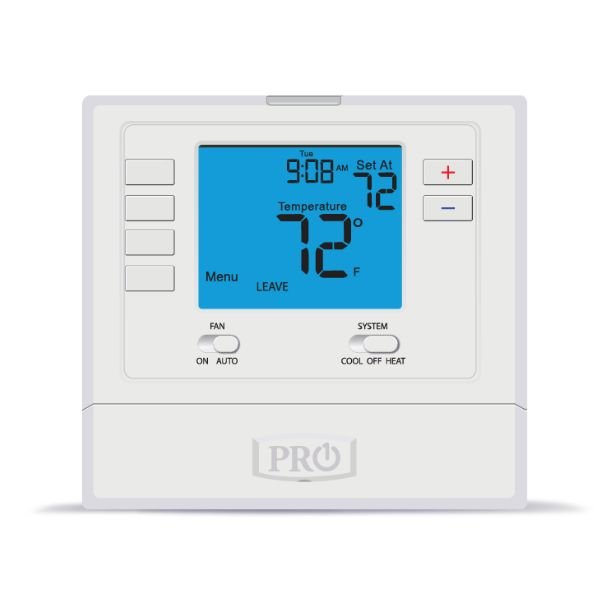

SINGLE STAGE - 1 HEAT, 1 COOL 7 DAY OR 5/1/1 PROGRAMMABLE BATTERY OR HARDWIRE

4 sq. inch display
Blue backlight
Glow in the dark light button
Easy access battery compartment
Electric or Gas configurable
Separate heating and cooling swing (cycle rate) adjustments
Room temperature calibration adjustments
5 minute compressor delay protection (selectable on or off)
Simple private label badge system
Easy wire color coded terminal blocks
Universal sub-base
Mounts on wall or junction box
Battery or 24v power
5 year warranty

The display range of temperature
41˚F to 95˚F (5˚C to 35˚C)

The control temperature range
44˚F to 90˚F (7˚C to 32˚C)

Load rating
1 amp per terminal, 1.5 amp maximum all terminals combined

Display accuracy
± 1 °F

Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F

Power source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Battery power from 2 AA Alkaline batteries

Operating ambient
32° to +105° (0° to + 41°C)

Operating humidity
90% non-condensing maximum

Dimensions of thermostat
4.7"W x 4.4"H x 1.1"D
