STAY-SILV 2% SILVER PHOS-COPPER SOLDER BRAZING ALLOY (28 STICKS PER TUBE)

Low-silver PhosCopper Brazing Alloy
.050" x 1/8" x 20"

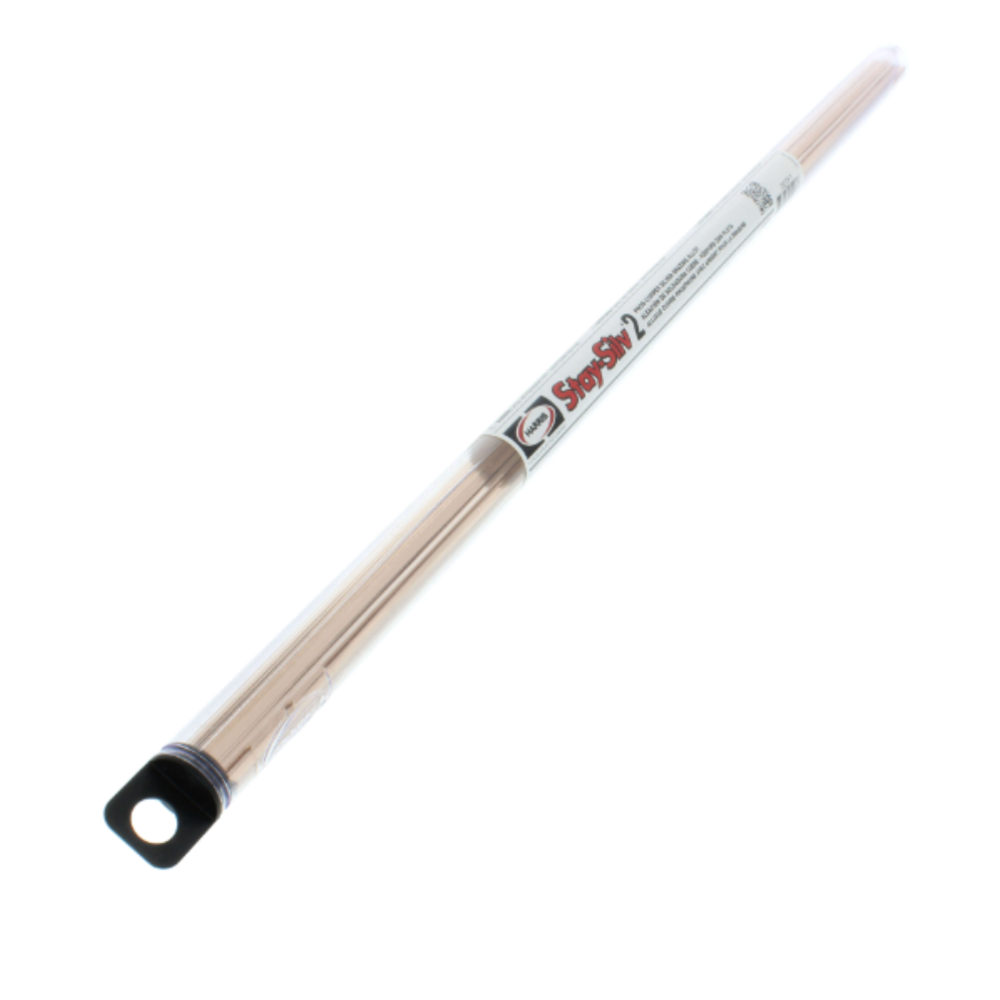

This is a 1 pound Package of 28 Sticks of Harris Stay Silv 2.2% Silver Solder Brazing Alloy. Each stick measures .050" x 1/8" x 19-3/4" long.
This economical, low silver alloy, designed to broaden the melting range of Phos Copper 0, has proven useful in some specific applications where mechanical properties are not critical.

Stay-Silv 2 is an economical, low silver alloy, designed to broaden the melting range of Harris 0. It has proven useful in some specific applications where mechanical properties are not critical.

Stay-Silv 2 brazing filler metal is a medium temperature range alloy for brazing copper, and copper-to-brass.
Economical, low silver alloy, designed to broaden the melting range of Harris 0.
The addition of silver provides an 1190°F solidus, widening the melting range compared to Harris 0
Useful for applications with joint clearances of 0002” – 0005” (005 mm - 013 mm).
Proved useful in some specific applications where mechanical properties are less critical.
Corrosion resistance is generally similar to copper base metal, but phosphorus containing alloys, including Stay-Silv 2, should not be used if the braze is exposed to sulfur or sulfur compounds in service.
For copper-to-copper and copper-to-brass (using Stay-Silv" white brazing flux) applications.
Conforms to the EU Reach & RoHS directive.
