YELLOW JACKET

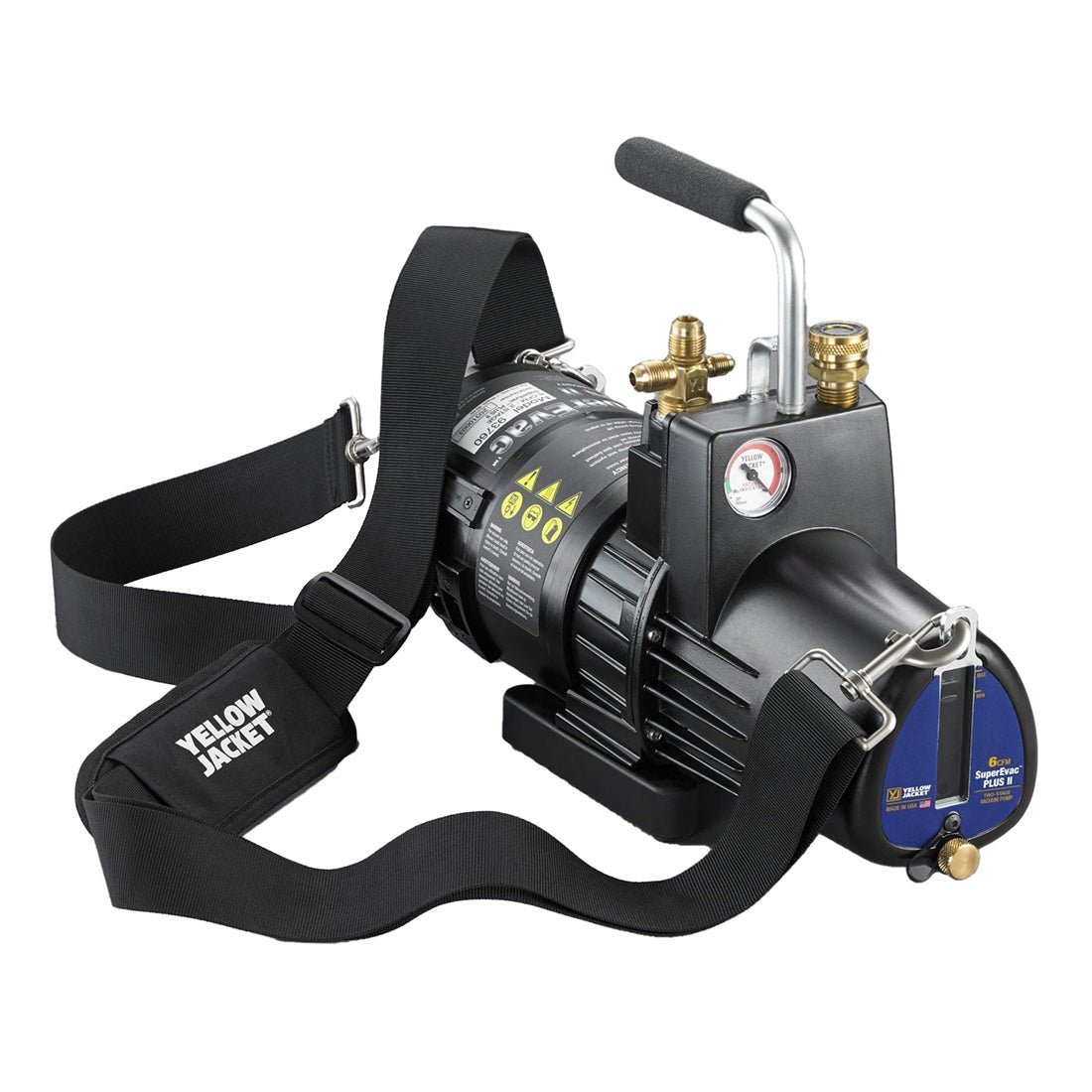

SUPEREVAC PLUS II 1/2 HP 6 CFM TWO-STAGE VACUUM PUMP WITH BRUSHLESS DC (BLDC) MOTOR

SUPEREVAC PLUS II 1/2 HP 6 CFM TWO-STAGE VACUUM PUMP WITH BRUSHLESS DC (BLDC) MOTOR

SKU: 93760

PRODUCT TYPE: Vacuum Pumps

Expedited Shipping

View full details

Features & Specifications

- Designed for use with A2L systems
- Powered by high torque, high efficiency, Brushless DC (BLDC) motor
- High torque performance means power is always there on demand
- High efficiency construction results in long life with less mechanical and electrical stress
- Easily handles supply voltage variations, including low voltage conditions
- Starts and operates in extreme temperature conditions, especially low temperatures
- Compact design is over 20% lighter than AC motor-driven pumps
- Isolation valve allows for oil changes without losing vacuum in the system
- Gas ballast valve keeps oil cleaner, longer during evacuation
- Internal intake check valve prevents oil backup into the system and maintains vacuum during a power failure
- Intake filter screen keeps damaging particles from entering the pump
- Equipped with heavy duty rotors and bearings
- Built-in vacuum indicator gauge
- Wide mouth oil reservoir port for easier, cleaner filling
- Doubles as a pump exhaust - threaded to attach a garden hose for exhausting to a remote location
- Large brass oil drain for easy access to fast oil changes
- Tethered oil drain plug conveniently stays with pump
- Designed with effective oil suck-back valve
- Elongated oil sight glass for easy monitoring of oil level and condition
- Downward angled oil sump to remove contaminants
- Small oil bath requires less oil than other designs
- Built-in cooling fins to cool pump and increase performance
- Non-sparking switch for A2L compliance
- Locking, low-profile IEC connector with 9'10" (3 meter) power cord to prevent accidental removal
- Heavy duty steel handle for well-balanced carrying
- Lift hook for hoisting pump to rooftops
- Convenient shoulder strap for easy carrying over long distances with built-in mount points

Specifications:
Free air displacement: 6 CFM
Number of stages: 2-stage rotary vane
Field blankoff: 15 microns
Intake: 1/2", 3/8", 1/4" Male flares
Motor: BLDC 1/2 hp
Voltage (single phase): 100-127V/220-240V, 50-60 Hz; factory set at 115V
Oil capacity: 36 oz.
Dimensions (L x W x H): 16 x 6 x 11.5 in. (40.6 x 15.2 x 29.2 cm)
Weight: 25.9 lbs. (11.7 kg)
