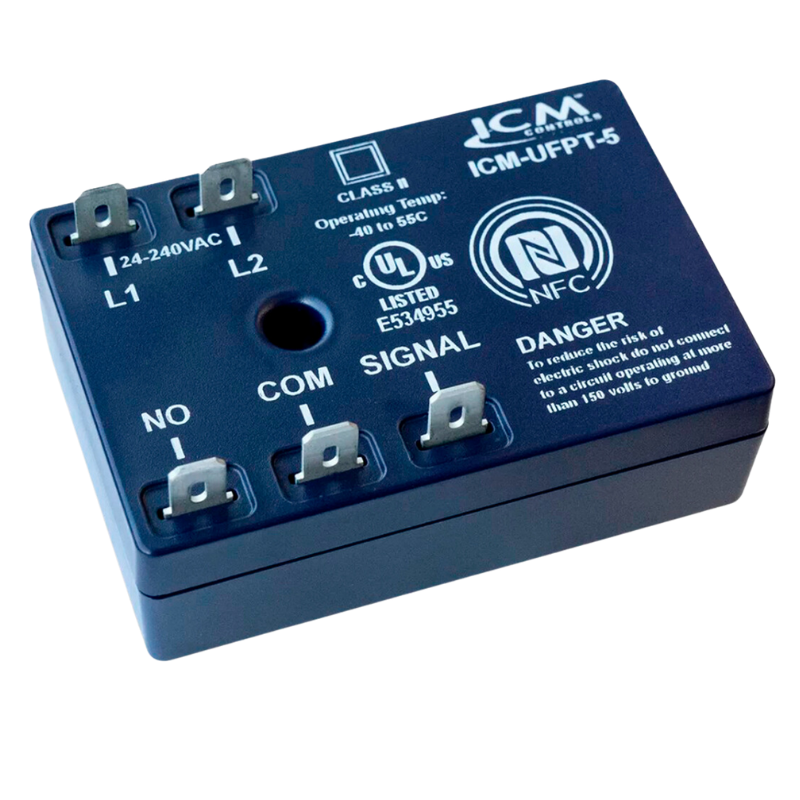

TIME DELAY RELAY, UNIVERSAL CONTROL - 24-240 VAC - SIX TIMER MODES
TIME DELAY RELAY, UNIVERSAL CONTROL - 24-240 VAC - SIX TIMER MODES
SKU: ICM-UFPT-5
PRODUCT TYPE: Time Delays
Features & Specifications
Features & Specifications
What is NFC Technology?
The ICM-UFPT-5 allows the user to establish and adjust desired time delay relay using their mobile phone. More impressively, the user can instantly apply the new set-points to the device without the use of wires via NFC Technology.
Uses near field communication in conjunction with a smart phone App to allow the user to select from six different timer modes:
-On Delay “Delay on Make”
-Anti-Short Cycle “Off Delay on Break”
-Off Delay “Post Purge or On Delay on Break”
-Repeat Cycle “Duty Cycle”
-Interval “Bypass”
-Single Shot
DETAILS:
Universal input voltage 24 -240 VAC
Reduce truck stock inventory
Includes a 5 Amp dry contact output relay for controlling a load directly – no minimum load requirement
Compatible with over 85 legacy ICM timers
NFC technology allows for the user to change timer application on the fly using a smart phone to set up all functionality of the timer including mode and delay time.
Installation instructions, wiring diagrams, and timing diagrams conveniently displayed on the App
Easy installation
SPECIFICATIONS:
Voltage: 24-240 VAC, 10 amp inrush, 40 mA holding current
Frequency: 50/60 Hz
WEIGHT/DIMENSIONS:
Weight: .14 lbs
Height: 2.5″
Width: 5.0″
Length: 7.5″
