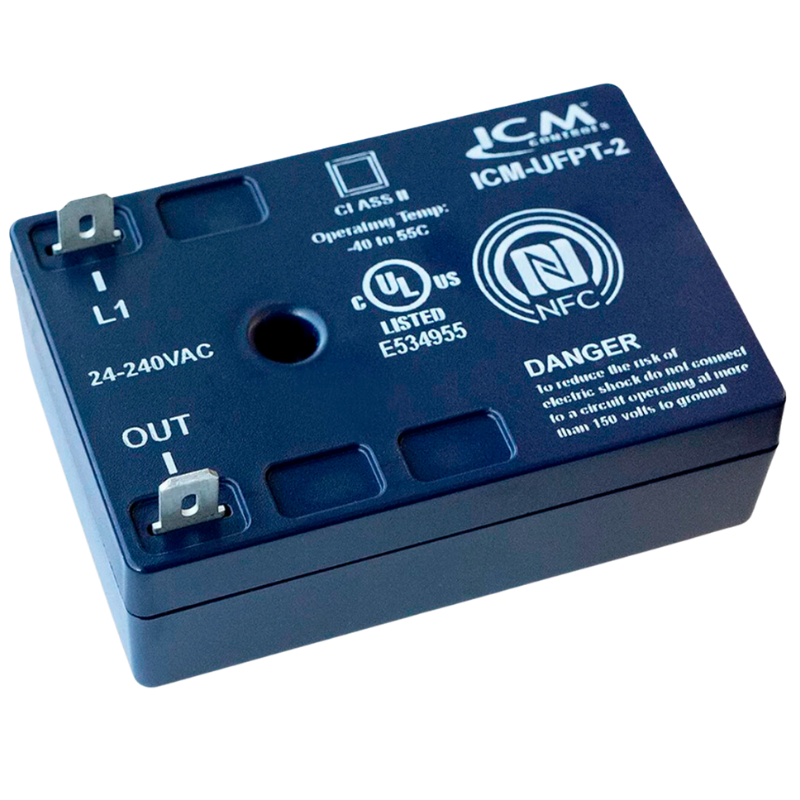

TIME DELAY RELAY, UNIVERSAL CONTROL - 24-240 VAC - FOUR TIMER MODES

What is NFC Technology?
The ICM-UFPT-2 allows the user to establish and adjust desired time delay relay using their mobile phone. More impressively, the user can instantly apply the new set-points to the device without the use of wires via NFC Technology.

Uses near field communication in conjunction with a smart phone App to allow the user to select from four different timer modes
-On Delay “Delay on Make”
-Anti-Short Cycle “Off Delay on Break”
-Repeat Cycle “Duty Cycle”
-Interval “Bypass”

DETAILS:
Universal input voltage 24 -240 VAC
40 ma min load requirement
Reduce truck stock inventory
Compatible with over 85 legacy ICM timers
NFC technology allows for the user to change timer application on the fly using a smart phone to set up all functionality of the timer including mode and delay time.
Installation instructions, wiring diagrams, and timing diagrams conveniently displayed on the App
Easy installation

SPECIFICATIONS:
Voltage: 24-240 VAC, 10 amp inrush, 40 mA holding current
Frequency: 50/60 Hz

WEIGHT/DIMENSIONS:
Weight: .12 lbs
Height: 2.5″
Width: 5.0″
Length: 7.5″
