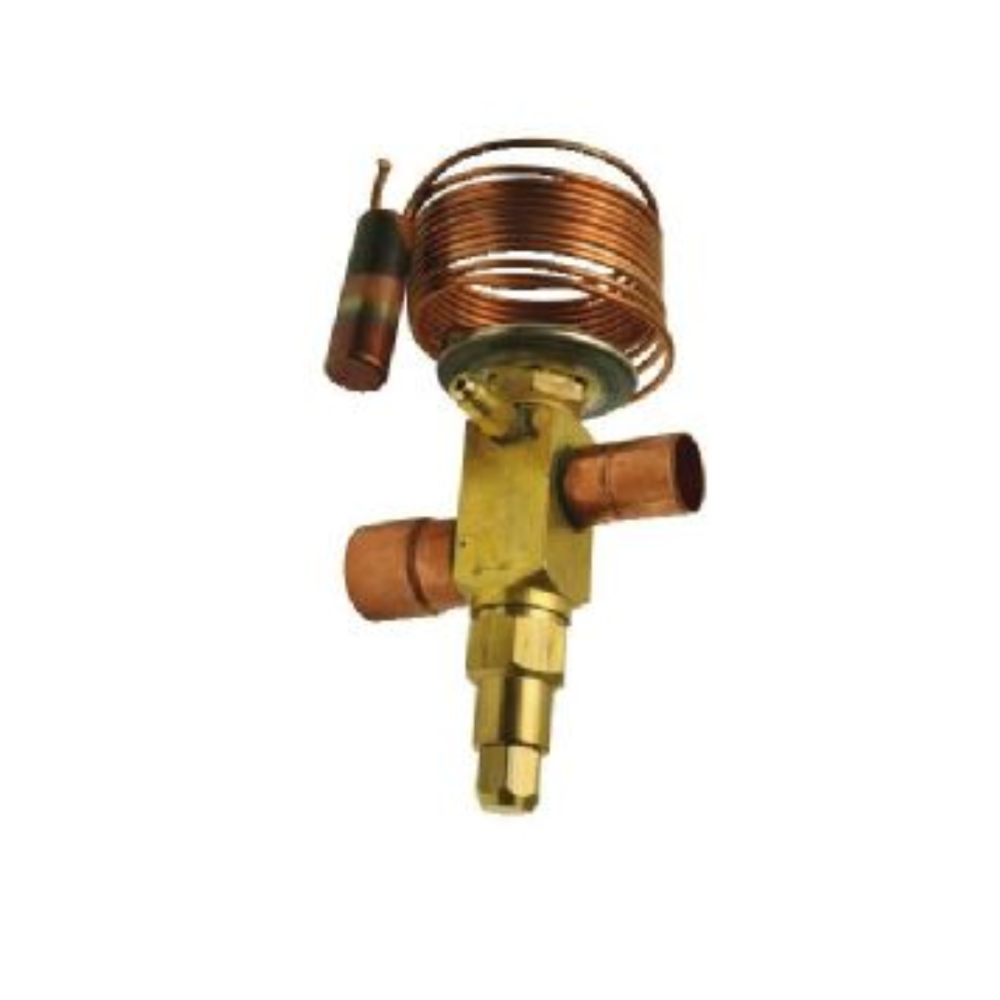

TRAE SERIES LARGE TONNAGE EXPANSION VALVE

TRAE SERIES LARGE TONNAGE EXPANSION VALVE

SKU: 062728

PRODUCT TYPE: Thermostatic Expansion Valves

Tax included.

Expedited Shipping

REFRIGERANT CODE

CAPACITY

(NOMINAL TONNAGE)

CHARGE CODE

INLET X OUTLET CONNECTION

CAP LENGTH

MODEL NUMBER

ITEM NUMBER

H (R-22)

*R-407C

30

C (Med Temp)

1-1/8" X 1-3/8" ODF

10 Ft.

TRAE+ 30HC-04

062728



Specifications Sheet

Installation Manual

View full details

Features & Specifications

TRAE SERIES THERMOSTATIC EXPANSION VALVES

The TRAE Series is a large capacity valve designed for refrigeration, air conditioning, heat pump and chiller applications.

• Suitable for heat pump bi-directional applications
• External superheat adjustment
• Integral body with straight thru connections
• Balanced port construction
• Solid copper connections
• Large diaphragm provides superior stability
• Replaceable power element and cage assembly for full serviceability on TRAE+ models
• Stainless steel power element for TRAE+
• Permanent inlet strainer

SPECIFICATIONS Maximum Working Pressure ....................................................................... 450 psig (31 bar) UR/CUR File Number ................................................................................................ SA5312 Canadian CRN .............................................................................. 0C21506.513467890YTN
