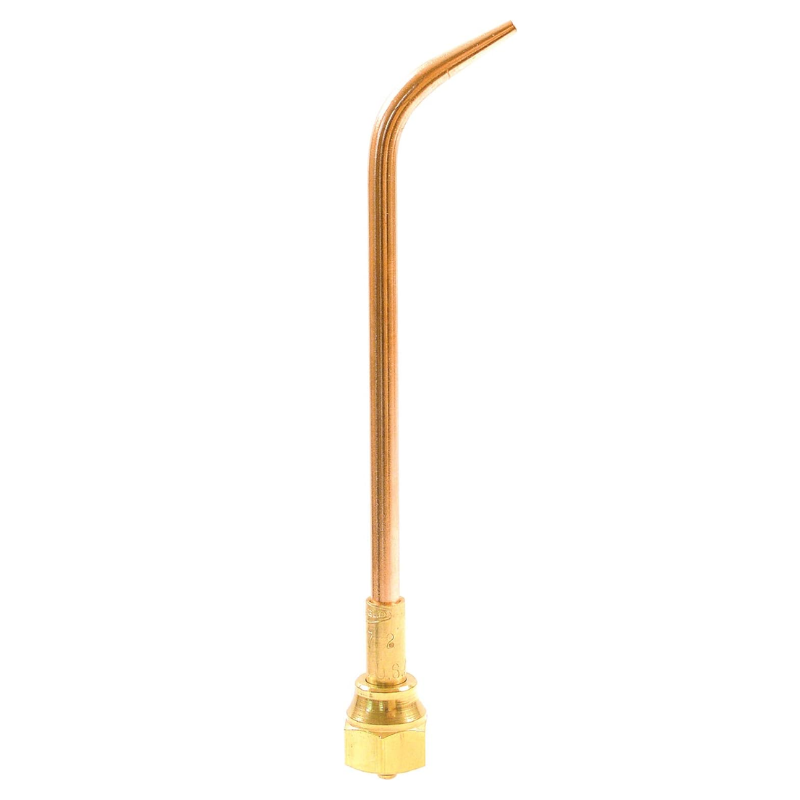

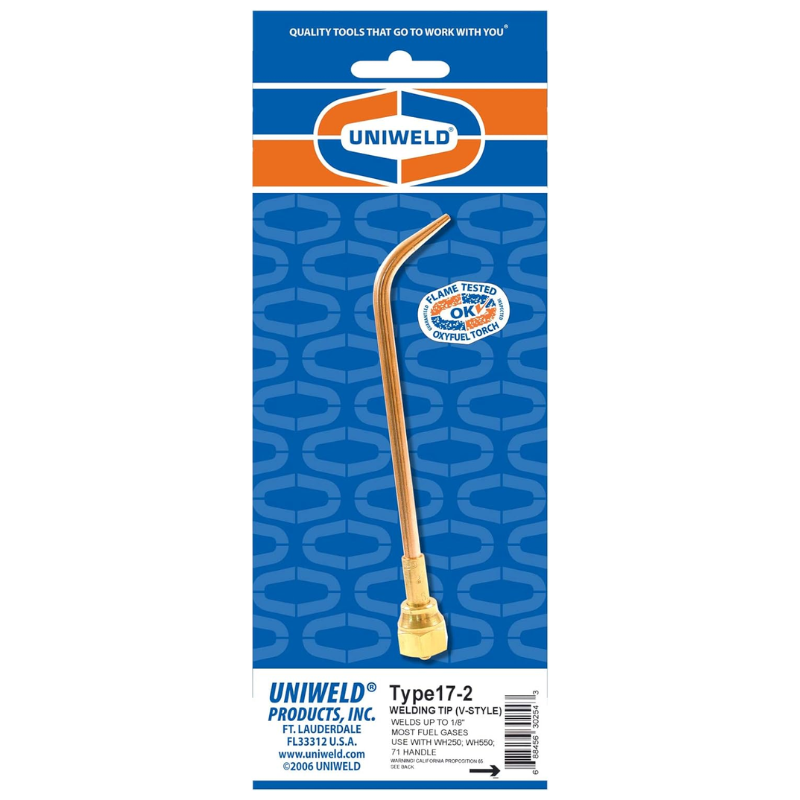

TYPE17-2 WELD/BRAZE TIP COPPER - WELD METAL THICKNESS 1/16”-1/8”

Uniweld Type17-2 weld/braze tip can be used with acetylene, propane, MAP//Pro, and natural gas. Capable of welding 1/8" of metal, and brazing 1" of copper. Tip elbow is copper, mixer and nut are brass. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.

-Proudly Made in the USA and 100% Flame Tested
-Can be used with acetylene, propane, MAP//Pro, and natural gas
-Capable of welding 1/8in of metal and brazing 1in of copper
-Fits the 71 handle or the WH550 handle
-Tip nut only requires hand tightening allowing for quick and easy changing of tips

Specifications
Part# TYPE17-2
Elbow/Mixer Thread Spec: 1/4”-27 (M,F)
Weld Metal Thickness: 1/16”-1/8”
Oxygen PSIG: 5
Acetylene PSIG: 5
Acetylene SCFH: 10
