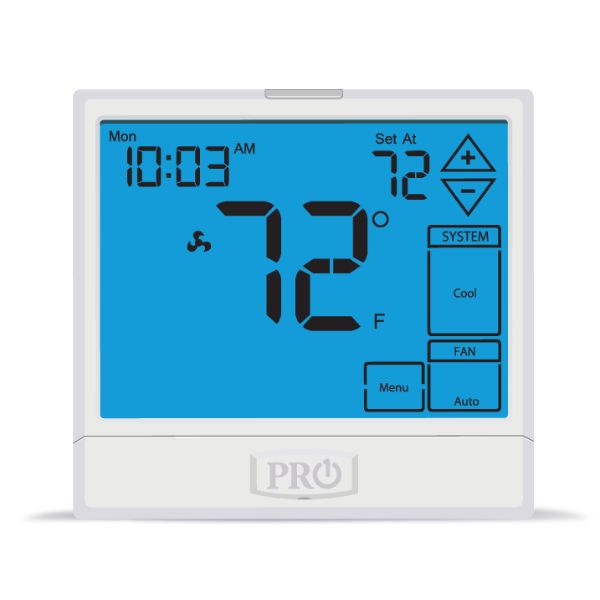

UNIVERSAL - RESIDENTIAL/LIGHT COMMERCIAL - UP TO 2 HEAT, 2 COOL CONVENTIONAL - UP TO 3 HEAT, 2 COOL HEAT PUMP - BATTERY OR HARDWIRE - 7 DAY, 5/1/1 OR NON-PROGRAMMABLE

Touchscreen
7 Day or 5/1/1 programmable
Auto Changeover
Easy menu driven programming
Intuitive wake, leave, return, sleep programming icons
13 sq. inch display
Blue back-light
Glow in the dark light button
Programmable fan
Electric or Gas configurable
Room temperature calibration adjustment
Set duel fuel balance-points*
Keypad lockout
Heating and cooling setpoint limits
5 minute compressor delay protection (selectable on or off)
Filter change indicator(selectable on or off)
Simple private label badge system
Easy wire color coded terminal blocks
Universal sub-base
Mounts on wall or junction box
Battery or 24v power
5 year warranty
Separate heating and cooling swing (cycle rate) adjustments

The display range of temperature
41˚F to 95˚F (5˚C to 35˚C)

The control temperature range
44˚F to 90˚F (7˚C to 32˚C)

Load rating
1 amp per terminal, 1.5 amp maximum all terminals combined

Display accuracy
± 1 °F

Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F

Power source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Battery power from 2 AA Alkaline batteries

Operating ambient
32° to +105° (0° to + 41°C)

Operating humidity
90% non-condensing maximum

Dimensions of thermostat
4.7"W x 4.4"H x 1.1"D
