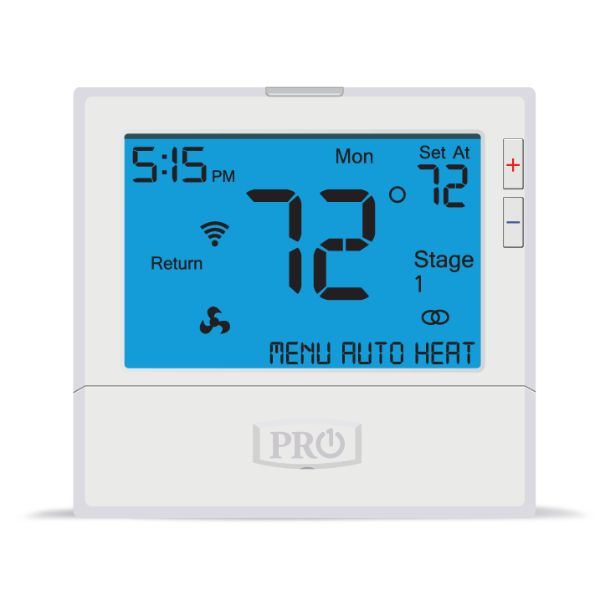

PRO1 IAQ

UNIVERSAL - WIFI RESIDENTIAL/LIGHT COMMERCIAL UP TO 2 HEAT, 2 COOL CONVENTIONAL UP TO 3 HEAT, 2 COOL HEAT PUMP HARDWIRE ONLY 7 DAY, 5/1/1 OR NON-PROGRAMMABLE

UNIVERSAL - WIFI RESIDENTIAL/LIGHT COMMERCIAL UP TO 2 HEAT, 2 COOL CONVENTIONAL UP TO 3 HEAT, 2 COOL HEAT PUMP HARDWIRE ONLY 7 DAY, 5/1/1 OR NON-PROGRAMMABLE

SKU: T855-I

PRODUCT TYPE: Programmable Thermostats

Expedited Shipping

View full details

Features & Specifications

7 Day, 5/1/1 or Non-progammable
Auto Changeover
Easy menu driven programming
Intuitive wake, leave, return, sleep programming icons
8 sq. inch display
Blue backlight
Glow in the dark light button
Programmable fan
Electric or Gas configurable
Room temperature calibration adjustment
Separate heating and cooling swing (cycle rate) adjustments
Keypad lockout
Heating and cooling setpoint limits
5 minute compressor delay protection (selectable on or off)
Filter change indicator(selectable on or off)
Simple private label badge system
Easy wire color coded terminal blocks
Universal sub-base
Mounts on wall or junction box
24v power

The display range of temperature
41˚F to 95˚F (5˚C to 35˚C)

The control temperature range
44˚F to 90˚F (7˚C to 32˚C)

Load rating
1 amp per terminal, 1.5 amp maximum all terminals combined

Display accuracy
± 1 °F

Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F

Power source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Hardwire Only

Operating ambient
32° to +105° (O° to + 41°C)

Operating humidity
90% non-condensing maximum

Dimensions of thermostat
4.7"W x 4.4"H x 1.1"D
