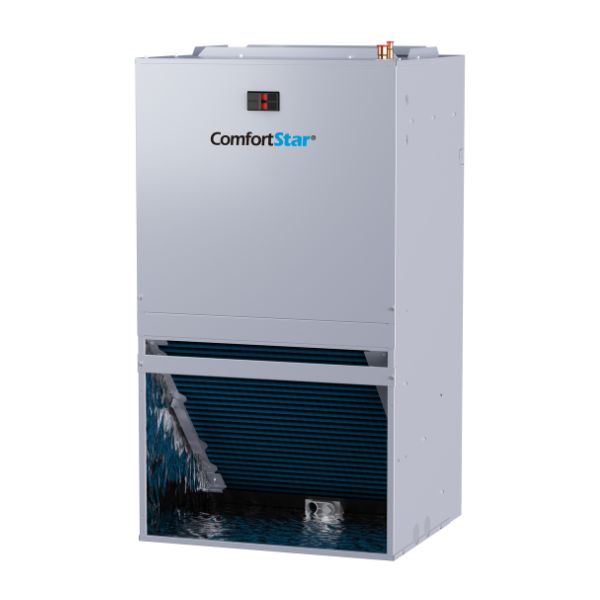

CWM 30K WALL MOUNTED CWM5 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - UP TO 15.2 SEER2
CWM CWM

COMFORTSTAR

30K WALL MOUNTED CWM5 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - UP TO 15.2 SEER2

30K WALL MOUNTED CWM5 ECM AIR HANDLER - FRONT OR BOTTOM RETURN - UP TO 15.2 SEER2

SKU: CWM5-30-15

PRODUCT TYPE: Air Handlers

Free Lift Gate
Tax included.

Expedited Shipping

System Gross Weight: 119 (lbs.)
Click Here to View Product Catalog
Combination Table
View full details
Unit Size - Inches (W x D x H): 22x19x39-1/2
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 1240/1600/1870
Tonnage: 2.5
dB(A) Noise Level (Hi / Mi / Lo): 54
SEER: Up to 15.2
EER: Up to 12
Heat Capacity (BTU): Electric Heat Kit for Field Installation (5kw, 8kw and 10kw)
Cooling Capacity (BTU): 30000
Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit
Outdoor Unit Net/Gross Weight (lbs.): 97/119

Features

• Direct drive multi speed motor
• Multi speed ECM motor
• Thermoplastic drain pan with bottom primary
and secondary drain connections.
• Built-in filter rack.
• Wall-hanging bracket provided.
• Front or bottom return available.
• Optional heating elements of 5kW, 8kW, and 10kW.
• All aluminum coil.
