Features & Specifications

The SRS3 Wireless Refrigerant Scale combines modern wireless electronics and rugged materials to perform at the high level you demand. The platform is made of thick aluminum to maintain accuracy over the life of the product. Rubber pad and bumpers cushion both the tank and the scale itself. A new wireless protocol sends platform measurements to both the included remote display and the Fieldpiece Job Link® System Mobile App. Weight measurements can also be viewed wirelessly on the SM380V and SM480V refrigerant manifolds.

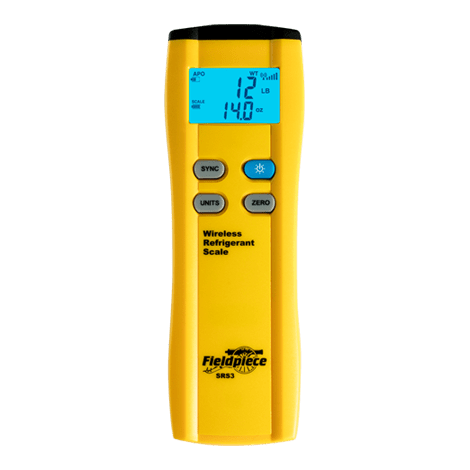

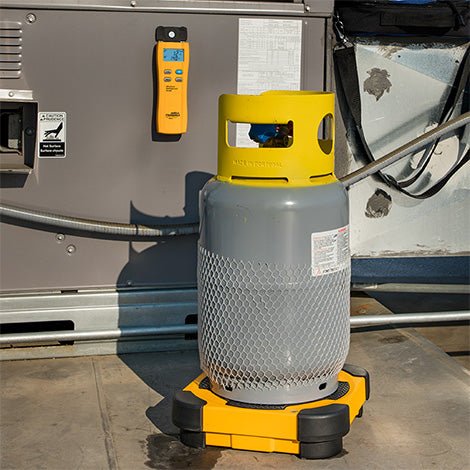

Platform electronics are sealed to block the occasional moisture seen from rain and splashing. Hang the remote display from a condenser or anywhere metallic and easy to see. The magnetic folding hat holds it right where you put it.

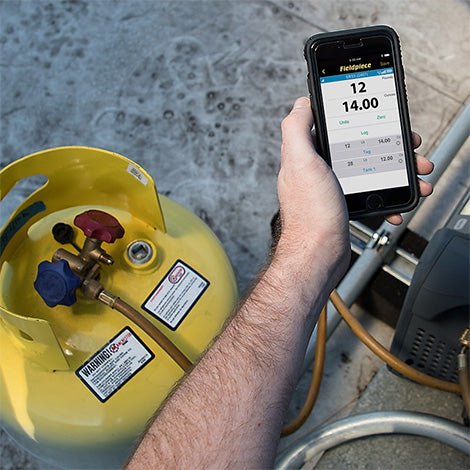

Use the SRS3 wireless scale with the included handle or with Job Link Mobile System app. With Job Link you can receive your live weight measurement directly on your mobile device. Add weight into your Job Link mobile system reports, keep records of refrigerant use, or monitor weight from a distance. Handle wireless range is 1000′, Job Link system mobile range is 1000′.

Connect to Job Link System Mobile App*
Send live weights directly to your device
Record and document refrigerant use
Click here to learn more about Job Link Free and Job Link Pro
Long range wireless
Flat top bumpers for larger cylinders
Max load 252 lbs (114 kg)
View units your way
Pounds and ounces
Pounds only
Ounces only
Kilograms and grams
Kilograms only
Grams only

*The earlier model wireless scale, SRS2C, does not work with Job Link System App, only the SRS3.

Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity
Over range: “OL” is displayed
Maximum load: 252 lbs (114 kg)
Auto power off: 30 minutes of inactivity (no change in weight or buttons pressed), (APO can be disabled)
Backlight: Blue, turns off in 60 seconds if no buttons are pressed
±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg)
±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
Resolution and Units: lb oz (0.25 oz), lb (0.1 lb), oz (0.1 oz), kg g (10 g), kg (0.1 kg), g (10 g)
Temperature coefficient: 0.1 x (specified accuracy) per °F
Wireless Range: 1000 feet (305 meters)
Radio Frequency: 2400 MHz
Battery Type:
Remote Display: 9V, NEDA 1604, JIS 006P, IEC 6F22
Platform: 6 x AA, NEDA 15A, JIS UM3, IEC LR6
Battery Life: is displayed when the battery voltage drops below the operating level.
Remote Display: 80 hours typical alkaline (without backlight)
Platform: 200 hours typical alkaline
Operating environment: 32°F to 122°F (0°C to 50°C) at <75% RH
Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Weight: 7.3 lbs (3.3 kg)

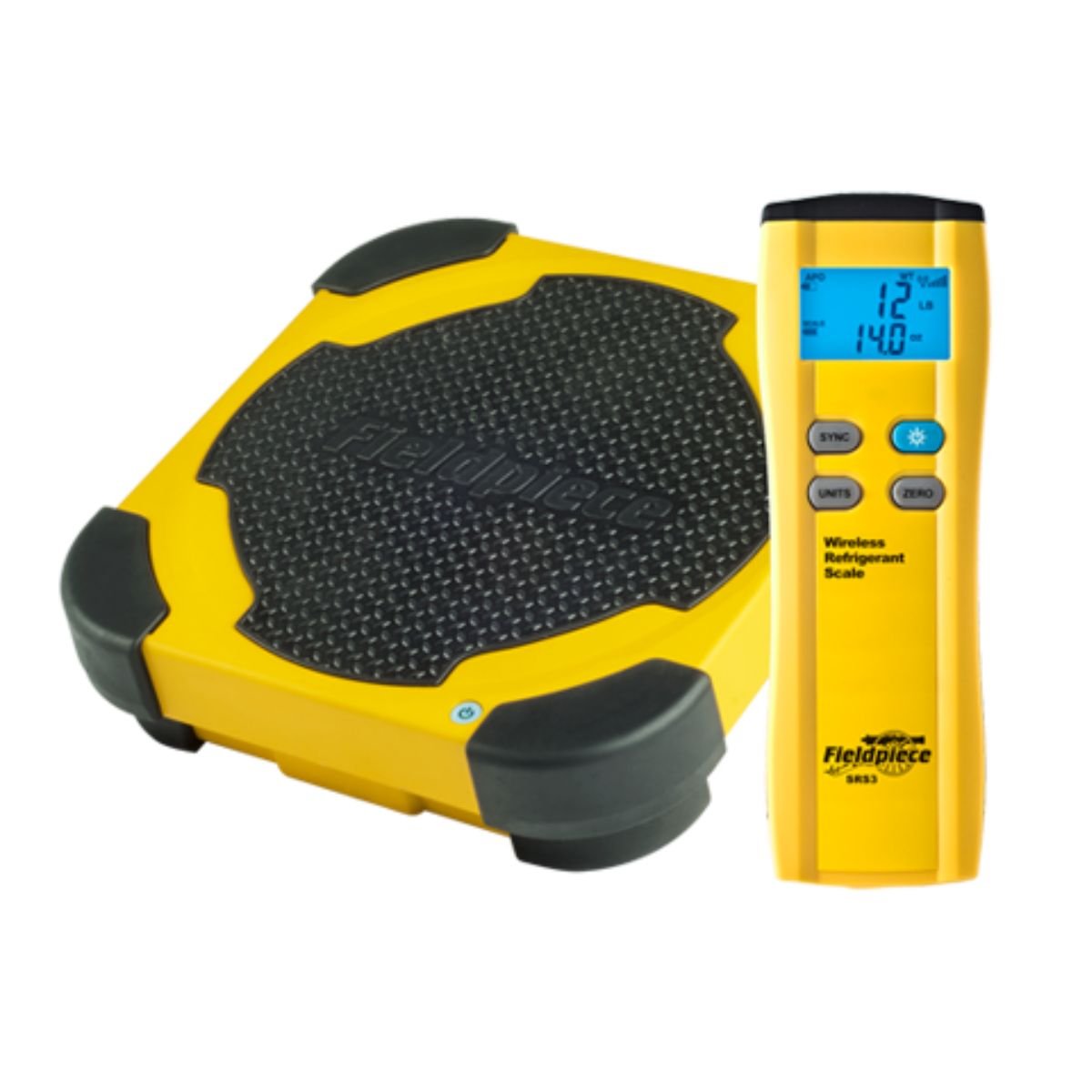

Wireless Refrigerant Scale – SRS3
Platform and Remote
Rugged Nylon Case with Carrying Strap
Standard 9-volt Battery (remote) Installed
6 x AA Batteries (platform) Installed
Operator’s Manual
