YELLOW JACKET

TEMP STRAP PSYCHROMETER

TEMP STRAP PSYCHROMETER

SKU: 67063

PRODUCT TYPE: Digital Psychrometers

Expedited Shipping

View full details

Features & Specifications

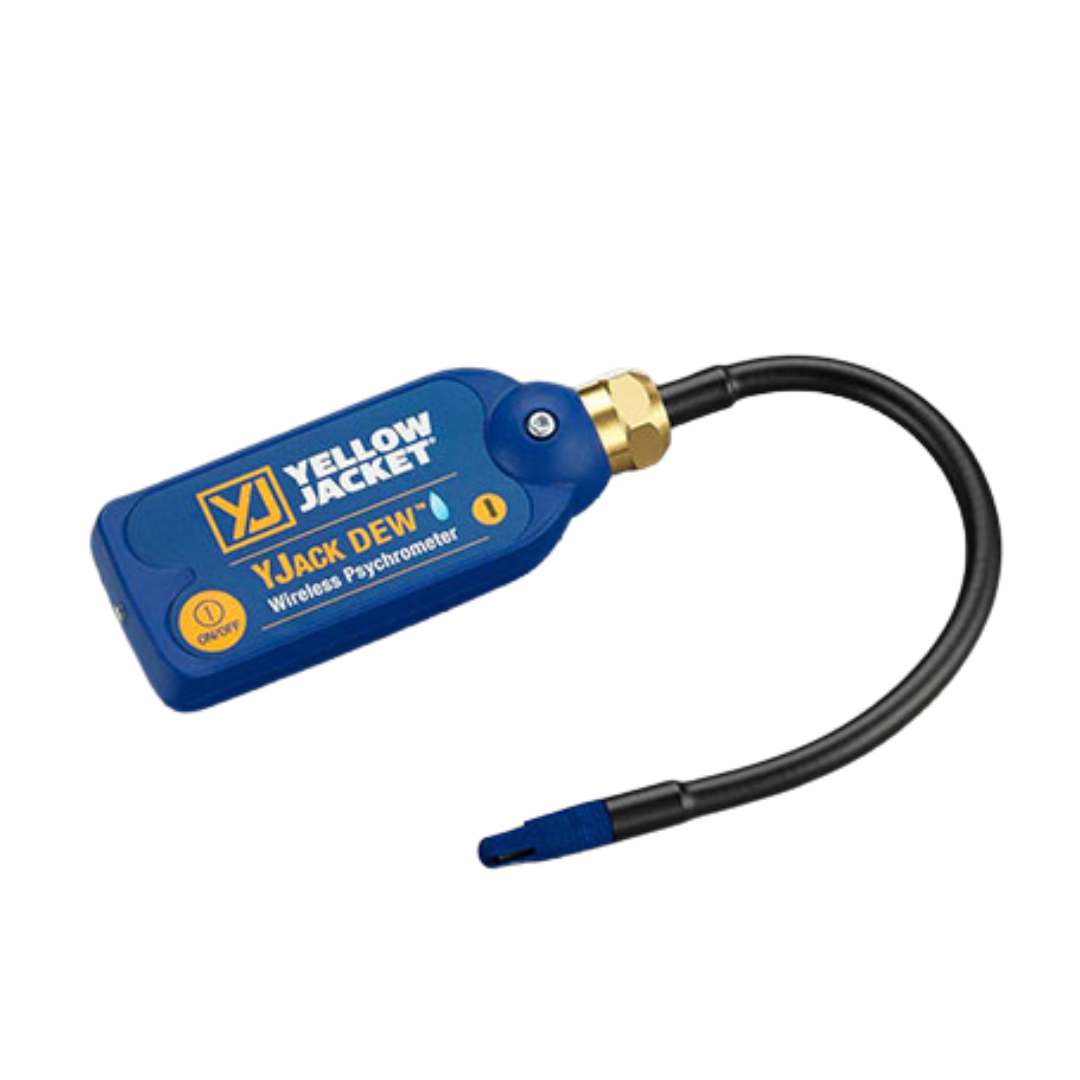

The Yellow Jacket 67063 YJACK Dew Psychrometer will easily measure temperature, humidity, wet bulb, dew point, and more in ambient air or in a ventilation duct using a Bluetooth signal. The YJACK Dew Psychrometer features an 8” flexible steel wand for optimal sensor positioning within the ventilation duct. The 67063 YJACK wireless probe has an optimized sensor housing designed for increased air exchange and better response time. The YJACK Dew Psychrometer is compatible with YJACK View App and P51-870 Titan devices and has a 400 ft line of sight signal range. The YJACK devices are the next evolution in creating an interconnected and efficient work environment allowing a service technician to work more quickly and precisely in the HVAC/R industry.

Key Features

Measures percent relative humidity, dry bulb, wet bulb, and dew point temperatures
Measures enthalpy change across evaporation coil
Features an 8” flexible steel probe for optimal sensor positioning
Optimized sensor housing designed for increased air exchange and better response time
400 ft line of sight signal range
High strength magnet for secure attachment
Bluetooth 4.2 compliant low energy radio

The Yellow Jacket 67063 Psychrometer uses a Low Energy Bluetooth (BLE) technology to communicate with iOS, Android, and the P51-870 Titan devices. The 67063 wireless YJACK Dew Psychrometer has a status indication LED next to the power button which provides feedback as to the device’s current mode of operation. During normal operation, the status indicator LED flashes every two seconds to indicate that a measurement has been transmitted via Bluetooth.

The YJACK 67063 flexible probe has a black vinyl cap protecting the sensing element. After removing the black cover, you can bend the flexible wand to the desired shape and place the sensing element within the ventilation system for the psychrometric measurements. The magnet on the bottom of the radio module can be attached to a metal surface for a secure connection. The YJACK Dew Psychrometer has an accuracy of +/- 2.0 %RH and a temperature measurement accuracy of +/- 0.2° C. The Yellow Jacket Dew Psychrometer has a relative humidity measurement range of 0-100% RH and temperature measurement range of -40° F to 257° F (-40° C to 125° C) and battery life of 1500 hours. The Yellow Jacket 67063 has an IP rating of IP52.

Made in the USA

What’s in the Box?

Yellow Jacket 67063 YJACK Dew Psychrometer
2 X AAA Batteries
