18K DUAL ZONE CONDENSING UNIT FOR MULTI-ZONE - UP TO 25 SEER2

Name: 18K DUAL ZONE CONDENSING UNIT FOR MULTI-ZONE - UP TO 25 SEER2
Brand: COMFORTSTAR
SKU: C32-MZ-2
Availability: InStock

18K DUAL ZONE CONDENSING UNIT FOR MULTI-ZONE - UP TO 25 SEER2

SKU: C32-MZ-2

BARCODE: C32-MZ-2

PRODUCT TYPE: Multizone Condensing Units

Product variants

Expedited Shipping

Quantity

Product Catalog

View full details

Refrigerant Type: R32

SEER2: Up to 25

EER2: 11.7

HSPF2-4: 10

HSPF2-5: 8.5

Max. Allowable Piping Length (ft): 131

Min. Allowable Piping Length (ft):

Max. Allowable Elevation Differences (ft): 49

Min. Power Supply Wire Size (AWG):

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded, unshielded, TC-ER Type

Piping Size: Liquid: (1/4) - Gas: (3/8)

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Outdoor Unit Net/Gross Weight (lbs.): 72.8/78.3

Features

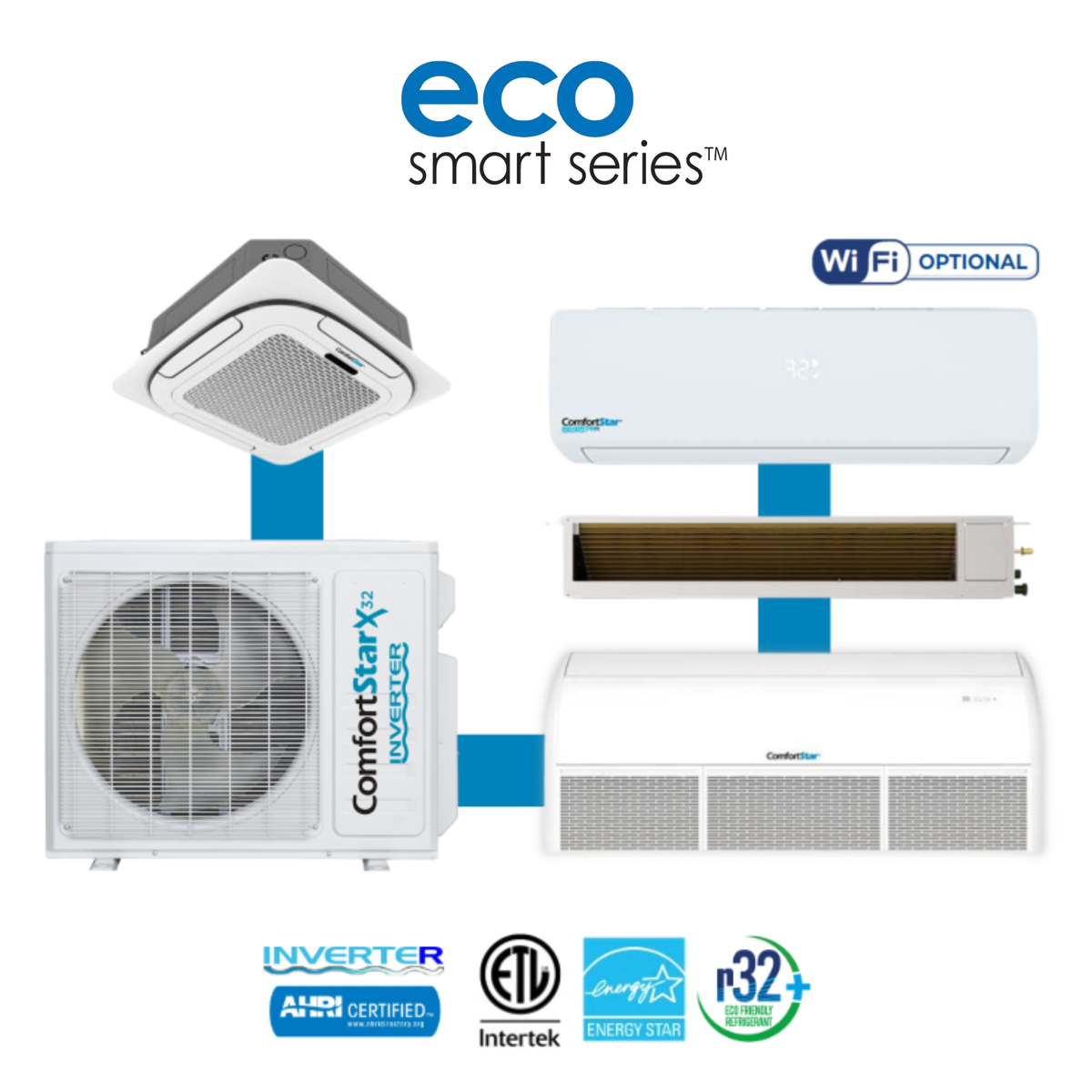

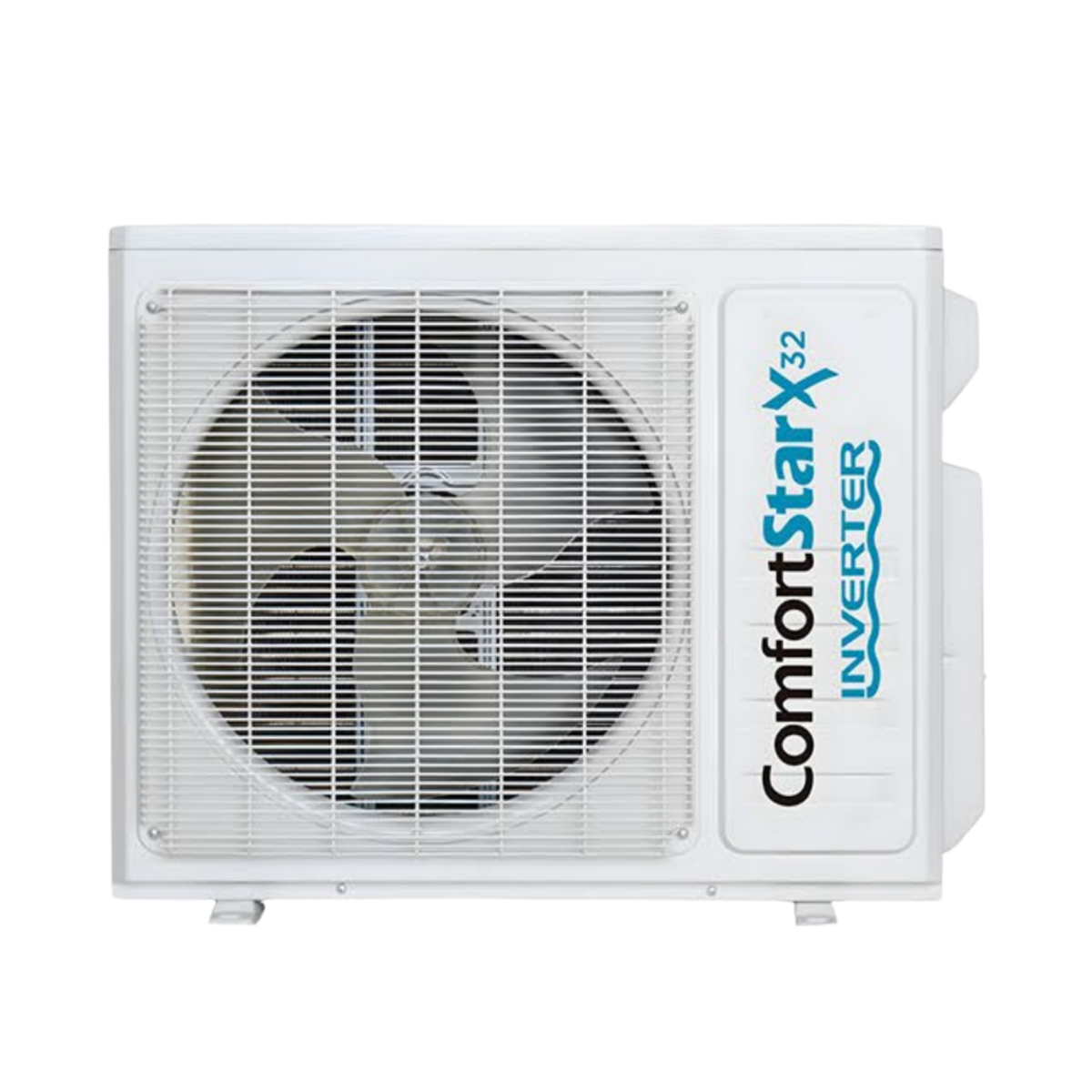

The ComfortStar C32-MZ-2 is an 18,000 BTU dual-zone outdoor heat pump designed to connect up to two compatible C32-MZ indoor units. It delivers flexible, room-by-room comfort with compatible high-wall, cassette, or ducted fan coil options, R32 refrigerant, 208/230V power, and up to 25 SEER2 efficiency when paired with non-ducted indoor units.

KEY FEATURES:
* More Than 20 System Combinations Available
* Connect Up to 5 Zones
* Individual Temperature Control by Zone
* Mix & Match 4 Indoor Unit Styles
* High-Efficiency Inverter Technology
* Low-Ambient Operation Down to -13°F
* Optional Wi-Fi Control
* Bypass Mode
* Interactive Display
* Self-Diagnosis Function

AVAILABLE INDOOR UNIT STYLES

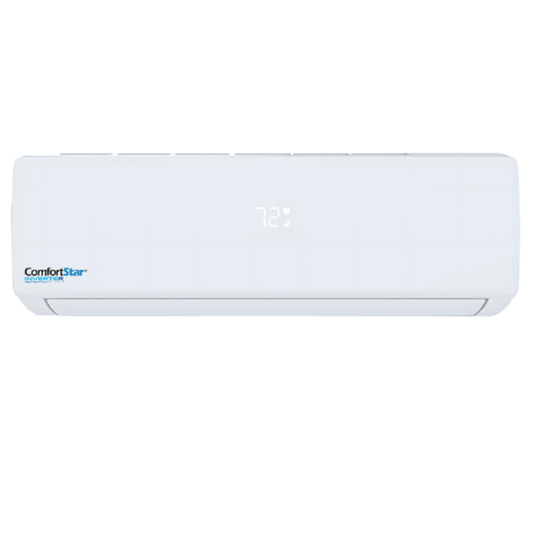

Choose the indoor unit that best fits each space and application: * High Wall Mount * Cassette * Floor / Ceiling
* Ducted Fan Coil
