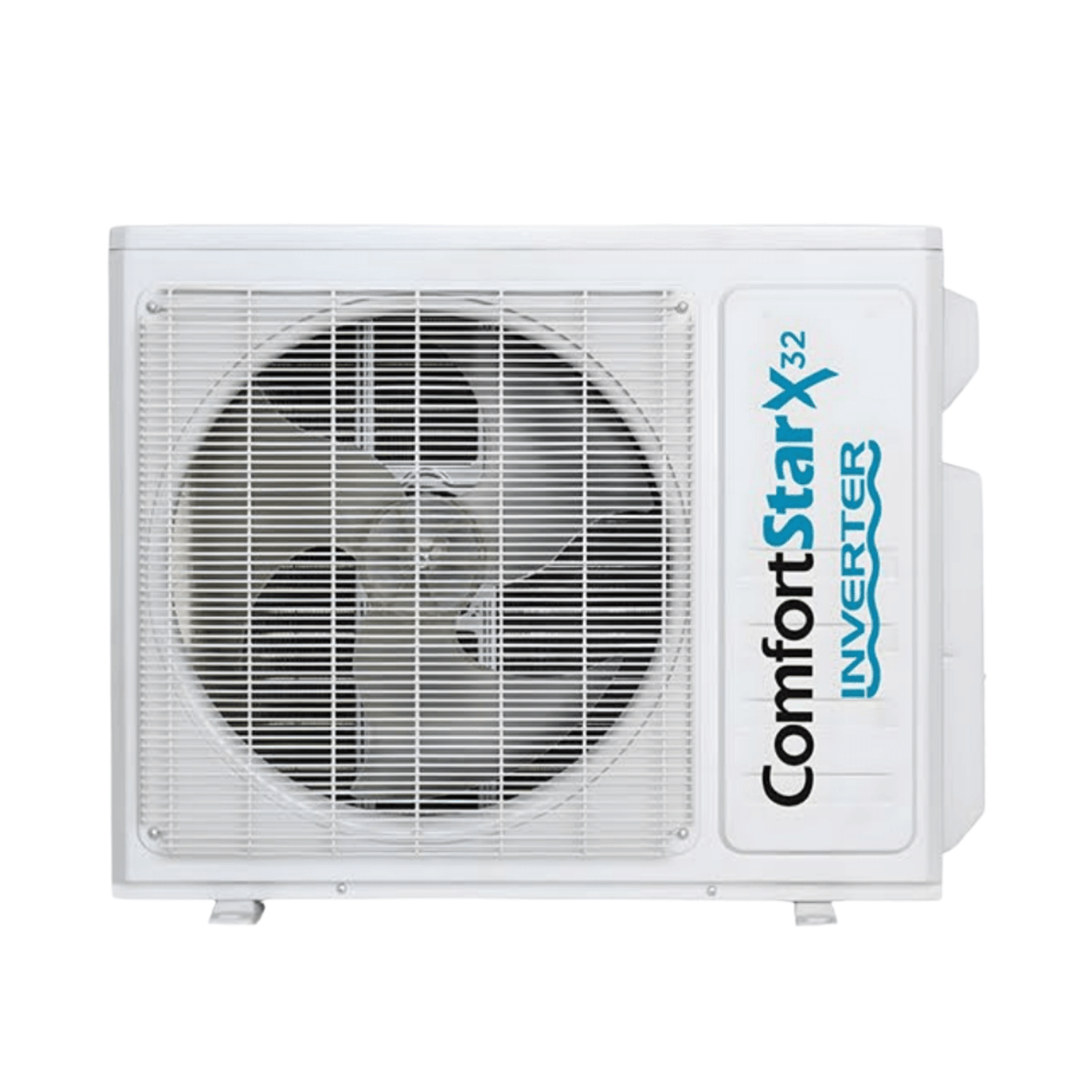

The ComfortStar C32-MZ-3 is a 27,000 BTU tri-zone outdoor heat pump that supports up to three compatible C32-MZ indoor units for personalized comfort across multiple rooms. Its flexible system design accommodates high-wall, cassette, ducted fan coil, and compatible floor/ceiling indoor units, using R32 refrigerant and 208/230V single-phase power. It delivers up to 22 SEER2 efficiency with non-ducted combinations.

KEY FEATURES
* More Than 20 System Combinations Available
* Connect Up to 5 Zones
* Individual Temperature Control by Zone
* Mix & Match 4 Indoor Unit Styles
* High-Efficiency Inverter Technology
* Low-Ambient Operation Down to -13°F
* Optional Wi-Fi Control
* Bypass Mode
* Interactive Display
* Self-Diagnosis Function

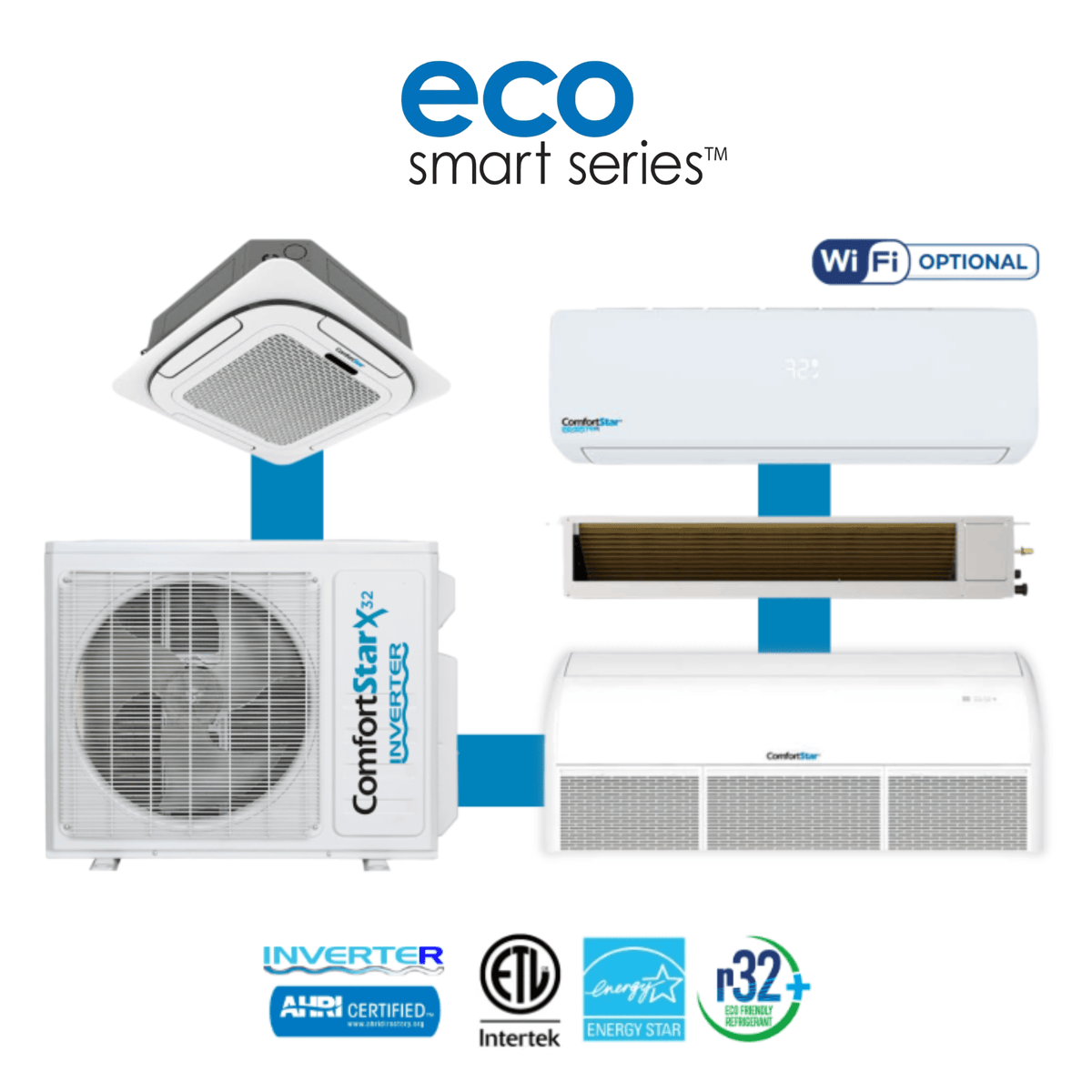

AVAILABLE INDOOR UNIT STYLES
Choose the indoor unit that best fits each space and application: * High Wall Mount * Cassette * Floor / Ceiling
* Ducted Fan Coil

Unit Size - Inches (W x D x H): 35.94x14.7x26.34

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1647

Tonnage: 2.25

dB(A) Noise Level (Hi / Mi / Lo): 61

Heat Capacity (BTU): 28000

Cooling Capacity (BTU): 28000

Placement: Dual Zone Outdoor Unit

Breaker Size (A): 25

Factory Refrigerant Charge (ft): 74

Refrigerant Adjustment Factor (oz. per ft): 0.11

Drain Pipe Size (in): refer IDU
