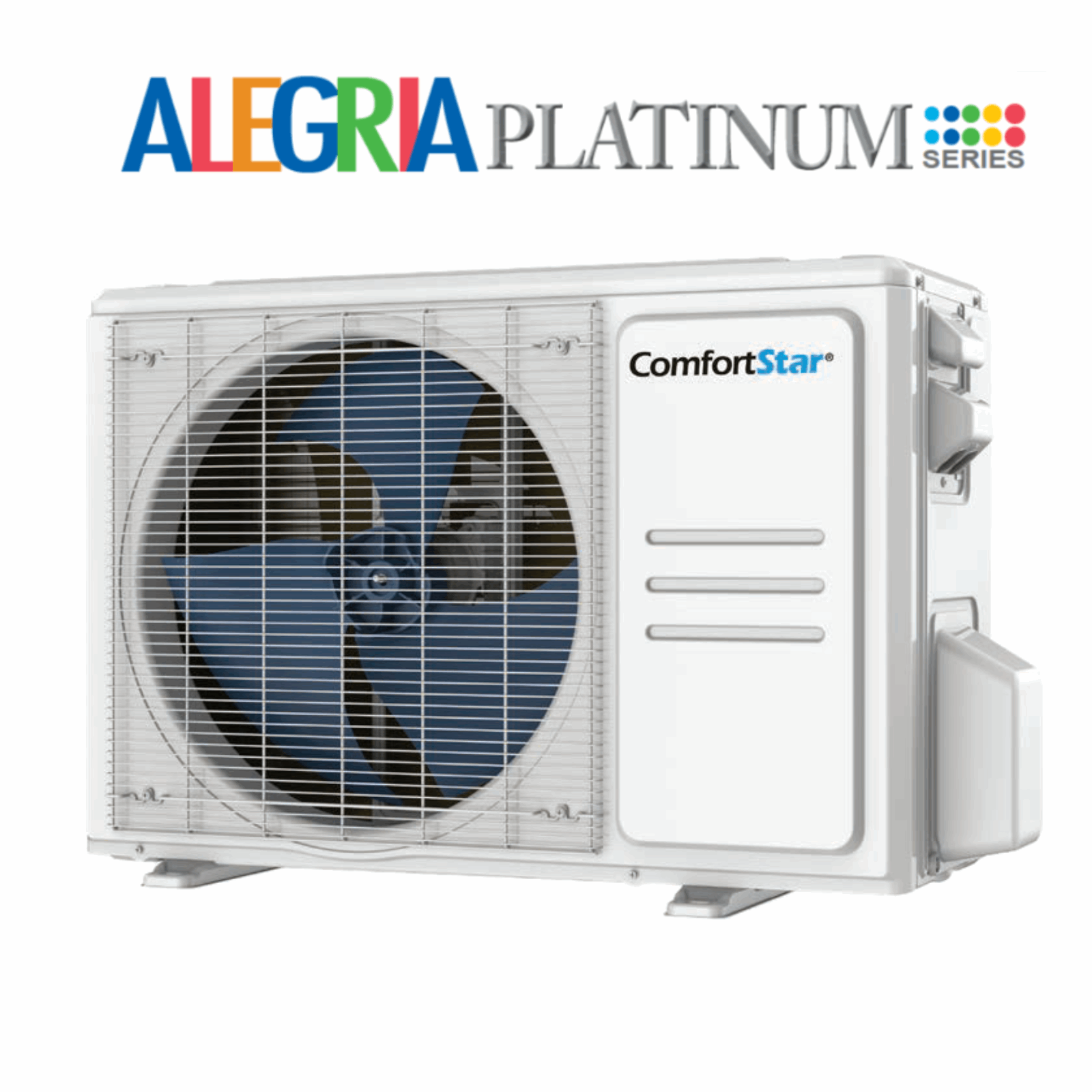

Flex-mount Multi-zone Heat Pump Outdoor Units 9,000 - 18,000 Btu/h.
• Inverter Technology • Factory Pre-Charge (25 ft.) • Slow Ambient Operation to -13°F • Self-Diagnostics • Energy Efficient • Simple installation. • All indoor units can be controlled individually.

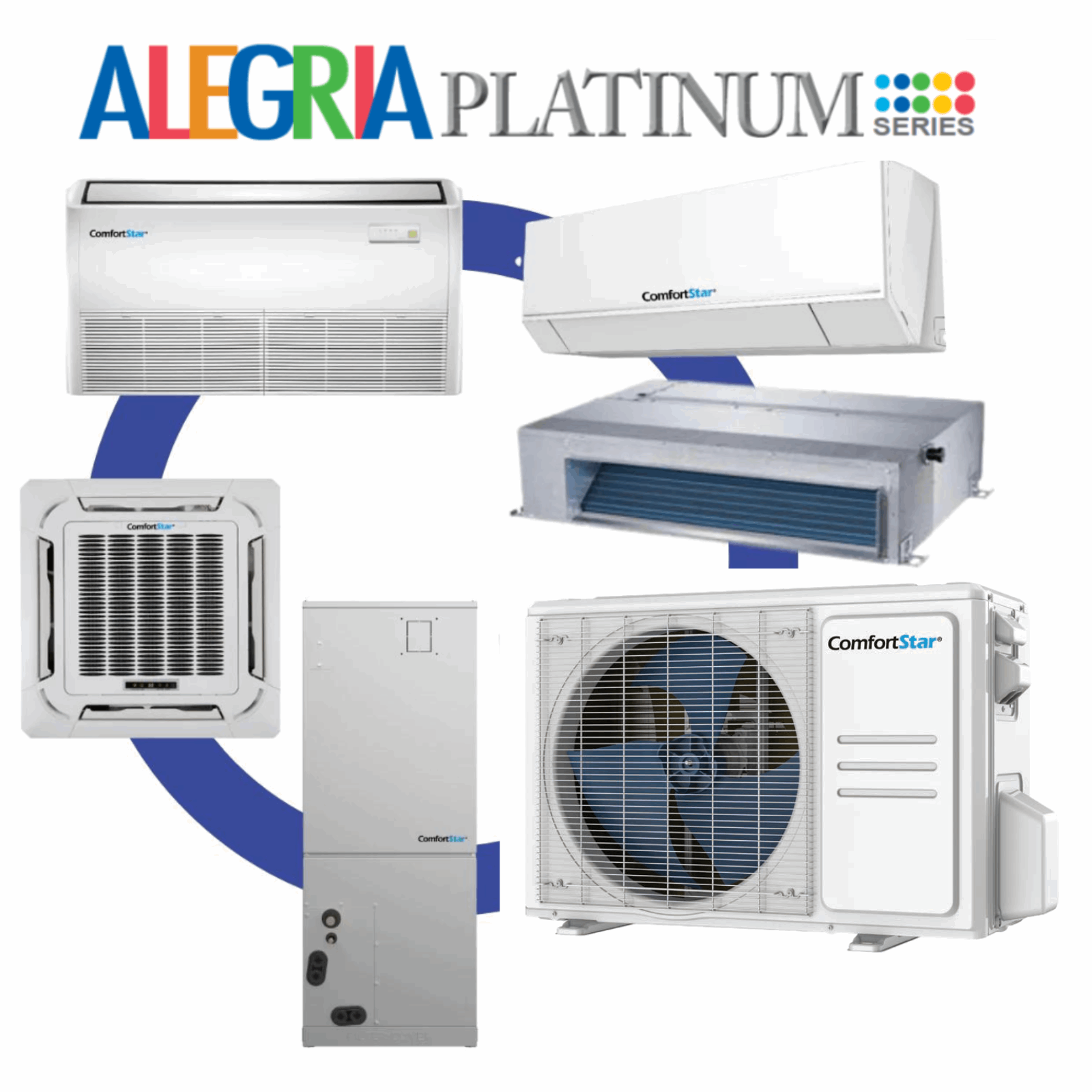

Available Indoor Units:
- High Wall Mount
- Cassette
- Floor and 2 Indoor Ceiling
- Fan Coil
- AHU

Unit Size - Inches (W x D x H): 37.24x16.14x31.89

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 2129.41

Tonnage: 2.25

dB(A) Noise Level (Hi / Mi / Lo): 61

Heat Capacity (BTU): 28000

Cooling Capacity (BTU): 28000

Placement: Tri Zone Outdoor Unit

Breaker Size (A): 35

Factory Refrigerant Charge (ft): 25*3

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): refer IDU
