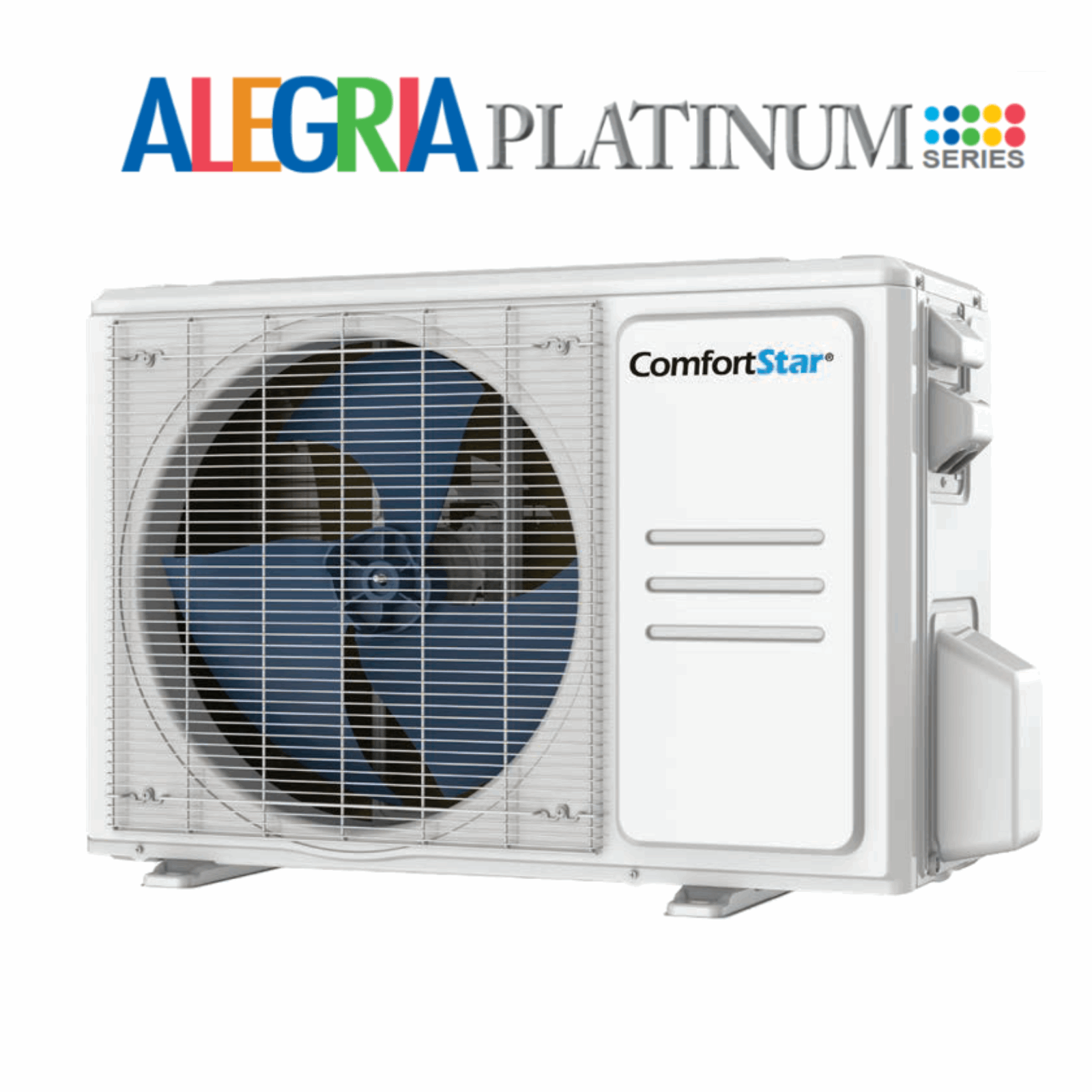

36K QUAD ZONE OUTDOOR CONDENSING UNIT - DUCTLESS SYSTEM 23.9 SEER2

36K QUAD ZONE OUTDOOR CONDENSING UNIT - DUCTLESS SYSTEM 23.9 SEER2

36K QUAD ZONE OUTDOOR CONDENSING UNIT - DUCTLESS SYSTEM 23.9 SEER2

36K QUAD ZONE OUTDOOR CONDENSING UNIT - DUCTLESS SYSTEM 23.9 SEER2

36K QUAD ZONE OUTDOOR CONDENSING UNIT - DUCTLESS SYSTEM 23.9 SEER2

36K QUAD ZONE OUTDOOR CONDENSING UNIT - DUCTLESS SYSTEM 23.9 SEER2

SKU: CMZ-48-4Z

PRODUCT TYPE: Multizone Condensing Units

Product variants

Tax included.

Expedited Shipping

System Gross Weight: 181.44 (lbs.)

Quantity

Installation Manual

CMZ-48-4Z Spare Parts

CMZ-48-4Z Multi Zone Condenser Submittal

View full details

SEER2: 23.9

EER2: 11.7

HSPF2-4: 9.3

HSPF2-5: 7.1

Max. Allowable Piping Length (ft): 98 for 1 IDU 197 for sum up

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 33 for ODU higher than IDU, 49 for ODU lower than IDU, 33 between IDU and IDU

Min. Power Supply Wire Size (AWG): 10*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: (1/4"-3/8")*3 & (1/4"-1/2")*1

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Outdoor Unit Net/Gross Weight (lbs.): 169.09/181.44

Features

Flex-mount Multi-zone Heat Pump Outdoor Units 9,000 - 24,000 Btu/h.
• Inverter Technology • Factory Pre-Charge (25 ft.) • Ambient Operation to -13°F • Self-Diagnostics • Energy Efficient • Simple installation.

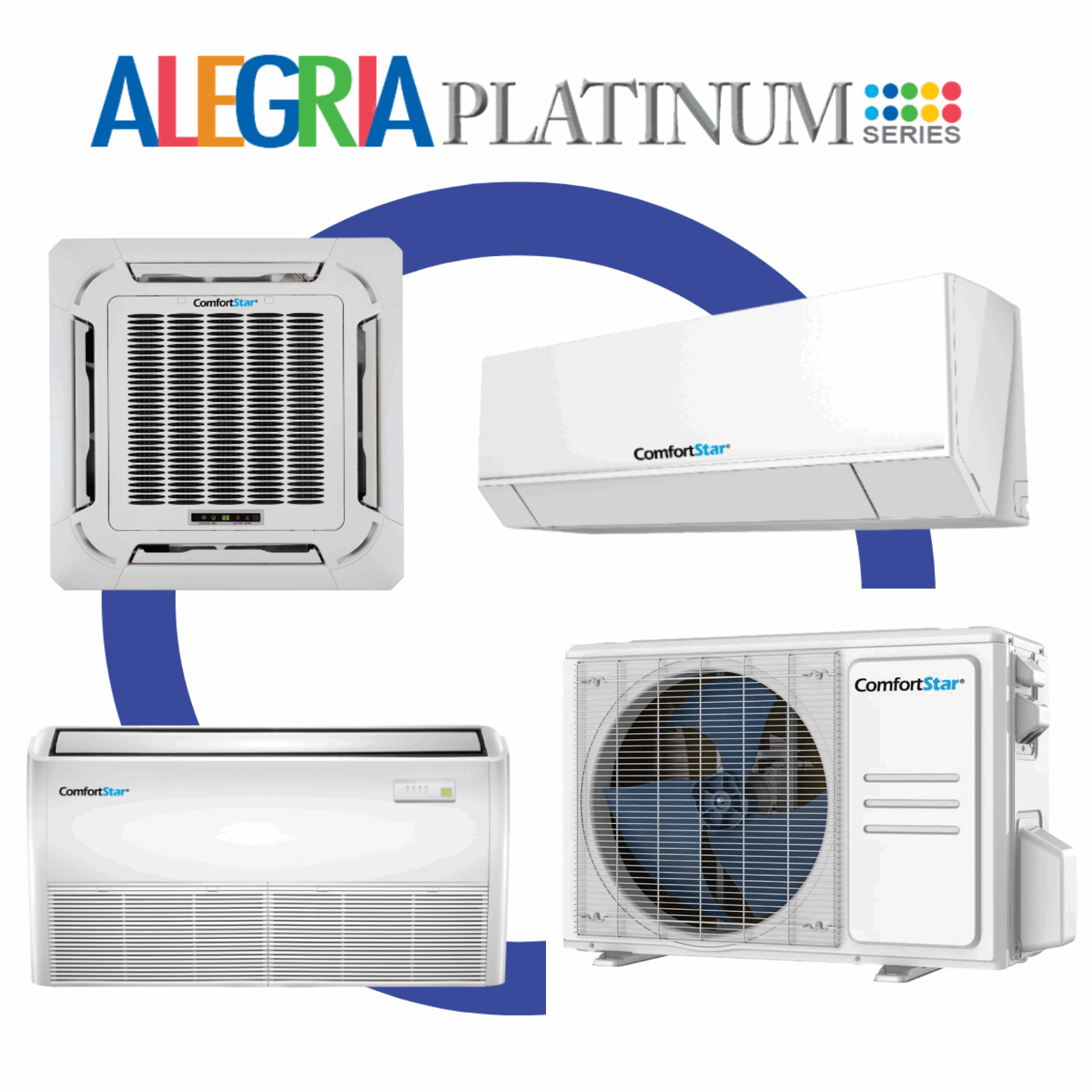

Available Indoor Units:
- High Wall Mount
- Cassette
- Floor and 2 Indoor Ceiling

Specifications

Unit Size - Inches (W x D x H):

37.24x16.14x31.89

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo):

2147.06

Tonnage: 3

dB(A) Noise Level (Hi / Mi / Lo):

63

Heat Capacity (BTU): 37000

Cooling Capacity (BTU): 36000

Placement: Quad Zone Outdoor Unit

Breaker Size (A): 45.0

Factory Refrigerant Charge (ft): 25*4

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): refer IDU

Indoor Units

18K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

18K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

18K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TPA-18

BRAND: COMFORTSTAR

24K TIP SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

24K TIP SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

24K TIP SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TIP-24

BRAND: COMFORTSTAR

18K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

18K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

18K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

SKU: FPA-18

BRAND: COMFORTSTAR

24K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

24K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

24K FPA FLOOR CEILING UNIT - FOR MULTI-ZONE

SKU: FPA-24

BRAND: COMFORTSTAR

9K CHF HIGHWALL UNIT - FOR MULTI-ZONE

9K CHF HIGHWALL UNIT - FOR MULTI-ZONE

9K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF09CD(I)

BRAND: COMFORTSTAR

12K CHF HIGHWALL UNIT - FOR MULTI-ZONE

12K CHF HIGHWALL UNIT - FOR MULTI-ZONE

12K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF12CD(I)

BRAND: COMFORTSTAR

18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

18K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF18CD(I)

BRAND: COMFORTSTAR

24K CHF HIGHWALL UNIT - FOR MULTI-ZONE

24K CHF HIGHWALL UNIT - FOR MULTI-ZONE

24K CHF HIGHWALL UNIT - FOR MULTI-ZONE

SKU: CHF24CD(I)

BRAND: COMFORTSTAR

9K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

9K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

9K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TPA-09

BRAND: COMFORTSTAR

12K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

12K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

12K TPA SERIES - INDOOR CASSETTE - FOR MULTI-ZONE

SKU: TPA-12

BRAND: COMFORTSTAR
